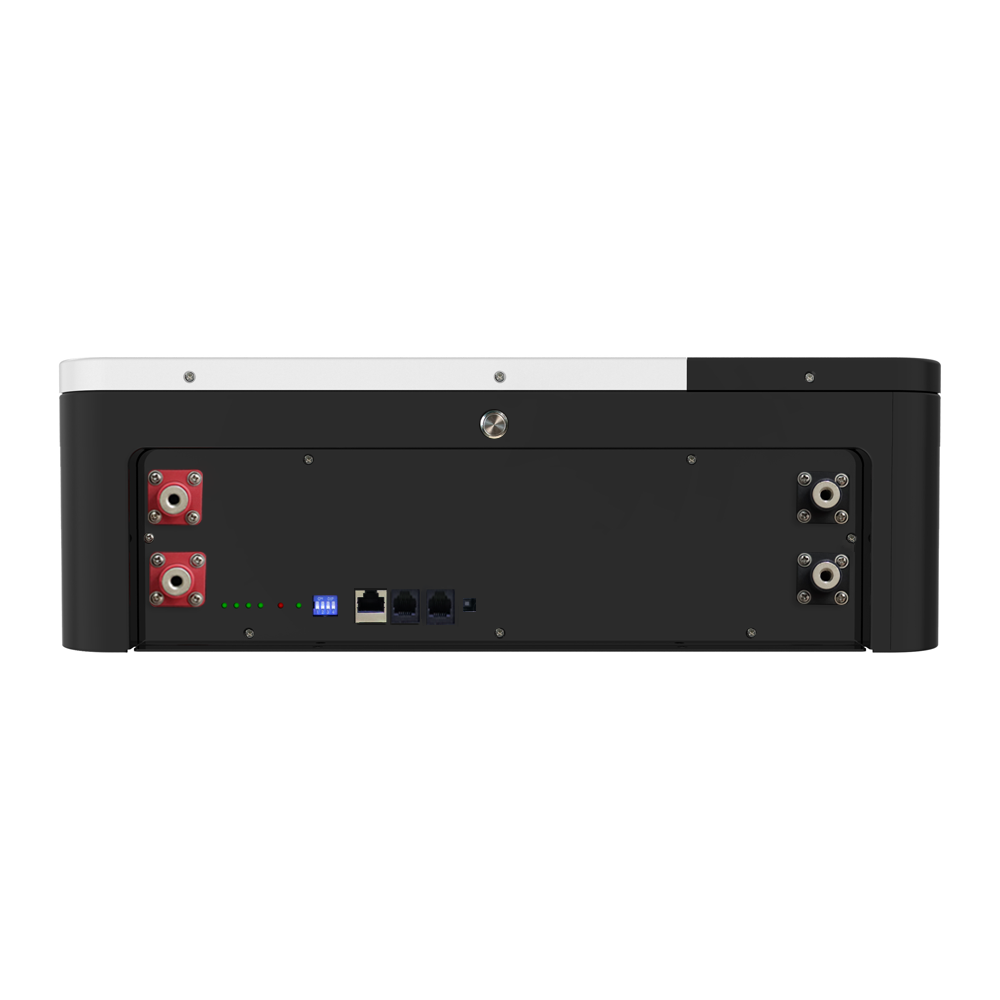

Wall-Mounted Energy Storage Battery
group nameWall-Mounted Energy Storage Battery
-
Min Order1 piece
brand nameA-sun & Xianke
model51.2V M16S100-200BL-V
payment methodT/T, L/C, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 20 Apr 2026 16:08:28 GMT
Packging & Delivery
Min Order1 piece
Briefing
from front-end processing for material, test for semi-finished product and aging test for finished product and other processes.
PCHNE has a factory of 6,000+m² in Guangdong province, and an industrial park of 40,000+m² in Anhui province. It has the
ability to produce residential energy storage batteries, commercial and industrial energy storage batteries and lithium-ion batteries for electric forklifts, golf cart, AGV and various special specifications and models.
Detailed
Standby power
01
01 BATTERY FEATURES
Original Grade A lithium iron phosphate battery cell has high safety and
reliability
The charging and discharging efficiency is high, and the
number of cycles is more than 6000 times Compatible with most
inverters on the market
Supporting RS485 and CAN
communication
Modular design, can be expanded at
any time to increase the energy of the
system
Supporting up to 15 batteries in parallel
ON/OFF switch control output
The LCD display monitors the
operating status in real time
|
|---|
|
|---|
|
Product Model |
M16S100BL-V |
M16S200BL-V |
|---|---|---|
|
Cells In Series |
16S |
16S |
|
Rated Energy (KWh) |
5.12 |
10.24 |
|
Rated Voltage (V) |
51.2 |
51.2 |
|
Charging Voltage (V) |
58.4 |
58.4 |
|
Discharge Cut-off Voltage (V) |
42 |
42 |
|
Standard Charge Current (A) |
20 |
40 |
|
Maximum Charging Current (A) |
100 |
100 |
|
Maximum Discharge Current (A) |
100 |
100 |
|
Cycle Life |
≥ 6000 times @ 80% DOD, 25 °C |
≥ 6000 times @ 80% DOD, 25 °C |
|---|---|---|
|
Methods Of Communication |
RS232/RS485/CAN |
RS232/RS485/CAN |
|
Charging Temperature |
0~60℃ |
0~60℃ |
|
Discharge Temperature |
-10~65℃ |
-10~65℃ |
|
How It Is Displayed |
LCD display |
LCD display |
|
IP Protection |
IP 21 |
IP 21 |
|
Conventional |
||
|
Product Dimensions (L×W×Hmm) |
440×186×560 |
450×206×670 |
|
Net Weight (Kg) |
44 |
87 |
|
Packing Dimensions (L×W×Hmm) |
512×255×632 |
525×410×755 |
|
Gross Weight (Kg) |
50 |
104 |
02 FIELDS OF APPLICATION
Wall-Mounted Energy Storage LiFePO4 Battery, and the main use areas are as follows:
Standby power Home
energy storage Machine shop Solar storage
