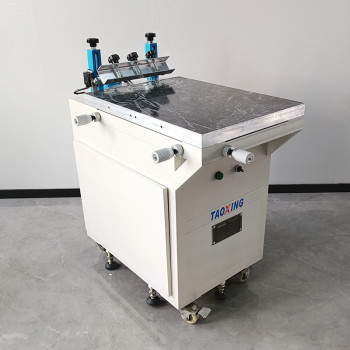

Manual Flat Screen Printing Machine TX-XQ5070 | Small Screen Printer Manufacturer
group nameManual Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-XQ5070
payment methodT/T
-
update timeFri, 05 Dec 2025 20:02:01 GMT
Paramtents
Max printing area ≤400×600mm
Table size 500x700mm
Max screen frame 600x900mm
Printing thickness 0-25 mm
Worktable Displacement ±5mm
Power Supply AC220V/400W
Machine Dimension L850*W600*H1050mm
Machine Weight 120KG
Packging & Delivery
Size90cm x70cm x119cm
Weight120kg / set
Min Order1 set
Briefing
The manual screen printing machine has the characteristics of small footprint, labor saving, and accurate overprinting.
Detailed
Introduction of Manual screen printing machine table
The suction manual screen printing machine is suitable for printing PVC, PET film, glass, plates, metal and other materials. It has the advantages of small footprints, labor saving and accurate overprinting. The screen plate can be fine-tuned front and back, up and down, left and right, and the positioning during overprinting is accurate and convenient.
Made of imported stainless steel and alloy steel, the parts are made of high-grade electrostatic spraying and high-grade electroplating technology.The stainless steel tabletop is equipped with an air pump, suitable for various flat color screen printing, with strong suction, convenient operation and accurate positioning, and can be freely adjusted up and down, left and right, front and back. It is the most ideal printing equipment for small and medium-sized electronic factories and processing plants.
Main performance
① Positioning method: three-side positioning or hole positioning.
② Adjustment method: manual fine adjustment.
③ Adjustment direction: X direction, Y direction, Z direction.
④ The screen clamp that fixes the screen frame can be freely extended and retracted, suitable for large and small screen printing, one machine for multiple uses.
⑤ The screen clamp head can be raised and lowered, suitable for substrates of different thicknesses.
⑥ Five adjustment devices, fast and accurate adjustment of the plate.
⑦ Equipped with a safety automatic protection device.
Specification of Manual flat screen printing machine
Model | TX-XQ5070 | |||||||
Table Size | 500x700mm | |||||||
Substrate Thickness | 0-25 mm | |||||||
Max Printing Area | 450×650mm | |||||||
Min Printing Area | 100x150mm | |||||||
Productivity | 400 pcs/h | |||||||
Max Frame O/D Size | 600x800mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V/400W | |||||||
Air Exhaustion | 15L/min | |||||||
Machine Dimension | L850*W60*H1050mm | |||||||
Machine Weight | 120kg | |||||||
Machine image
Printing samples of Manual flat screen printing machine
Plastic bag
Glass Panel
Metal nameplate
