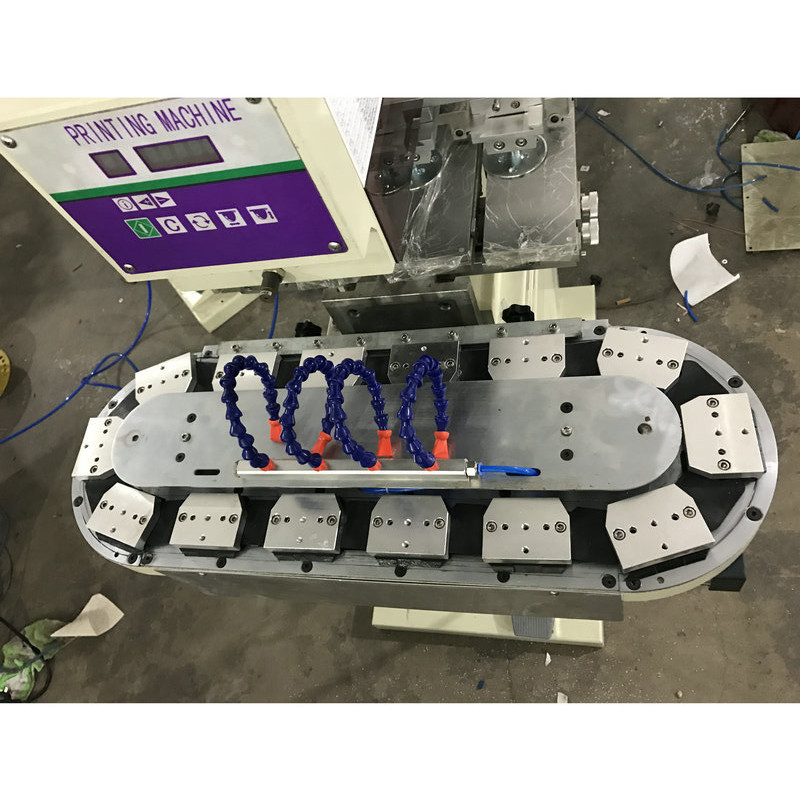

4 Colors Pad Printer Tampon Printing Machine With Conveyor For Kid's Toy Printing
group nameSemi-Automatic Pad Printer
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTXD-300-90
payment methodWestern Union, T/T
-
update timeSat, 18 Apr 2026 22:20:29 GMT
Paramtents
Operation Semi-Automatic
No. of Color 4Colors
Plate size 100*300mm
Ink cup Dia 90mm
Power 220V/50Hz /150W
Max Printing Speed 1200pcs/hr
Air Pressure 6 Bar
Machine Dimension 100*110*135cm
Machine Weight 180kg
Packging & Delivery
Weight180kg / set
Min Order1 set
Briefing
Sealed Ink Cup Pad Printer with the latest nano-technology oil cup made of tungsten steel cutting ring, the surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction that this section of the machine than the traditional oil pan machines more environmentally friendly and more fuel
efficient.
efficient.
Detailed
Application
4 colors pad printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printed materials For example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface of the product arc printing. Simple operation, easy maintenance and repair, lower prices for most used by customers
Product Parameters
Operation: Semi-Automatic
No. of Color: 4Colors
Plate size: 100*300mm
Ink cup Dia: 90mm
Max Printing Speed: 1200pcs/hr
Power Voltage: 220V/50Hz
Power Consumption: 150W
Air Pressure：6 Bar
Machine Dimension：100*110*135cm
Machine Weight：180kg
Main Features
·Advanced computerized system control
·pneumatically driven ，can adjust the movement speed of each part
·Built-in LED digital counter
·Light-weight, strong machine frame
·Ink cup, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink cup and pads are easily installed and dismounted for quick cleaning
·The ink cup promote by cylinder ,can be slide more smoothly
Printing sample
