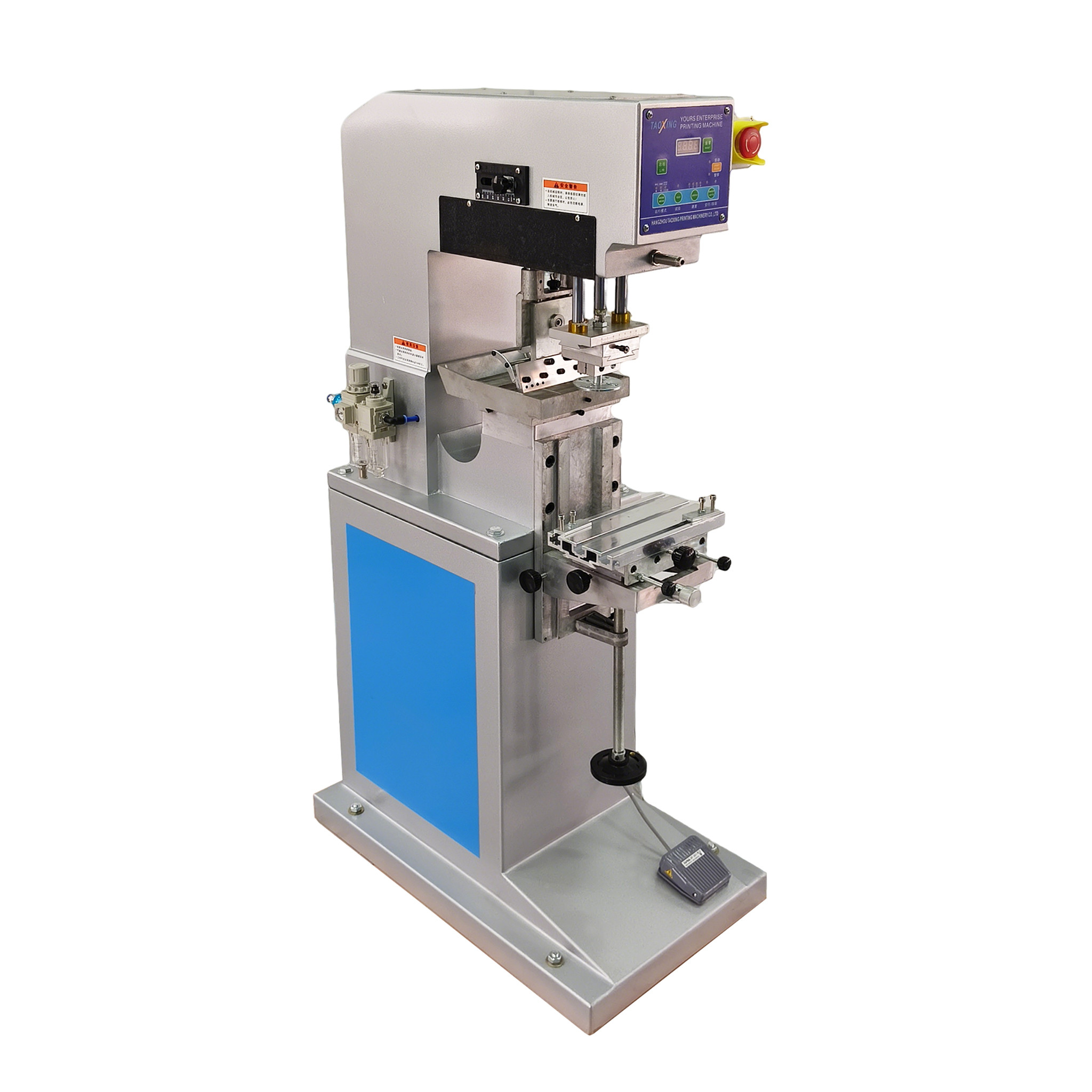

New Semi-automatic Pneumatic Single Color Pad Printer TXD-125-100 Equipped With Emergency Stop Button

  • group nameSemi-Automatic Pad Printer

  • Min Order1 set

  • brand nameTAOXING Screen Printing Machines Manufacturer

  • modelTXD-125-100

  • payment methodWestern Union, T/T

  • update timeSat, 18 Apr 2026 23:49:35 GMT

Paramtents

  • Steel Plate Size 150*100mm

  • Max Printing Size 110*80mm

  • Max printing Speed 1500 pcs /hour

  • Power Supply 220V /110V /50HZ /50W

  • Air source pressure 5 Bar

  • Machine Dimensions L640*W380 *H1240mm

  • Net Weight 90KG

Packging & Delivery

  • Size70cm x45cm x130cm

  • Weight90kg / set

  • Min Order1 set

Briefing

This pneumatic single solor sad printer is suitable for precision printing on flat, curved, and irregular surfaces with small printing areas on materials such as metal, glass, ceramics, plastics, wood, and leather.

Detailed

 Introduction of Single color  Pad Printer

Application
Suitable for precision printing on flat, curved, and irregular surfaces with small printing areas on materials such as metal, glass, ceramics, plastics, wood, and leather.
Product Parameters
Main Features

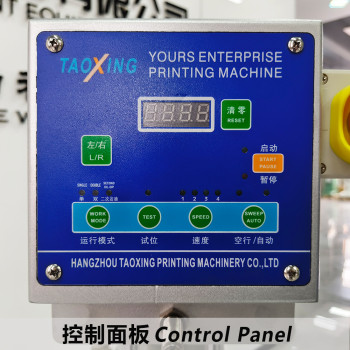

① The operation of each function is controlled by a microcomputer, making it simple and convenient to use.
② It has a built-in four-digit automatic counter.
③ The machine frame is made of high-quality aluminum alloy, which is lightweight and sturdy.
④ The ink roller is easy to install, disassemble, and clean.
⑤ Independent adjustment of the up and down stroke and speed of the rubber head.
⑥ The automatically balancing scraper scrapes ink cleanly and efficiently.
⑦ You can apply ink twice and then transfer it once to obtain a larger amount of printing ink.
⑧ You can leave blank lines before and after the ink to prevent the ink from drying out when you pause.
Details
Printing sample
TXD-125-100 Single Color Pad Printer
