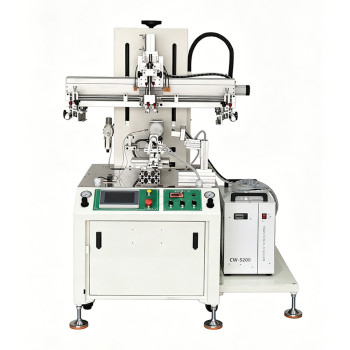

Servo Curved Surface Screen Printing and Curing Integrated Machine TX-500SF-LED For Glass Bottles and Cups
group nameCurved Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-500SF-LED
payment methodT/T
-
update timeWed, 13 May 2026 17:28:27 GMT
Paramtents
Max printing area 200*450mm
Substrate Diameter ≤120mm
Printing Speed 800-1000pcs/hour
Max screen frame 300*600mm
Max Printing length 300mm
Machine Weight 266kg
Power Supply 380V,50/60/HZ/2KW
Machine Dimension L1220*W1100 *H1610mm
Air pressure 4-6kgf/cm2
Application Areas Cups, bottles, cans, metal pipes,
Packging & Delivery
Size120cm x130cm x170cm
Weight280kg / set
Min Order1 set
Briefing
This TX-500SF-LED servo curved surface screen printing and curing all-in-one machine is suitable for precise positioning and color printing of surface patterns and text on various round products such as plastic bottles, glass bottles, and metal cans
Detailed
Introduction TX-500SF-LED Servo Curved Surface Screen Printing and Curing Integrated Machine
This TX-500SF-LED servo curved surface screen printing and curing all-in-one machine is suitable for precise positioning and color printing of surface patterns and text on various round products such as plastic bottles, glass bottles, and metal cans .
Main parameters
Model : TX-500SF-LED
Max Printing area: 200*450mm
Air pressure: 5 bar
Rated voltage/Power: 380V/50HZ/2000W
Max printing speed: 800-1000（PCS/H）
Max screen frame: 300*600mm
printing size: Φ150*200mm
Printing length: ≤300mm
Dimension Size : L1220*W1100 *H1610mm
Gross weight : 266 KG
Main performance
① The PLC controls all functions, with a high degree of automation, simple and convenient operation , and a built-in four-digit automatic counter.
② Adding an LED curing lamp can quickly cure the printed pattern.
③ It automatically performs ink scraping, ink return, and worktable lifting, which simplifies operation and ensures stable printing quality.
④ The printing stroke and speed are adjustable to meet different printing requirements.
⑤ The automatically balancing scraper ensures even printing pressure.
⑥ Both the worktable and the screen frame can be finely adjusted forward and backward, left and right, and up and down, resulting in high printing accuracy and convenient and quick adjustment.
⑦ The scraper section can be lifted independently for easy and convenient replacement and cleaning of the mesh frame.
Details pictutre
Printing samples
