TX-SH1528LED Screen Plate Exposure and Drying Integrated Machine
group nameExposure Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-SH1528LED
payment methodT/T
-
update timeTue, 29 Sep 2026 15:59:35 GMT
Paramtents
Voltage 220V/ 6.0KW/ 50HZ
Weight 580 KG
Dimension 2800*1550*980mm
Model TX-SH1528LED
Exposure stage size 1500*2800mm
Maximum exposure area 1300*2600mm
Maximum screen frame size 1400*2700mm
Machine Function LED exposure + hot air drying
Packging & Delivery
Size280cm x155cm x980cm
Weight680kg / set
Min Order1 set
Briefing
The plate exposure machine is a key equipment for plate making. It can precisely expose to ensure the quality of the printing plate.
It is easy to operate and has high efficiency.
It is easy to operate and has high efficiency.
Detailed
Scope of application
This LED exposure and drying integrated machine is mainly used for the exposure, drying, and development of screen printing patterns .
Key features
1. This LED exposure machine boasts advantages such as uniform light intensity, stable light control, stable light source wavelength, and high vacuum level, making it suitable for high-precision line, dot, and high-density screen exposure.
2. The screen printing exposure machine mainly consists of an LED module and controller. The light source is LED LEDs , offering high luminous efficiency and low energy consumption .
3. The screen printing exposure machine uses an aluminum reflective film , characterized by high reflectivity.
4. It allows for setting the vacuum time and freely adjusting the exposure time. Manual operation is possible, and the machine is simple and easy to understand, suitable for high- quality screen exposure in screen printing, printed circuit boards, etc. The screen printing exposure machine is competitively priced and of top quality.
5. This printing exposure machine uses imported high-quality rubber blanket material, greatly enhancing vacuum quality and significantly improving exposure quality.
6. It uses imported Taiwanese rubber blanket, which is soft, elastic, durable, and offers excellent sealing and adhesion.
7. After the vacuum suction process is completed, the exposure process begins, and the vacuum suction and exposure processes are completed in one integrated process.
8. The exposure glass is made of 10mm thick float tempered glass, which has good light transmission and is flat to ensure exposure accuracy.
9. The machine has a built-in 4-layer screen drying area at the bottom, with an adjustable temperature from room temperature to 50℃, saving space.
Main parameters
| Machine Model | TX- SH1528LED | Exposure stage size | 1500*2800mm |
| Maximum exposure area | 1300*2600mm | Maximum sreen frame size | 1400*2700mm |
Exposure power | 6.0KW | Machine Function | LED exposure + hot air drying |
| Voltage | 220V / 50HZ | Equipment size | 2800*1550*980mm |

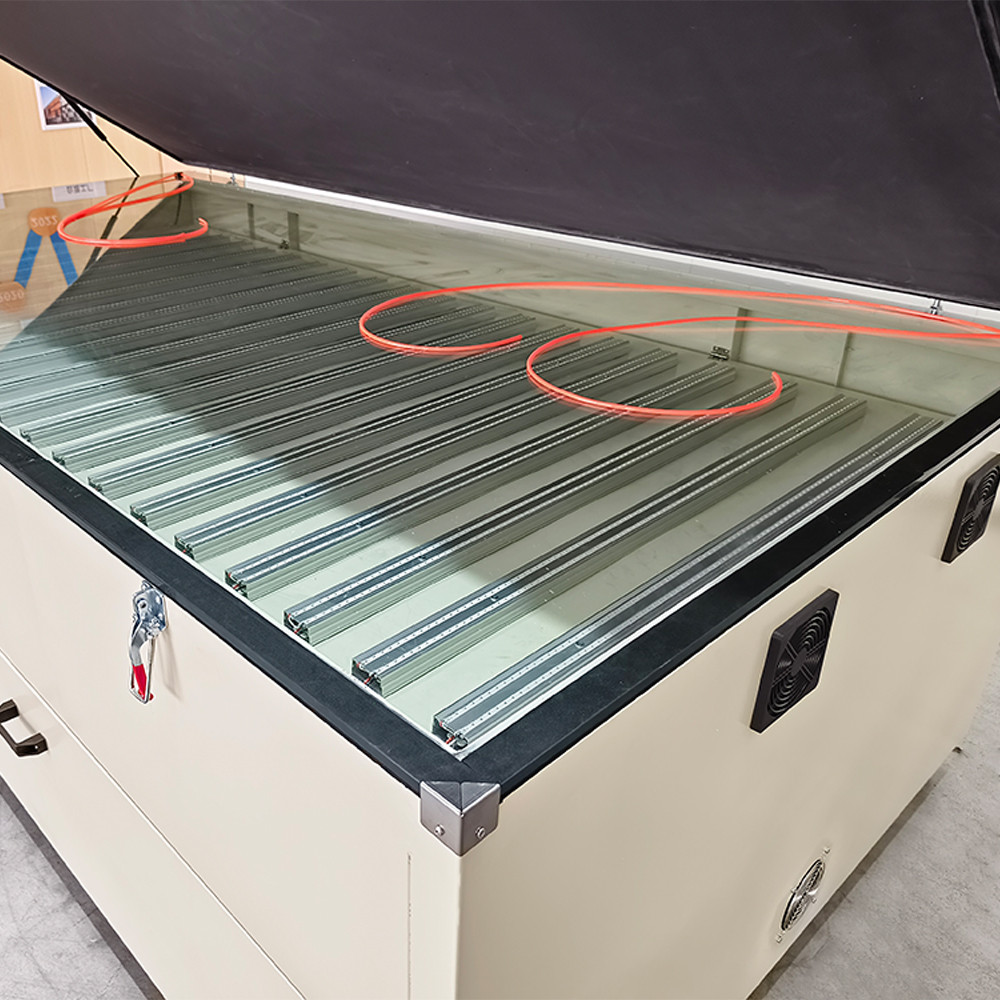

Detailed display
Screen plate sample
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (40% deposit to start the production, 60% paid before delivery.
3. Delivery date: 14 business days after receiving the payment.
4. Delivery means: By sea from Shanghai.
