Full Automatic Muti Function CZ Purlin Roll Forming Machine In North America
group namePurlin Roll Forming Machine
-
Min Order1 set
brand nameJunnan Steel Wholesale
payment methodL/C, T/T
-
update timeFri, 05 Dec 2025 15:12:52 GMT
Paramtents
Raw Material PPGI PPGL GI GL
Material Thickness 2mm - 3mm
Shaft Material 45# High Grade Steel
Roller material GCr 15
Work Pressure 195 Mpa---350 Mpa
Voltage 380V/50HZ 3Phase(as Customer's Request)
Dimension(L*W*H) 8000*1600*1600mm
Punching Hydraulic Punching
Packging & Delivery
Weight7000kg / set
Min Order1 set
Briefing
With the fully automatic CZ interchangeable section roll forming machine, you can swiftly switch between C and Z purlins in just 30 minutes.
Detailed

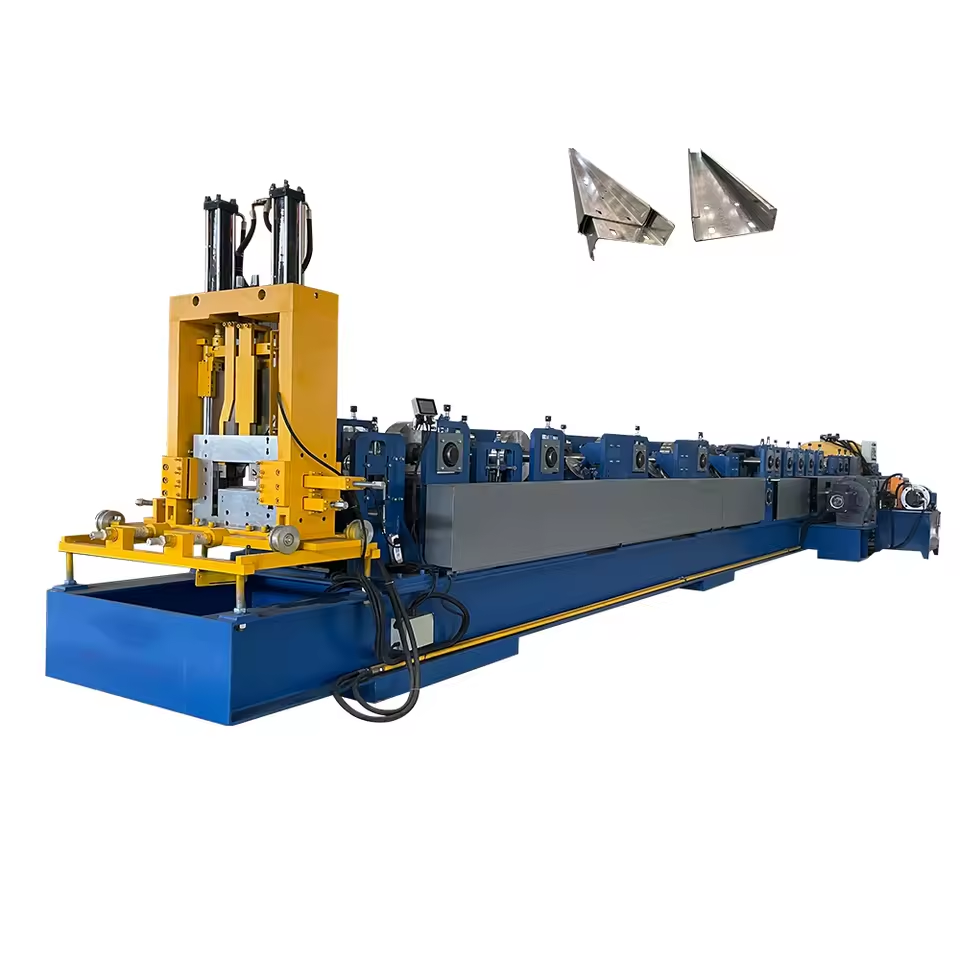

Full Automatic Muti Function CZ Purlin Roll Forming Machine In North America
The automatic CZ exchange roll forming machine is a complete roll forming system designed to manufacture CZ purlins in a variety of specifications. This advanced equipment includes key components such as a passive loading frame, leveling device, automatic punching system, front shear device, main forming unit, continuous post-forming shear unit, hydraulic station, and a computerized control system.
Machine Components
Hydraulic Decoiler
5 Ton Hydraulic Decoiler: one set
Feeding And Leveling Device
With handwheels for adjust different feeding width
Roll Former 1 set
Running Speed:30m/min(without punching and cutting)
Hydraulic Post Cutter 1 set
Cutting method：Multiple size cutter
Technical Parameters
| Model | CZ Purlin Machine |
| Size for C Purlin | 100-300mm |
| Size for Z Purlin | 120-300mm |
| Material Thickness | 1.2-3.0mm |
Machine Dimension | 11000*1800*1500mm |
Forming Steps | 18steps |
Running Speed | 0-30m/min |
Hydraulic Power | 7.5KW |
Roller Material | Gcr15&Crl2,heat treatment,plate hard chrome |
Cutter Material | SKD-11 |
Machine Frame Material | H-Beam with 30mm thickness |
C Z Profile Drawing
We offer customization options! Whether it's profile, color, or logo, just let us know your requirements. You can either provide design drawings or simply tell us the material, profile, feeding width, and thickness, and we'll tailor the solution to meet your needs.
| Profile Model | C Section（mm） | Thickness | ||
| Web | Flange | Lip | ||
| C100-300 | 100-300mm | 40-100mm | 10-20mm | 1.2-3.0mm |
| Z120-300 | 120-300mm | 40-100mm | 10-20mm | 1.2-3.0mm |
Package
For different machines or production line components, we have distinct packaging solutions:
- For complete machines or production lines, we use plastic film for covering and wrapping. These are then loaded into containers using forklifts or cranes.
- For critical components, such as roll-forming roller sets, we employ metal frames for packaging. All parts are securely fastened within the container using steel ropes and locking devices to ensure safe long-distance transportation.
Service We Supply
1. Lifetime Factory Service: Providing technical support for the entire service life of our machines.
2. Customized Design: Product specifications can be tailored according to customer requirements.
3. One-Year Warranty: Free replacement of damaged parts caused by quality issues.
4. Optional Overseas Service: We can dispatch technicians to the customer's factory for installation and staff training, subject to additional fees.
