FTTH Fiber Optic Fast Connector SC UPC APC Optical Fiber Quick Connector
group nameFiber Optic Fast Connector
-
Min Order100 piece
brand nameRUX
modelSC/APC SC/UPC
payment methodL/C, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 02 May 2024 20:18:00 GMT
Paramtents
Application FTTH Drop Cable
Fiber Type Single Mode
Color Blue /Green
Insertion Loss ≤ 0.3dB
Return Loss ≥ 55dB
Connector Type SC
Wavelength 1310/1550nm
No. of Fiber 1
Packging & Delivery
Min Order100 piece
Briefing
Detailed

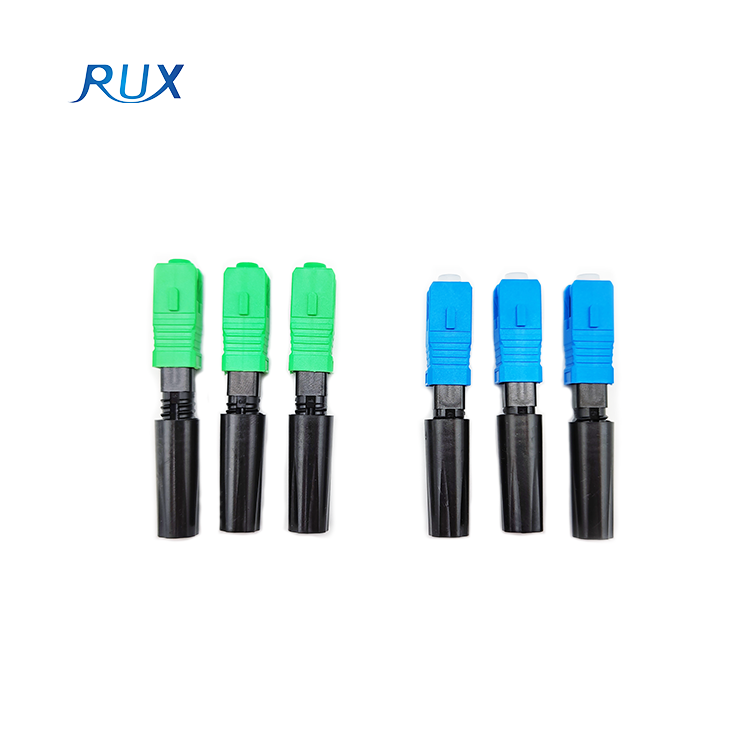

FTTH Fiber Optic Fast Connector SC UPC APC Optical Fiber Quick Connector
Quick connector is a good way to solve the field wiring operations and fiber to the home project of the connector. Assembly without the need for glue, grinding and electrical tools, is widely used in the construction site need to quickly connect the place for the operation to provide a fast and stable connector.
|
ITEM
|
Technical Parameters
|
|
Application
|
FTTH Drop Cable
|
Optical fiber diameter | 125μm ( 652 & 657 ) |
Fiber Type | Single Mode |
Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
Return Loss | ≥ 55dB |
Connector Type | SC |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
|
Tensile strength
|
>50 N
|
Using temperature | -40~+75°C |
* the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Optical Network Unit.
* adopted fiber pre-installed structure.
* could be reused, and convenient for field installation.
* Optical Network Unit.
* CATV.
* FTTH.
