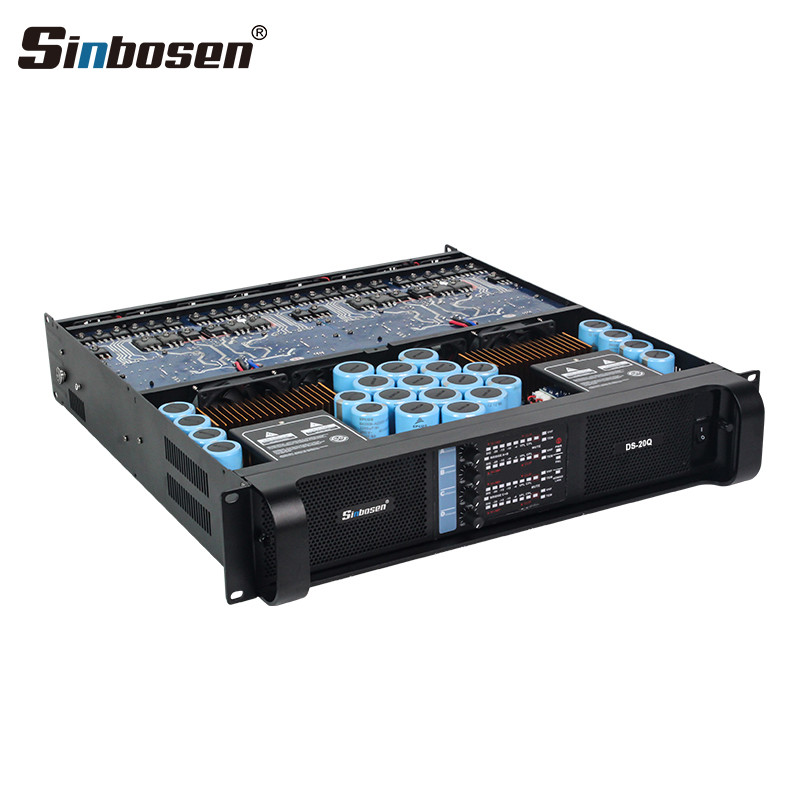

Sinbosen DS-20Q 4 channel 2200w powerful bass power amplifier

Sinbosen DS-20Q 4000 Watt 4 Channel Professional Bass Power Amplifier Dual 18 Inch Subwoofer

DS-20Q 4 channel live sound bass power amplifier is the core model in the FP series, which is the perfect design for large-scale events. It was first developed by our factory engineer.

Sinbosen DS-20Q Advantage:

Sinbosen DS-20Q some materials information as follows:

✔ Extended 42mm heatsink, longer and thicker.

✔ Use the original "Onsemi" and "Fairchild" transistor.

✔ Use high-quality fans from Taiwan.

✔ Use the original "Siemens" capacitors.

- 12pcs 3600uf/200V

- 8pcs 2200uf/200V

✔ Use Switzerland XLR Brand -- Neutrik.

Sinbosen DS-20Q Power Amplifier Specification:

8Ω Stereo Power (RMS):    2250W X 4

4Ω Stereo Power (RMS):    4000W X 4

8Ω Bridged Power (RMS):  80000W X 2

4Ω Bridged Power (RMS):  90000W X 2

Frequency Response(+o/-0.3dB,1W/8Ω)：20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W：<0.1%

Signal-to-Noise Ratio：>112 dBA

Channel separation (Crosstalk) at 1 kHz ：>70 dB

Input Connectors (per channel)：3 pin XLR, electronically balanced

Output Connectors (per channel)：Binding Posts 2-pole

Class：TD

TourClass Protection：ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 220 V / 110 V nominal：180-240 V / 90-130 V selectable

Voltage Gain(dB)：23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance：20 kOhm

Level adjustment (per ch.)：Front panel potentiometer, 31 positions detented from -inf to 0 dB

Gross weight(kg) : 19.5kg

Click more for Clients Feedback

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;

Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
