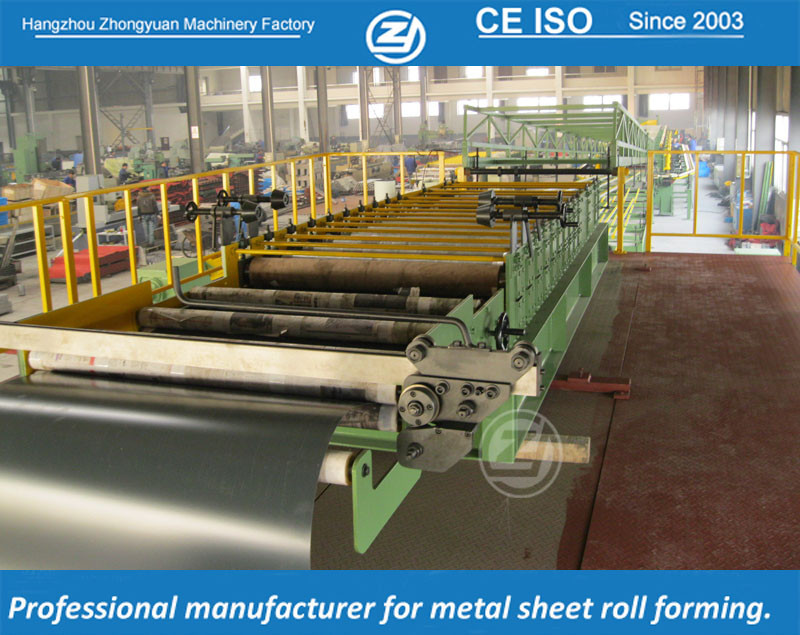

Our PU sandwich panel Production line is one line that integrates advanced mechanical, chemical, electrical, hydraulic, and pneumatic technologies.
Sandwich Panel Spec | ||
---|---|---|
Min. cutting length | 3 meters | |
Max. stacking length | 15m | |
Panel width | 1000mm (can be designed as per client’s requirment) | |
Panel thickness | Mini thickness | 30mm (corrugated sandwich panel) 50mm (wall panel) |
Max. thickness | 150mm(exclude corrugated sandwich panel) |
Sandwich Panel Spec | |
---|---|
Min. cutting length | 0.4-0.7mm color steel sheet |
Max. stacking length | 1250mm (can be designed as per client’s requirement) |
Panel width | 10 tons |
Panel thickness | 508mm |
Whole Line Spec | |
---|---|
Working speed | About 3-7m/min (adjustable) |
Total length | About 105m |
Working height | 1200mm (height of panel coming out) |
Pressure for foaming | 150-200 bar |
Double belt conveyor | 23m |
Control mode | Mitsubishi PLC and converter |
Total power | About 100Kw (as per final designing) |
Power required | 380V/3phase/50Hz or as per customer's requirement. |
Air pressure | 0.7Mpa (for buyer to prepare) |
Due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storage, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture PU sandwich panel production lines in different specs, models and configurations.
Roll forming machines to form panels` up and down sheets. Machines lifetime can be more than 10 years.
23m double belts conveyor make panels more even.
Band saw cutting style cut panels automatically according to set length.
Mitsubishi PLC controller with automatic mode and manual mode, realize continuous production.
