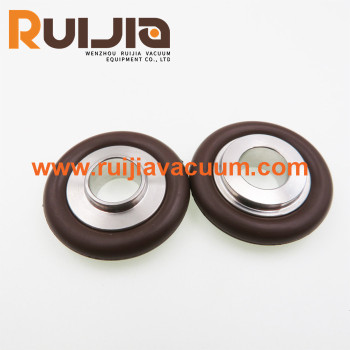

KF Vacuum Centering Ring Adapter & O'ring
group nameKF Centering Rings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 15:24:32 GMT
Paramtents
Product Name KF Vacuum centering ring adapter & O’ring
Standard CF Standard
Seal material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF centering rings,KF vacuum centering ring & o'ring is an essentialcomponent in vacuum systems,centering rings size ranges:KF16-KF40.Working Pressure:Vacuum~atmosphere pressure.
Detailed
Vacuum Centering Ring Adapter & O'ring feature
advantage
●used in vacuum systems or laboratory equipment to ensure a secure and leak-proof connection between two parts.
● vacuum centering ring adapter and O-ring is an essential component in vacuum systems, particularly when working with KF connectors.
● It typically includes a centering ring which helps align the components correctly, ensuring a snug fit and reducing the risk of misalignment.
Vacuum Centering Ring Adapter & O'ring specifications
| Product Name | KF Vacuum centering ring adapter & O’ring |
| Brand | RUIJIA |
| Size | KF16,KF25,KF40. |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum Centering Ring types | KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring adaptor & O’ring, KF centering ring with outing ring |
Vacuum Centering Ring Adapter & O'ring parameter
KF Centering Ring Adapter & O’Ring Unit: mm
| Model No. | Material C/R | Material O'Ring | A | B | C | D | E | F | O'ring Size |
| KF16CR16VS | 304 S.S./316S.S | Viton/NBR | 10 | 12 | 16 | 17 | 8 | 3.9 | AS-314 |
| KF20CR25VS | 304 S.S./316S.S | Viton/NBR | 20 | 22 | 25 | 26 | 8 | 3.9 | AS-320 |
| KF32CR40VS | 304 S.S./316S.S | Viton/NBR | 32 | 34 | 40 | 41 | 8 | 3.9 | AS-326 |
*O'Ring color for NBR material is black, brown is available upon request.
*O'Ring color for Viton material is brown, black is available upon request.
