KF Vacuum Stainless Steel Overpressure Ring,Vacuum Atmosphere Pressure,KF10-KF80
group nameKF Centering Rings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 12 Nov 2024 12:50:11 GMT
Paramtents
Size KF10,KF25,KF40,KF50,KF63,KF80
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing

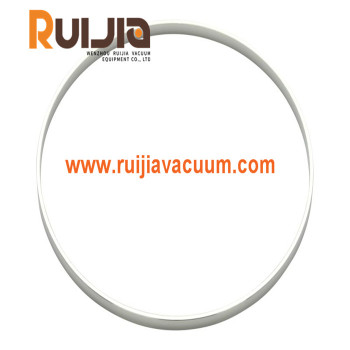

Overpressure rings,KF,SS304/SS316,Over Pressure Ring fits over the outside diameter of flange centering ring O-ring.
size range: KF10-KF80.
size range: KF10-KF80.
Detailed
KF Vacuum Stainless Steel Overpressure Ring,Vacuum Atmosphere Pressure,KF10-KF80 feature
●utilized in vacuum systems and equipment for industries like semiconductor manufacturing, research laboratories and clean room environments.
● They are compatible with different types of vacuum systems and can be integrated with various vacuum pumps and valves. The compatibility often depends on the specific design of the over pressure ring and the vacuum system requirements.
●Meshed centering rings can be made from various materials including stainless steel, brass, or other corrosion-resistant metals, depending on the application requirements
KF Vacuum Stainless Steel Overpressure Ring,Vacuum Atmosphere Pressure,KF10-KF80 specifications
|
Product Name
|
KF Vacuum Stainless Steel Overpressure Ring,Vacuum Atmosphere Pressure,KF10-KF80
|
||
Brand | RUIJIA | ||
Size | KF10,KF25,KF40,KF50,KF63,KF80 | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum Centering Ring types
|
KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring adaptor & O’ring, KF centering ring with outing ring
|
||
Product parameters
KF Vacuum Stainless Steel Overpressure Ring,Vacuum Atmosphere Pressure,KF10-KF80 Unit:mm
| Model No. | Material | A | B | C |
| KF10OPR | 304 S.S. | 23.5 | 28 | 3.7 |
| KF16OPR | 304 S.S. | 30.12 | 31.75 | 3.7 |
| KF25OPR | 304 S.S. | 38.16 | 40.4 | 3.7 |
| KF40OPR | 304 S.S. | 54 | 57.15 | 3.7 |
| KF50OPR | 304 S.S. | 66.55 | 69.85 | 3.7 |
Special Sizes Available Upon Request.
