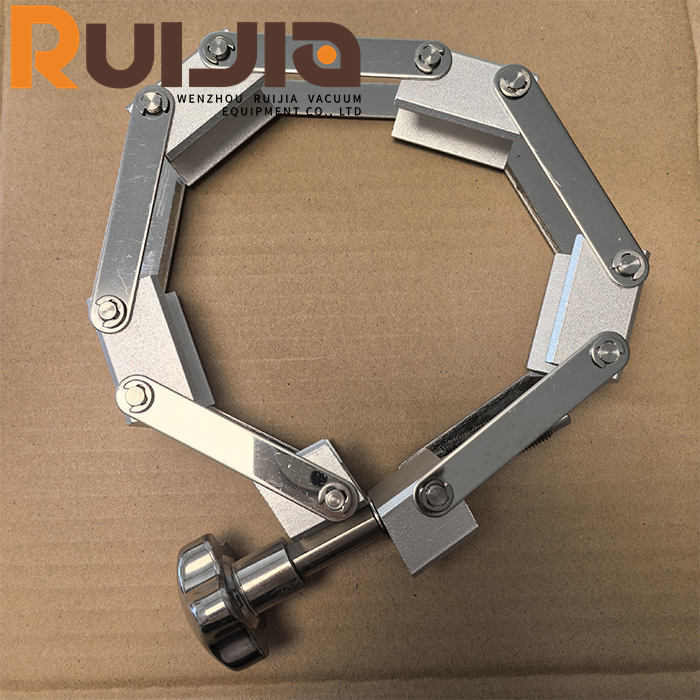

KF Vacuum Chain Clamps(KF80-KF200) with Hand Knob Plastic
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeMon, 03 Mar 2025 16:15:28 GMT
Paramtents
Product Name KF Vacuum chain clamps KF80-KF200 Aluminium
Size KF80,KF100,KF125,KF160,KF200
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF chain clamps is used in a vacuum flange fitting system, KF chain clamps KF80-KF200 is typically installed through a hole drilled in a bulkhead (the wall separating the vacuum chamber from the outside environment).
Detailed
KF Vacuum Chain Clamps(KF80-KF200) feature with Hand Knob Plastic
advantage
●Used in high-tech industries such as semiconductor manufacturing, national defense research, aerospace, bio pharmaceuticals, LCD, photovoltaic solar energy, etc.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards
KF Vacuum Chain Clamps(KF80-KF200) specifications
| Product Name | KF Vacuum chain clamps KF80-KF200 Aluminium |
| Brand | RUIJIA |
| Size | KF80,KF100,KF125,KF160,KF200 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum clamp types | KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |
KF Vacuum Chain Clamps(KF80-KF200) parameters
KF Chain clamps(KF80-KF200) Unit:mm
| Model No. | Flange size | Material | A | B | T |
| CC-K-80 | KF80 | Block Aluminum | 165 | 99.8 | 37.1 |
| CC-K-100 | KF100 | Block Aluminum | 185 | 120.7 | 37.1 |
| CC-K-125 | KF125 | Block Aluminum | 210 | 149.5 | 37.1 |
| CC-K-160 | KF160 | Block Aluminum | 235 | 177.5 | 37.1 |
| CC-K-200 | KF200 | Block Aluminum | 300 | 240.3 | 37.1 |
