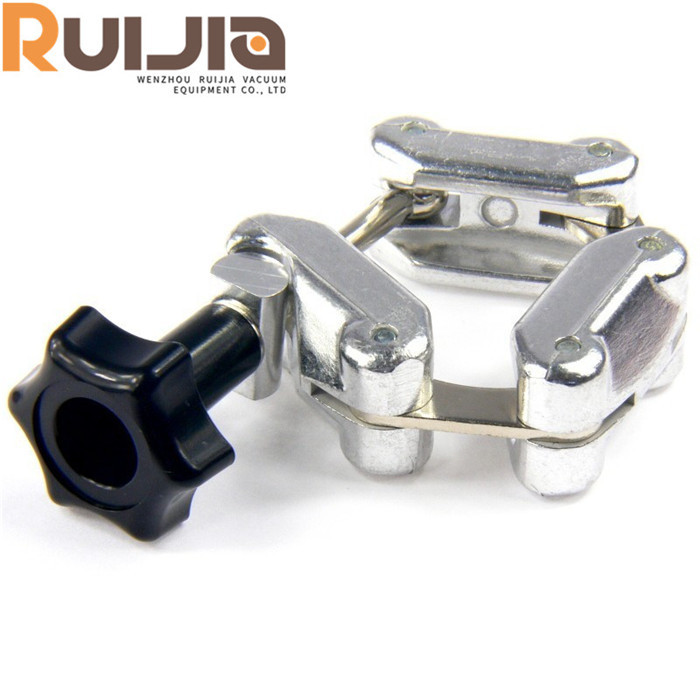

KF Vacuum Chain Clamp KF16-KF63 with Hand Knob SS304
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 19 Feb 2025 14:19:58 GMT
Paramtents
Product Name KF Vacuum chain clamp KF16-KF63
Size KF10,KF25,KF40,KF50,KF63
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF flanges fittings clamp, KF clamps fittings is made of SS304/SS316.size range:KF16-KF50.Working Pressure:Vacuum~atmosphere pressure.
Detailed
KF Vacuum Chain Clamp KF16-KF63 with hand Knob SS304 feature
advantage
●Used in high-tech industries such as semiconductor manufacturing,national defense research,aerospace,bio pharmaceutical,LCD,etc
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
●The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.
KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 specifications
| Product Name | KF Vacuum flange chain clamp KF16-KF63 |
| Brand | RUIJIA |
| Size | KF10,KF25,KF40,KF50,KF63 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum clamp types | KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |
KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 parameters
KF Vacuum flange chain clamp KF16-KF63 Unit:mm
| Model No. | Flange size | Material | A | B | T |
| CC-K-16 | KF10/16 | Block Aluminum | 22 | 56 | 20.3 |
| CC-K-25 | KF25 | Block Aluminum | 32 | 66 | 20.3 |
| CC-K-40 | KF40 | Block Aluminum | 46 | 80 | 20.3 |
| CC-K-50 | KF50 | Block Aluminum | 69 | 100 | 20.3 |
| CC-K-63 | KF63 | Block Aluminum | 78 | 112 | 20.3 |
KF Vacuum Chain Clamp KF16-KF63 with hand knob SS304 detail
Production Center
Packing & Shipping
Application
