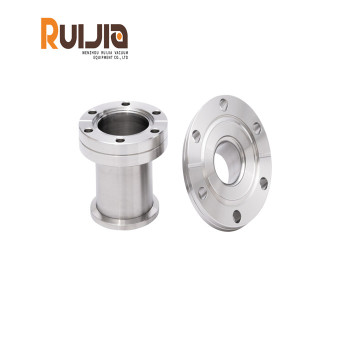

Tubular Adaptor KF to ANSI Flange Adaptor
group nameVacuum Tubulated Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 14:10:26 GMT
Paramtents
Product Name Vacuum ANSI-KF Tubulated Flange Adaptor
Size ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7K
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Vacuum flanges adaptor,ANSI to KF tubulated adaptor are mainly used in the field of vacuum technology and are suitable for connecting low, medium, and high vacuum equipment.
Detailed
Tubular Adaptor KF to ANSI Flange Adaptor feature
advantage
●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.
●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing:Appearance inspection, size inspection, sealing performance testing
Tubular Adaptor KF to ANSI Flange Adaptor specifications
| Product Name | KF Vacuum flange fittings Tees |
|---|---|
| Product Name | Vacuum ANSI-KF Tubulated Flange Adaptor |
| Brand | RUIJIA |
| Size | ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7KA50. |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | ANSI-KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
Tubular Adaptor KF to ANSI Flange Adaptor parameters
Vacuum ANSI-KF Tubulated Flange Adaptor Unit:mm
| Model No. | Material | Nominal | A | B | C | D | E | P.C.D |
| ASA4KA40 | 304S.S | 1 | 108 | 55 | 42 | 38.1 | 15.8*4 | 79.4 |
| ASA4KA50 | 304S.S | 1 | 108 | 75 | 42 | 50.8 | 15.8*4 | 79.4 |
| ASA5KA40 | 304S.S | 1 1/2 | 127 | 55 | 42 | 38.1 | 15.8*4 | 98.4 |
| ASA5KA50 | 304S.S | 1 1/2 | 127 | 75 | 42 | 50.8 | 15.8*4 | 98.4 |
| ASA7KA40 | 304S.S | 3 | 190.5 | 55 | 42 | 38.1 | 19*4 | 152.4 |
| ASA7KA50 | 304S.S | 3 | 190.5 | 75 | 42 | 50.8 | 19*4 | 152.4 |
Special Sizes Available Upon Request.
