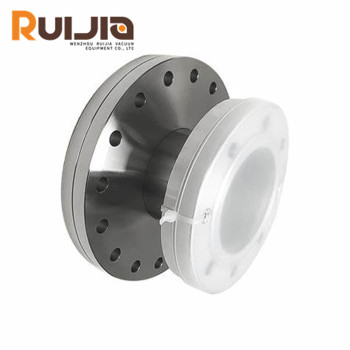

Vacuum CF Reducing Adaptor-Fixed China Manufacture
group nameVacuum Reducing Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 14:08:55 GMT
Paramtents
Product Name Vacuum CF Reducing adaptor-Fixed
Size CF35RA16,CF63RA16,CF63RA35,CF100RA35,CF100RA63,CF1
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Vacuum CF reducer adaptor,CF reducing adaptor-fixed can provide a way to connect equipment with different CF reducing flange standards.
Detailed
Vacuum CF Reducing Adaptor-Fixed feature
advantage
●Application: Suitable for various application scenarios that require high vacuum operation, they can withstand high temperature baking, and the applicable vacuum degree can reach up to 10-12 mbar.
●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing
Vacuum CF Reducing Adaptor-Fixed specifications
| Product Name | KF Vacuum flange fittings Tees |
|---|---|
| Product Name | Vacuum CF Reducing adaptor-Fixed |
| Brand | RUIJIA |
| Size | CF35RA16,CF63RA16,CF63RA35,CF100RA35,CF100RA63,CF150RA35,CF150RA63,CF150RA63 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum CF Reducing Adaptor-Fixed parameters
Vacuum CF Reducing adaptor-Fixed Unit:mm
| Model No. | Material | A | B | C | D |
| CF35RA16 | 304S.S | 69.5 | 33.8 | 76.2 | 19.05 |
| CF63RA16 | 304S.S | 113.6 | 33.8 | 76.2 | 1905 |
| CF63RA35 | 304S.S | 113.6 | 69.5 | 76.2 | 38.1 |
| CF100RA35 | 304S.S | 151.6 | 69.5 | 76.2 | 38.1 |
| CF100RA63 | 304S.S | 151.6 | 113.6 | 76.2 | 63.5 |
| CF150RA35 | 304S.S | 202.5 | 69.5 | 76.2 | 38.1 |
| CF150RA63 | 304S.S | 202.5 | 113.6 | 76.2 | 63.5 |
| CF150RA100 | 304S.S | 202.5 | 151.6 | 76.2 | 101.6 |
Special Sizes Available Upon Request
