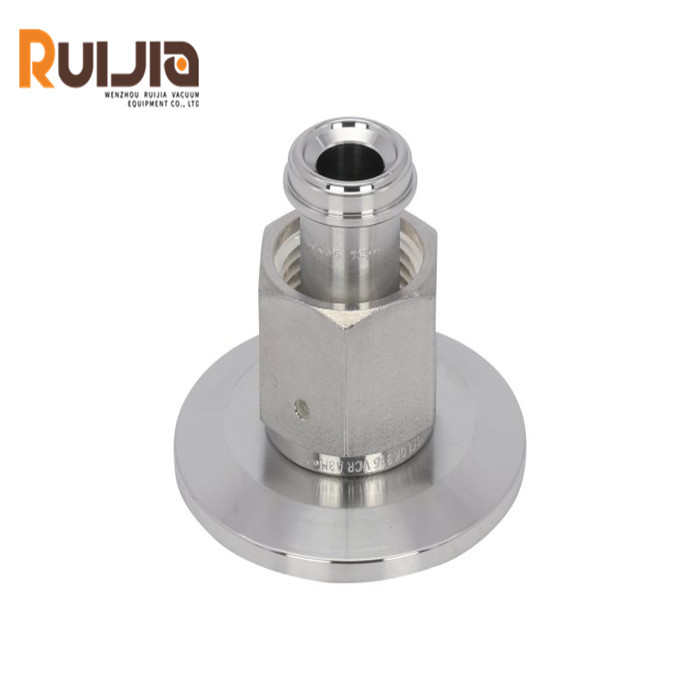

Vacuum KF To VCR Female Adaptor China manufacture
group nameKF to VCR Female Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 14:05:31 GMT
Paramtents
Product Name Vacuum KF to VCR Female Adaptor Flange fittings
Size KF16FVCR6,KF16FVCR13,KF25FVCR6,KF25FVCR13,KF40FVCR
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Vacuum fittings adaptors,KF-VCR Male adaptors, VCR fittings seal by the compression of a gasket between two highly polished beads on the surfaces of the VCR connectors.
Detailed
Vacuum KF To VCR Female Adaptor feature
advantage
●Application: Used to connect vacuum pipelines,Vacuum Flange and vacuum equipment, such as vacuum pumps and vacuum chambers, suitable for frequent system configuration changes or applications that require cleaning in laboratory and industrial environments.
●Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
Vacuum KF To VCR Female Adaptor specifications
| Product Name | Vacuum KF to VCR Female Adaptor Flange fittings |
| Brand | RUIJIA |
| Size | KF16FVCR6,KF16FVCR13,KF25FVCR6,KF25FVCR13,KF40FVCR6,KF40FVCR13,KF50FVCR6,KF50FVCR13 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF-VCR Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum KF To VCR Female Adaptor parameters
Vacuum fittings KF swagelok adaptor Unit:mm
| Model No. | Material | A | B | C | VCR |
| KF16FVCR6 | 304S.S | 30 | 4.4 | 37 | 1/4'' |
| KF16FVCR13 | 304S.S | 30 | 10.4 | 41.9 | 1/2'' |
| KF25FVCR6 | 304S.S | 40 | 4.4 | 37 | 1/4'' |
| KF25FVCR13 | 304S.S | 40 | 10.4 | 41.9 | 1/2'' |
| KF40FVCR6 | 304S.S | 55 | 4.4 | 37 | 1/4'' |
| KF40FVCR13 | 304S.S | 55 | 10.4 | 41.9 | 1/2'' |
| KF50FVCR6 | 304S.S | 75 | 4.4 | 37 | 1/4'' |
| KF50FVCR13 | 304S.S | 75 | 10.4 | 41.9 | 1/2'' |
Special Sizes Available Upon Request.
