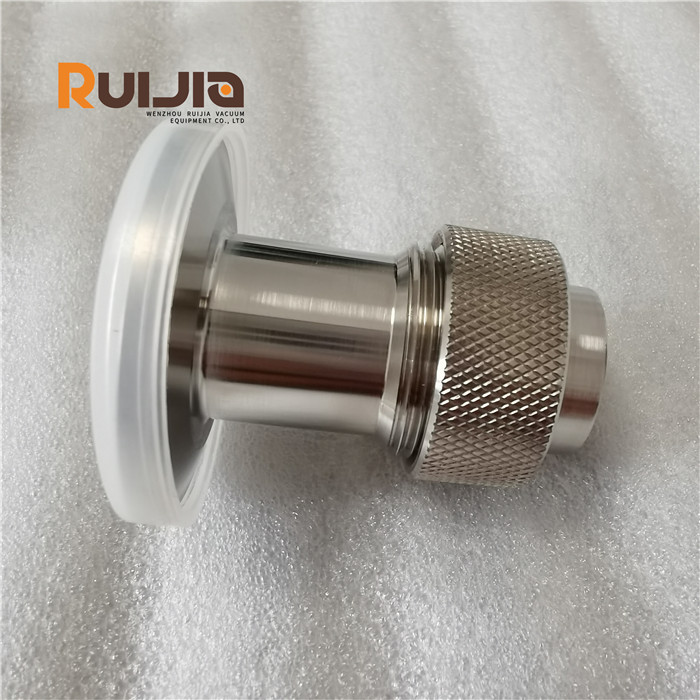

KF-Quick Disconnect Adaptor KF40(NW40)to 1"Compression Tube
group nameKF Quick-Disconnect Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 12 Nov 2024 14:00:59 GMT
Paramtents
Product Name Vacuum fittings KF Rubber Hose Adaptor
Size KF10RHA,KF16RHA,KF125RHA,KF40RHA,KF50RHA,
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
KF Adaptors,Quick-Disconnect adaptors is available in various sizes to suit different flange diameters by enabling the connection of various components.
Detailed
KF Quick Disconnect Adaptor feature
advantage
●Application:suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
●Material: Typically made from materials like ,stainless steel304/316/316l, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
KF Quick Disconnect Adaptor specifications
| Product Name | Vacuum fittings KF Quick Disconnect adaptor |
| Brand | RUIJIA |
| Size | KF16QDA6,KF25QDA3,KF25QDA6,KF25QDA13,KF25QDA19,KF40QDA3,KF40QDA6,KF40QDA13,KF40QDA19. |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
KF Quick Disconnect Adaptor parameters
Vacuum fittings KF Quick Disconnect adaptor Unit:mm
| Model No. | Material | A | B | C | Tread |
| KF16QDA6 | 304S.S | 6.5 | 33.4 | 30 | 1/4'' |
| KF16QDA12 | 304S.S | 13 | 36.5 | 30 | 1/2'' |
| KF16QDA19 | 304S.S | 19.3 | 44.5 | 30 | 3/4'' |
| KF25QDA12 | 304S.S | 13 | 36.5 | 40 | 1/2'' |
| KF25QDA19 | 304S.S | 19.3 | 44.5 | 40 | 3/4'' |
| KF25QDA25 | 304S.S | 25.7 | 50.8 | 40 | 1'' |
| KF40QDA12 | 304S.S | 13 | 36.5 | 55 | 1/2'' |
| KF40QDA19 | 304S.S | 19.3 | 44.5 | 55 | 3/4'' |
| KF40QDA25 | 304S.S | 25.7 | 50.8 | 55 | 1'' |
| KF40QDA38 | 304S.S | 38.4 | 60.3 | 55 | 1 1/2'' |
| KF50QDA38 | 304S.S | 38.4 | 60.3 | 75 | 1 1/2'' |
| KF50QDA50 | 304S.S | 51 | 60.3 | 75 | 2'' |
Special Sizes Available Upon Request.
