ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 12 Nov 2024 13:35:38 GMT
Paramtents
Size ISO63-ISO500
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO Standard flange
Temperature -200~800℃
Packging & Delivery
Min Order1 piece
Briefing

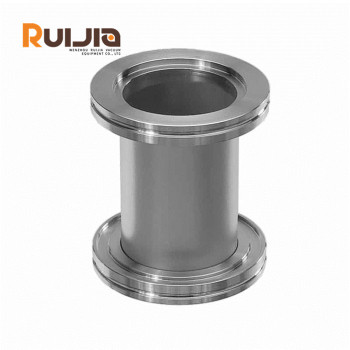

ISO full nipple, vacuum full nipples are manufactured with a flange on one end and raw tubing on the other. full nipples can be used with quick connection fittings to make a vacuum tight connection without welding.
Detailed
ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale feature
ISO vacuum nipple is a specialized component used in certain medical applications, particularly in the field of respiratory therapy or neonatal care,It is designed to fit onto the end of a catheter and can be used in conjunction with a vacuum system.
*Size and Compatibility: They are available in different sizes to fit various types and sizes of catheters
Vacuum Attachment:They are specifically designed to attach securely to a vacuum system, allowing for efficient suctioning.
Ease of Use: They are designed to be easy to handle and attach/detach from the catheter, often with quick-release mechanisms.
ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale specifications
|
Product Name
|
ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale
|
||
Brand | RUIJIA | ||
Size | ISO63-ISO500 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard flange | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Surface
|
Sand Blasting or Polished Surface
|
||
Product parameters
ISO-LF Full Nipples Vacuum ISO Nipples Flanges Fittings Stainless steel China Wholesale Unit:mm
| Model No. | Material | A | B | C |
| ISO63N100 | SS304 | 95 | 63.5 | 100 |
| ISO80N100 | SS304 | 110 | 76.2 | 100 |
| ISO100N100 | SS304 | 130 | 101.6 | 100 |
| ISO160N100 | SS304 | 180 | 152.4 | 100 |
| ISO200N100 | SS304 | 240 | 203.2 | 100 |
| ISO250N100 | SS304 | 290 | 254 | 100 |
| ISO320N200 | SS304 | 370 | 304.8 | 100 |
| ISO400N200 | SS304 | 450 | 406.8 | 100 |
| ISO500N200 | SS304 | 550 | 508 | 100 |
Special Sizes Available Upon Request.
Part number plus "K" for sand blasting surface.
Part number plus"L"for polished surface.
