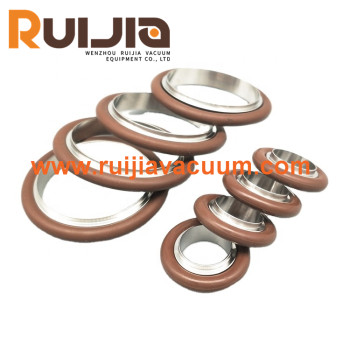

Stainless Steel KF Vacuum centering ring & O'ring KF10- 50,Seal material Viton,Silicone,Buna-N seal
group nameKF Centering Rings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 12 Nov 2024 12:23:25 GMT
Paramtents
Size KF10,KF16,KF25,KF40,KF50
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Centering rings,O'rings,as known as quick flange fittings,KF center ring & O'rings with outer rings to use to connect two flanges together.
Detailed
Stainless Steel KF Vacuum centering ring & O'ring KF10-50,Seal material Viton,Silicone,Buna-N seal feature
●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
● This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel, aluminium EN1.4301, EN1.4404
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
Stainless Steel KF Vacuum centering ring & O'ring KF10-50,Seal material Viton,Silicone,Buna-N seal specifications
|
Product Name
|
Stainless Steel KF Vacuum centering ring & O'ring KF10-50,Seal material Viton,Silicone,Buna-N seal
|
||
Brand | RUIJIA | ||
Size | KF10,KF16,KF25,KF40,KF50 | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum Centering Ring types
|
KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring & O’ring, KF centering ring with outing ring
|
||
Product parameters
Stainless Steel KF Vacuum centering ring & O'ring KF10-50,Seal material Viton,Silicone,Buna-N seal Unit:mm
| Model No. | Material C/R | Material O'Ring | A | B | C | D | O'ring Size |
| KF1OCRVS | 304 S.S./AL | Viton/NBR | 10 | 12 | 8 | 3.9 | AS-311 |
| KF16CRVS | 304 S.S./AL | Viton/NBR | 16 | 17 | 8 | 3.9 | AS-314 |
| KF25CRVS | 304 S.S./AL | Viton/NBR | 25 | 26 | 8 | 3.9 | AS-320 |
| KF40CRVS | 304 S.S./AL | Viton/NBR | 40 | 41 | 8 | 3.9 | AS-326 |
| KF50CRVS | 304 S.S./AL | Viton/NBR | 50 | 52 | 8 | 3.9 | AS-330 |
*O'Ring color for NBR material is black, brown is available upon request. *O'Ring color for Viton material is brown, black is available upon request.
