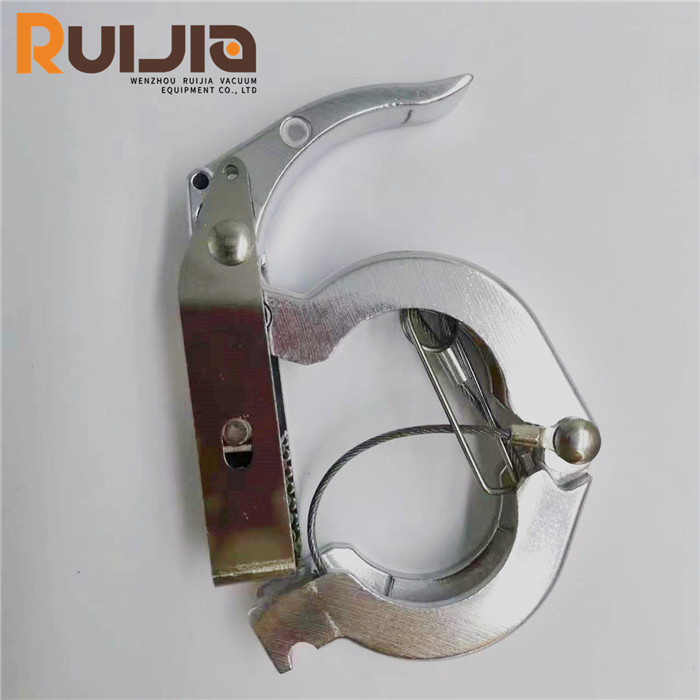

KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 04 Nov 2024 08:57:18 GMT
Paramtents
Size KF10,KF25,KF40,KF50
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
KF lock clamps,Vacuum toggle clamps with lock is then tightened around the vacuum line or fitting, securing it in place while maintaining an airtight seal. Self-adjusting Clamp With Manual Over Tightening.
Detailed
KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat Feature
●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
●Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel or aluminium.
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat. Specifications
|
Product Name
|
KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat.
|
||
Brand | RUIJIA | ||
Size | KF10,KF25,KF40,KF50 | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Vacuum Toggle Clamps With Lock Wholesale,Aluminium Body,304S.S Pin,304S.S Spring Seat. Unit:mm
| Model No. | Material | A | B | C | D | E |
| KF16TCLA | Aluminum | 66 | 97 | 20 | 63 | 43 |
| KF25TCLA | Aluminum | 75 | 106 | 20 | 74 | 43 |
| KF40TCLA | Aluminum | 85 | 123 | 20 | 90 | 43 |
| KF50TCLA | Aluminum | 118 | 165 | 20 | 115 | 43 |
Special Sizes Available Upon Request.
