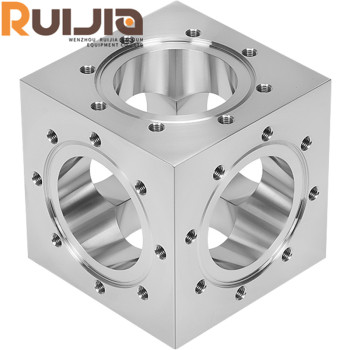

CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China
group nameCF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 04 Nov 2024 09:52:30 GMT
Paramtents
Size CF16,CF35,CF50,CF63,CF100,CF150,CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
CF cubes,CF vacuum cubes fittings,with fractional thread has good sealing and stability in ultra-high vacuum environments, meeting the needs of various applications.
Detailed
CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Feature
●Applied to various occasions that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, etc
●Thread Type: Fractional Thread, the thread size have 8-32,250-28,312-24.
●Test:Cleanliness testing, packaging environment testing, pressure testing, temperature testing
CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Specifications
|
Product Name
|
CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF50,CF63,CF100,CF150,CF200 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flange Fittings & Components 6-way Cubes/Crosses with Fractional thread Wholesale China Unit:mm
| Model No. | Flange Size | Material | A | B | Thread Size | Thread Depth |
| CF16CUF | CF16 | 304S.S | 17.25 | 15.7 | 8-32 | 6.35 |
| CF35CUF | CF35 | 304S.S | 35.05 | 38.1 | 250-28 | 9.4 |
| CF50CUF | CF50 | 304S.S | 43 | 50.8 | 312-24 | 9.4 |
| CF63CUF | CF63 | 304S.S | 56.65 | 63.5 | 312-24 | 12.7 |
| CF100CUF | CF100 | 304S.S | 76.2 | 102 | 312-24 | 12.7 |
| CF150CUF | CF150 | 304S.S | 101.6 | 152.4 | 312-24 | 12.7 |
| CF200CUF | CF200 | 304S.S | 127 | 203.2 | 312-24 | 12.7 |
Special Sizes Available Upon Request.
