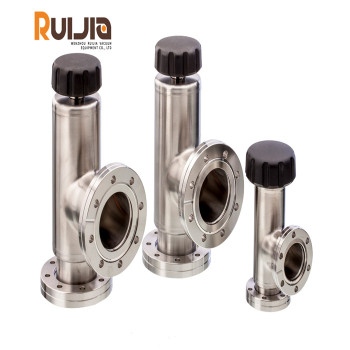

CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales
group nameVacuum Angle valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
modelRUIJIA VACUUM
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeMon, 11 Nov 2024 09:44:14 GMT
Paramtents
Size AVBAK-CR16,AVBAK-CR35,AVBAK-CR63.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
CF Vacuum Angle Valves, T type vacuum valves, CF16 CF35 CF63, SS304 SS316L CF Bakeabe all-metal, maintain stable performance under extreme conditions, ensuring the vacuum requirements of the system.
Detailed
CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Feature
●Application:Applied in fields that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, and vacuum coating technology.
●Size:The specific size information includes the interface size and overall size of the valve
●Testing:Detect sealing performance, high temperature resistance, and stability in vacuum environment
CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Specifications
|
Product Name
|
CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales |
||
Brand | RUIJIA | ||
Size | AVBAK-CR16,AVBAK-CR35,AVBAK-CR63. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | CF Standard | ||
Temperature | -200~800°C | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,
Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |
||
Product parameters
CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Unit:mm
| Model No. | O.D | A | B | C | D |
| AVBAK-CR16 | 19.05 | 38.1 | 122.2 | 133 | 38.1 |
| AVBAK-CR35 | 38.1 | 62.5 | 169 | 188 | 54 |
| AVBAK-CR63 | 63.5 | 105 | 266 | 294 | 76.2 |
Special Sizes Available Upon Request.
