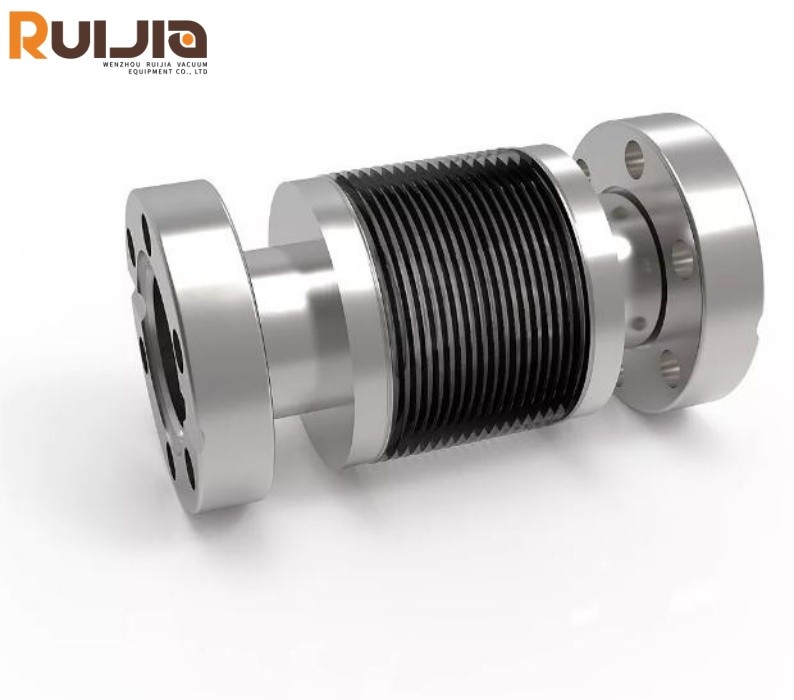

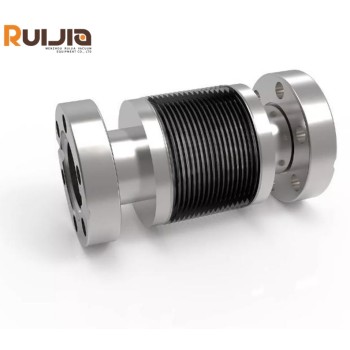

SS304/SS316L CF16 Vacuum edge weld bellows for vacuum system
group nameCF Vacuum Bellows
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodT/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
-
update timeMon, 03 Mar 2025 12:05:43 GMT
Paramtents
Bellows Type SS304/SS316L CF16 Vacuum edge weld bellows
Material SS304/SS316L
Standard CF Standard
Size Range CF16,CF40,CF63
Length 48.5mm,63mm,65mm,76mm or as customer request
Lifecycles 10000
Packging & Delivery
Min Order1 piece
Briefing
Flexible Connectivity for Highly Demanding, Ultra - Flexible Applications，Vacuum edge weld bellow，Size range：CF16-CF63.
Detailed
SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios Feature
●Flexible Connection
Edge welded bellows are flexible connecting parts between different vacuum flanges or end fittings. They can be easily integrated into various setups.
● High - Flexibility Applications
These bellows, known for their great flexibility, are used in many applications.
● Functions in Vacuum and Low - Pressure
In vacuum systems or when there are low differential pressures, edge welded bellows absorb movements, decouple components, allow lead - through of items, and do volume compensation.
Stainless steel 304/316L Vacuum edge weld bellows Specifications
Bellows Type |
SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios |
||
Material | SS304/SS316L | ||
Standard | CF Flange connection | ||
Size Range | CF16,CF40,CF63 | ||
Length | 48.5mm,63mm,65mm,76mm or as customer request | ||
Spring rate axial | 5.3N/mm | ||
Working Pressure | Vacuum~atmosphere pressure | ||
Lifecycles | 10000 | ||
Product parameters
SS304/316L CF16 Vacuum edge weld bellows Unit:mm
| Size | AD | D1 | D2 | LC | LF | LE | HUB |
| EWB16R-20 | 34 | 31.5 | 16 | 48.5 | 58.5 | 68.5 | 20 |
| EWB40R-10 | 70 | 59 | 39 | 63 | 68 | 73 | 10 |
| EWB40R-20 | 70 | 59 | 39 | 65 | 75 | 85 | 20 |
| EWB63R-20 | 114.3 | 90 | 65 | 76 | 86 | 96 | 20 |
Special Sizes Available Upon Request.
