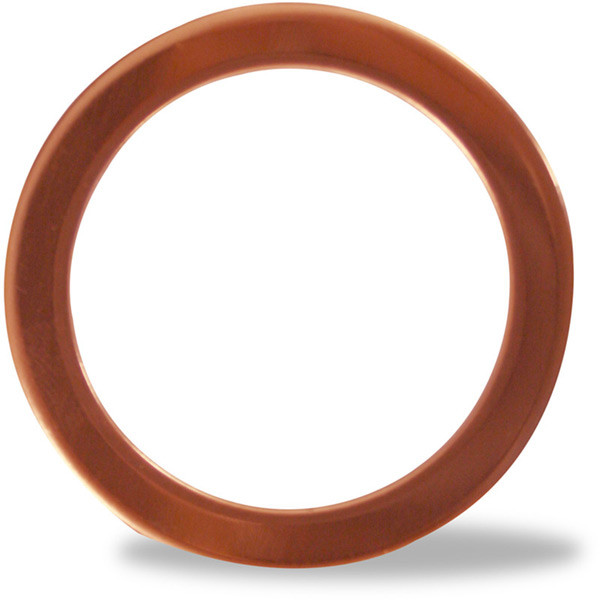

CF copper gasket for CF flange CF16-CF400
group nameCF Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 27 Mar 2025 11:59:10 GMT
Paramtents
Product Name CF copper gasket
Size CF16-CF400
Function Used for CF Flange
Packging & Delivery
Min Order1 piece
Briefing
Copper exhibits excellent electrical and thermal conductivity, along with remarkable flexibility. These inherent properties endow copper gaskets with fundamental physical capabilities and robust sealing performance.
Detailed
CF copper gasket used for CF flange Feature
●Copper exhibits excellent electrical and thermal conductivity along with remarkable flexibility. These inherent properties endow copper gaskets with fundamental physical capabilities and robust sealing performance.
●When the CF flange is properly assembled, the knife - edge presses firmly onto the flat gasket. This action forces the sealing material to spread outward towards the flange.
●The gasket is fully enclosed, ensuring that it won't protrude from the edges, even when subjected to extremely high bake - out temperatures.
●The CF flange is available in two versions: rotatable and non - rotatable. It comes with either through - holes or tapped bolt holes to meet different application requirements.
CF Copper Gasket Used For CF Flange Specifications
| Product Name | CF copper gasket |
| Brand | RUIJIA |
| Size | CF16-CF400 |
| Packing | sealed plastic bag with a protective plastic cap. |
Types | Copper gasket,silver plated copper gasket |
Product parameters
CF Copper Gasket Used For CF Flange Unit:mm
| Part# | Flange Size | A | B | Thickness(C) |
| CF16CS | CF16 | 21 | 16 | 2 |
| CF35CS | CF35 | 48 | 37 | 2 |
| CF63CS | CF63 | 82 | 63 | 2 |
| CF100CS | CF100 | 120 | 101 | 2 |
| CF150CS | CF150 | 171 | 152 | 2 |
| CF200CS | CF200 | 222 | 203 | 2 |
| CF250CS | CF250 | 272.7 | 254 | 2 |
| CF275CS | CF275 | 294 | 269 | 2 |
| CF350CS | CF350 | 376.7 | 356.50 | 2 |
| CF400CS | CF400 | 401.3 | 419.10 | 2 |
Special Sizes Available Upon Request.
