MESCO Color Coated Aluminum Coil | PVDF Fluorocarbon Pre-Painted Aluminum Coil
group nameAluminum coils
-
Min Order1 bag
brand nameMESCO Steel Wholesaler
modelMS-CCAL-PVDF
payment methodT/T, L/C
-
update timeWed, 23 Sep 2026 12:19:22 GMT
Paramtents
Coating System PVDF (Kynar 500 / Hylar 5000)
Substrate Alloy AA1050 / AA1060 / AA3003 / AA3004 / AA5052
Top Coat Dry Film Primer 5 micron + Top 20 to 22 micron
Back Coat Dry Film Primer 5 micron + Back 5 micron
Standard Gloss 25 +/- 5 at 60 degrees
Pencil Hardness >= HB
T-Bend 1T, no paint peel
Salt Spray >= 1000 hours
Packging & Delivery
Min Order1 bag
Briefing
Detailed
PVDF Color Coated Aluminum Coil for Architectural Cladding
Factory direct fluorocarbon pre-painted aluminum coils in RAL colors with ASTM-grade outdoor durability.
What Is PVDF Color Coated Aluminum Coil?
MESCO PVDF color coated aluminum coil is a continuous coil-coated aluminum sheet using a fluorocarbon (PVDF) resin topcoat over a corrosion-resistant primer. The PVDF top coat provides outstanding color retention, chalk resistance, and weather durability for outdoor architectural applications such as roofing, cladding, curtain walls, and composite panels.
The aluminum substrate (alloys AA1050, AA1060, AA3003, AA3004, AA5052) is cleaned, chemically pre-treated, primed, and then coated with a PVDF topcoat on the front side and a protective back coat on the reverse. Coils are produced on a continuous coil coating line, then cured in a precision-controlled oven.
Key Features
ASTM-Grade Weather Resistance
PVDF top coat passes 2000 h OUVA-340 UV aging and 1000 h salt spray. Color stability under extreme sun, coastal, and industrial atmospheres.
Excellent Color Retention
Chalking grade ≤ 1 after 2000 h ASTM G154 cycle. Long-term gloss retention for architectural facades and roofing.
Easy Fabrication
1T T-bend and 9 J reverse impact ratings allow bending, roll-forming, stamping, and profiling without paint peel or cracking.
Custom RAL Colors
Wide RAL color range plus custom matching. Small MOQ for special colors. Substrate alloy and temper selectable per project.
Lightweight & Recyclable
Aluminum substrate weighs about one-third of equivalent steel. 100 percent recyclable with no loss of properties.
Stable Lead Times
3000 tons monthly capacity. Slitting, cut-to-length, and protective film services available on the same line.
Technical Specifications
| Parameter | Front Side | Back Side |
|---|---|---|
| Primer Dry Film | 5 micron | 5 micron |
| Top / Back Coat Dry Film | 20 - 22 micron | 5 micron |
| Total Coating Thickness | 25 - 27 micron | 10 micron |
| Coating System | PVDF (Kynar 500 / Hylar 5000) | Polyester / Epoxy |
| Substrate Alloys | AA1050, AA1060, AA3003, AA3004, AA5052 | |
| Standard Gloss (60 degrees) | 25 +/- 5 | |
| Cross-Cut Adhesion | No paint peel (ASTM D3359) | |
| Pencil Hardness | >= HB | |
| T-Bend | 1T, no paint peel | |
| Reverse Impact | 9 J, no paint peel | |
| MEK Solvent Rub | 100 cycles, no break-through | |
| Scratch Resistance | 1000 g load, no break-through | |
Durability & Corrosion Test Results
Humidity Resistance
Non-condensing humidity chamber 1000 h. No blistering, cracking, peeling, color change, gloss change, or hardness change.
Acid & Alkali Resistance
5 percent HCl 24 h and 5 percent NaOH 24 h. No visible change to coating appearance.
Boiling Water Resistance
100 deg C boiling water 2 h. No gloss loss, discoloration, cracking, blistering, or peeling observed.
Neutral Salt Spray
1000 h ASTM B117. Blister grade below 2-S3. Chalking grade not lower than 8 by ASTM D4214 evaluation.
UV Accelerated Aging
OUVA-340 fluorescent UV lamp 2000 light hours. Chalking grade ≤ 1. No blister, cracking, or other defects.
Color Matching Service
RAL color matching plus custom samples. Weather-resistant colors may be substituted with similar shades for durability.
Production Process
Substrate Inspection
Incoming aluminum coils verified for alloy grade, temper, thickness tolerance, and surface quality before release.
Cleaning & Pre-Treatment
Alkaline degreasing, water rinse, and chrome-free conversion coating for paint adhesion and corrosion resistance.
Primer Coating
5 micron corrosion-resistant primer applied by precision reverse roller coater on both sides.
PVDF Top Coat
20 to 22 micron PVDF top coat applied continuously. Controlled viscosity ensures smooth uniform finish.
Oven Curing
Multi-zone curing oven with precise peak metal temperature control guarantees full cross-linking of the coating.
Slitting & Packing
Cut to requested width, cut-to-length, protective film applied, and packed in seaworthy export packaging.
Typical Applications
Architectural Roofing
Standing seam roofing, trapezoidal sheets, and tile-press profiles for warehouses, stadiums, and airports.

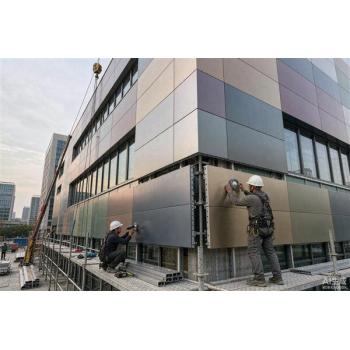

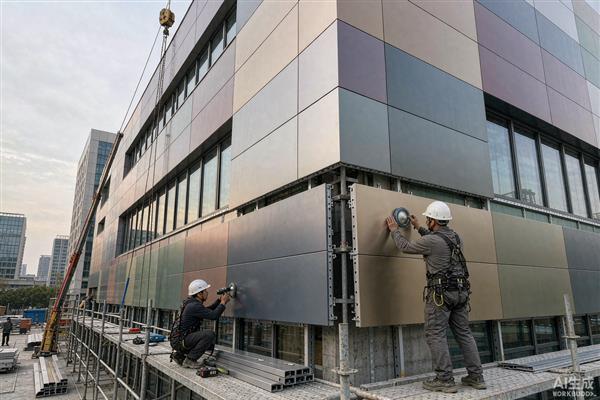

Curtain Wall Cladding
Composite panels and cassette cladding systems for high-rise commercial and cultural buildings.
Composite Panels
Top skin of aluminum composite panels (ACP) for facade decoration and signage back panels.
Interior Ceiling
Linear ceilings, baffles, and decorative panels for airports, malls, and transit stations.
Advertising Signs
Light boxes, outdoor billboards, and signage requiring long outdoor color retention.
Rainware & Gutters
Pre-painted aluminum gutters, downspouts, and roof edge trims for residential projects.
Frequently Asked Questions
What is the difference between PVDF and PE coating?
PVDF (polyvinylidene fluoride) is a fluorocarbon resin offering superior UV and weather resistance, ideal for outdoor facades with 15 to 20 year color retention. PE (polyester) is more economical and used for indoor or short term outdoor applications. MESCO recommends PVDF for projects requiring long-term color stability and warranty.
Which aluminum alloy should I choose for roofing?
AA3003 and AA3004 are the most common alloys for roofing and cladding thanks to their balanced strength and formability. AA5052 is recommended for marine or highly corrosive environments. AA1050 / AA1060 suit decorative and ceiling use where deep drawing is required.
What coil thickness range can MESCO supply?
Standard coil thickness ranges from 0.18 mm to 1.5 mm, with coil widths up to 1800 mm. Cut-to-length sheets up to 6000 mm available. Custom tolerances and slit widths on request.
Can MESCO match my custom RAL color?
Yes. Send a RAL number or physical color sample; our lab will prepare a lab dip within 5 to 7 days. For weather-resistant outdoor projects, we may recommend a substitute color with similar hue but proven UV durability.
How long is the lead time for bulk orders?
Standard RAL colors in standard thickness ship in 15 to 25 days. Custom colors require an extra 7 days for lab matching. Express production available for urgent project needs.
Request a Free Quote
Send your alloy grade, thickness, width, color, and quantity to mesco..........com.cn. A MESCO engineer will reply with a detailed solution within 6 hours.
- Email: mesco..........com.cn
- Phone: +86 15134565556
- Location: Dalian, China
