Automatic Broiler Chicken Poultry Auger Pan Feeding System
group nameBroiler Pan Feeding
-
Min Order1 piece
brand nameKaleter+poultry farming equipment + manufacture
modelBroiler Pan Feeding
payment methodL/C, Western Union, T/T
-
update timeWed, 01 Jun 2022 10:35:07 GMT
Packging & Delivery
Min Order1 piece
Briefing
Detailed

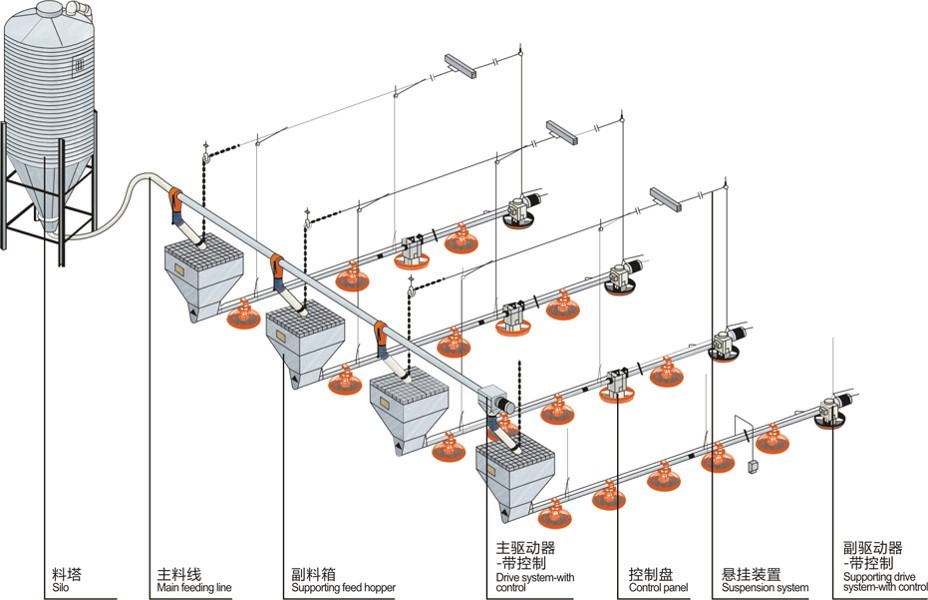

Automatic Broiler pan Feeding System
The broiler pan feeding system automatically delivers feed from the hopper to each feed pan. There is a sensor at the end of the feeding line which controls the motor on and off to achieve automatically feed delivery.
Components :
Hopper volume: volume 70 kgs, 275g galvanized steel material, thickness 1.0mm
Delivery Pipe with auger: ￠45mm pipe, South Africa auger
Feed sensor or moveable control pan for brood
Drive motor: stop delivery auger automatically
A suspension system, Manual winch, or auto motor control is available for the feeding line.
Anti-roost syste
Delivery System
Feed pipe: 4 holes /3 m or 3 holes /m
Pipe diameter: 45mm 275g/m2 galvanized steel thickness: 1.2mm
Auger: South Africa Technical system
Delivery capacity : 450kgs/h
Suspension system :
The suspension system of the broiler pan feeding line consists of the winch, pulley, clamp, and steel wire.
The height of the pan feeding system shall be adjusted timely according to chicks' age.
the pan feeding system can be lifted wholly , which is convenient for cleaning and give birds more activity space.
There are two types of winches for option, motor control or manual control.
