FTTH Outdoor ADSS 24 48 Core ADSS Fiber Optic Cable
group nameFiber Optic Cable
-
Min Order1 meter
brand nameSUNSHINE
modelADSS 24 48
payment methodL/C, T/T
-
update timeThu, 15 Sep 2022 14:03:13 GMT
Paramtents
Modle Number ADSS
Core Type SM MM
Span 100-1500m
Type Coaxial
Material of Sheath PE or AT
Application FTTH,Access Network
Packging & Delivery
Weight0.01kg / meter
Min Order1 meter
Briefing
Detailed
Fiber Optic Cable
Single mode or multi-mode fibers, meeting or exceeding the pertinent IEC*, ITU and EIA/TIA specifications. Up to 24 fibers are enclosed in a
PBT tube. The fibers are colour coded for easy identification. The tube is filled with water blocking, thixotropic gel to prevent the ingress of
water. Dry water swelling glass yarn is laid over the tube to serve as peripheral strength members and to block the cable from water
penetration.
|

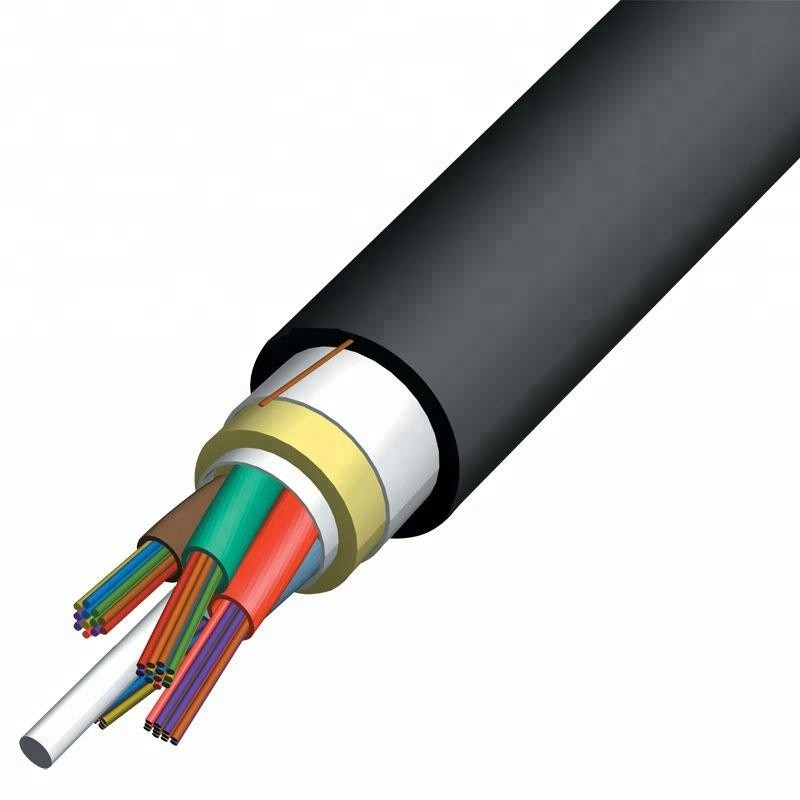

Cable Structure and Parameter |
|||
|
Fiber Count |
12 |
48 |
|
|
Number of tube & Fillers |
1+4 |
4+1 |
|
|
Fiber number per tube |
12 |
12
|
|
Central strength member, FRP diameter (mm) | 1.5 | 1.5 | |
PBT Loose tube diameter (mm) | 2.0 | 2.0 | |
Sheath thickness (mm) | 1.8 | 1.8 | |
Cable diameter (mm) | 10.2 | 10.5 | |
Cable weight (kg/km) | 100 | 105 | |
Tensile strength(N) while fiber strain is ≤0.33% | 3000 | 3000 | |
