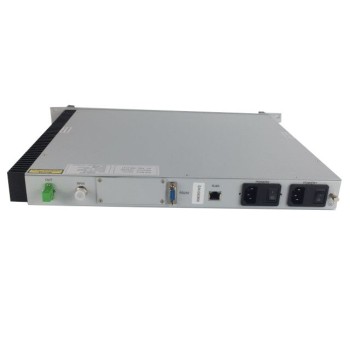

1310nm Fiber Optical Transmitter
group nameOptical Transmitter
-
Min Order1 piece
brand nameSUNSHINE
model1310nm Fiber Optical Transmitter
payment methodL/C, T/T
-
update timeWed, 14 Sep 2022 10:22:14 GMT
Paramtents
Appearance Material Cast Aluminum Waterproof Shell
Output(mW) 2~36mW
Fiber Connector FC/APC,SC/APC
Packging & Delivery
Weight0.10kg / piece
Min Order1 piece
Briefing
Adopts cast aluminum waterproof shell .
Adapt to -40℃~ +50℃.
Detailed
1310nm Fiber Optical Transmitter
1310nm optical transmitters are mainly used in CATV 1310nm optical fiber transmission network. We also developed the outdoor type which
adopts cast aluminum waterproof shell to solve the engineering problem that the remote areas cannot build the machine room. The outdoor
type can adapt to -40℃~ +50℃ field work environment.
|
1310 Optical Transmitter--TLM-OLTx8600 |
|||
|
Item |
Specification |
Item
|
Specification
|
|
Output(mW) |
2~36mW |
CSO (dBm) |
≥60 |
|
Wavelength(nm) |
1290~1310 |
RF In(dBuV) |
80±5 |
Fiber Connector | FC/APC,SC/APC | Unflatness | ≤0.75 |
Bandwidth(MHz) | 47~862 | Power loss(W) | ≤30 |
Channels | 85 | Power Voltage(V) | 220V(110~254) |
C/N(dB) | ≥51 | Working Tem(℃) | 0~45 |
CTB(dBm) | ≥65 | Size | 19×15×1.75" |
