Conveyor Roller Chain 81XH Lumber Conveyor Chains
- US $0.5
1 - 10000 piece
group nameLumber Conveyor Chain
-
Min Order1 piece
brand nameCTS-ChinaTransmissionS
model81XH Lumber Conveyor Chains
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeSat, 06 Dec 2025 05:43:09 GMT
Paramtents
Material 40Mn
Color Natural
Surface Treatment Shot Peening/Heat Treatment/Plating/Lubrication
Accuracy High precision conveyor chain
Quality Durable conveyor chain
Interchangeability Directly interchangeable with other brands
Packging & Delivery
Min Order1 piece
Briefing
Detailed
About 81XH Conveyor Roller Chain

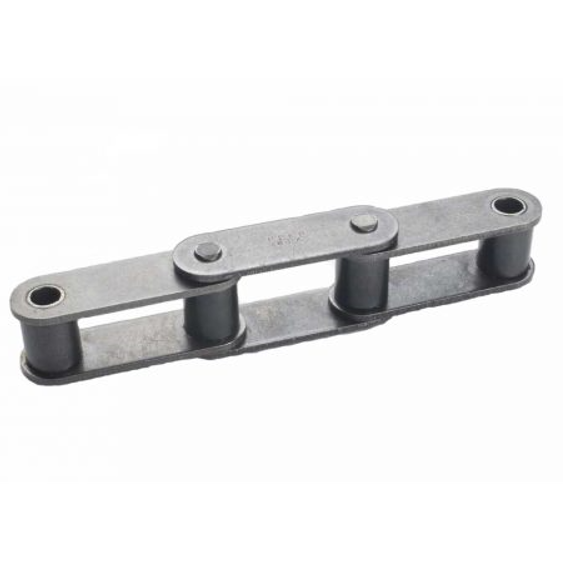

CTS® 81XH Lumber Conveyor Chain
The 81XH chain features a 2.609" pitch and is a steel bushed roller chain within the engineer class. Renowned for its heavy-duty design with thicker sidebars, it excels in shock-load resistance and tensile strength. Manufactured to ANSI specifications, it's interchangeable with other brands. We also provide 81XH sprockets, 81X chain attachments, and 81X chain breakers. Widely used globally in lumber, agriculture, mills, grain handling, and various drive and conveying applications due to its superior strength and effective design.
For a quotation or other information on the 81XH lumber conveyor Chain, please contact us and we will be happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
81X Series Lumber Conveyor Chain Specifications
81XH lumber Conveyor Chain Dimensions
- Pitch(P): 66.27 mm
- Roller diameter(d1): 23.00 mm
- Width between inner plates(b1): 27.78 mm
- Pin diameter(d2): 11.10 mm
- Pin length(L): 60.7 mm
- Pin length(Lc): 65.1 mm
- Inner plate depth(h2): 31.35 mm
- Plate thickness(t/T): 7.94/5.55 mm
- Tensile strength: 151.9/34523 kN/lbf
- Weight per meter: 5.88 kg/m
