Rice Harvester Chains

  • group nameRice Harvester Chains

  • Min Order1 piece

  • brand nameCTS-ChinaTransmissionS

  • modelRice Harvester Chains

  • payment methodT/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash

  • update timeSun, 07 Dec 2025 13:30:20 GMT

Paramtents

  • Material Carbon Steel

  • Color Natural

  • Surface Treatment Shot Peening/Heat Treatment/Plating/Lubrication

  • Accuracy High precision harvester chain

  • Quality Durable harvester chain

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

Rice Harvester Chains efficiently gather rice crops, featuring durable construction for harvesting grain in paddy fields.

Detailed

About Rice Harvester Chains

Our Rice Harvester Chains are specially designed to meet the demanding requirements of rice harvesting operations. Built for strength, durability, and reliability, these chains are ideal for use in various models of rice combine harvesters, ensuring smooth and efficient power transmission and material handling under harsh field conditions.



Our rice harvester chains are specially made for use in rice harvesting machines. They include clamping transmission chains with two chain pitch options: 33mm and 35mm. The inner chain plate widths come in six sizes: 22mm, 25mm, 30mm, 35mm, 50mm, and 58mm. The link joints are available in different heights and angles and can be easily combined to fit the exact needs of machines like grain combines and power threshers.


Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Rice Harvester Chain Technical Data

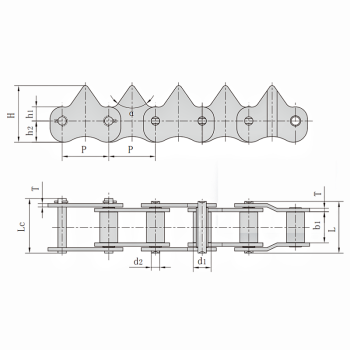

Rice Harvester Chains Dimension Chart
Rice Harvester Chains Dimension Chart
CTS® Chain No.PitchRoller
diameter
Width
between
inner plates
Pin
diameter
Pin
length
Tooth
angle
Plate
dimension
Plate
thickness
Tensile
strength
Average
tensile
strength
Pd1
max
b1
min
d2
max
L
max
Lc
max
αh1h2 HTQ
min
Qo
mmmmmmmmmmmmmmmmmmmmkN/lbfkN
3322-632013312.722.0 5.94 36.438.470°1015 402.4219.60/445522.5
3325-231603312.825.0 7.00 35.938.760°1013 431.6021.60/490924.5
3325-235503312.825.07.0035.938.790°1013 381.6021.60/490924.5
3325-492003312.825.07.0035.938.770°1013 381.6021.60/490924.5
3325-90593312.725.05.9439.442.690°1013 382.4219.61/445722.5
3325-9059F13310.525.05.9439.442.690°1013 382.4219.61/445722.5
3330-271503312.830.07.0040.943.770°1013 381.6021.60/490924.5
3330-283613312.830.07.0040.943.760°1013 431.6021.60/490924.5
3330-38523312.730.05.9444.447.690°1013 382.4219.61/445722.5
3330-66402F13312.730.05.9444.447.660°1013 432.4219.61445722.5
3330-66402F23310.530.05.9444.447.660°1013 432.4219.61/445722.5
3330-743113312.730.05.9444.447.670°1013 382.4219.61/445722.5
3330-74311F13310.530.05.9444.447.670°1013 382.4219.61/445722.5
Download For More Rice Harvester Chain Size
