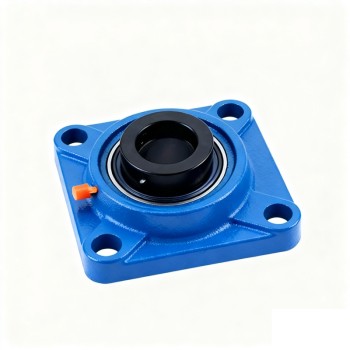

HCF200 Square Flanged Bearing Units provide secure four-bolt mounting, strong shaft support, and reliable sealed performance.
Detailed

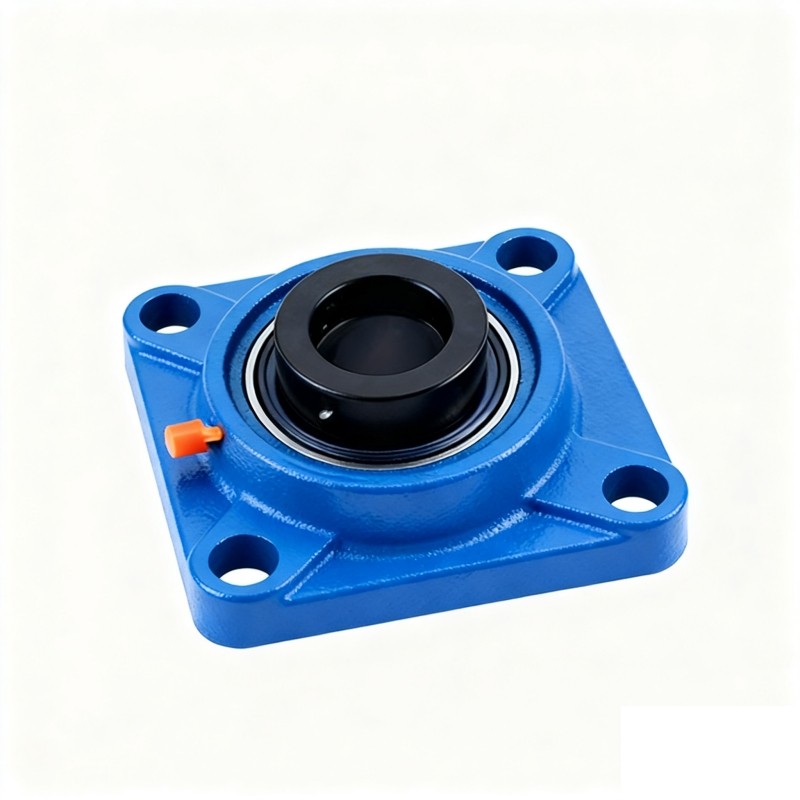

Square Flanged Ball Bearing Units are ready-to-install housed bearing assemblies that combine a deep-groove ball bearing insert with a four-bolt square flange housing. They are designed for secure,face-mounted installation, making them ideal for applications where a shaft passes through a wall, frame, or mounting panel and requires stable and reliable support.
These units feature a robust square four-bolt flange design that ensures firm attachment to flat surfaces and provides excellent resistance to radial and moderate axial loads.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
HCF200 Square Flanged Units Dimensions
Unit
NO. | Dimensions(mm/in.) | Bolt Size
mm/in. |
Bearing
No | Housing
No. | Weight
(kg) |
|---|
| d | a | e |
i | 9 | I |
S | Z | B1 |
n |
|---|
| HCF204 | 20 | 86 | 64 |
15 | 12 | 25.5 | 12 |
41.6 | 43.7 | 17.1 | M10 |
HC204 | F204 | 0.60 |
| 204-12 | 3/4 | 3-3/8 | 2-33/64 |
19/32 | 15/32 | 1 | 15/32 |
1-41/64 | 1.720 | 0.673 | 3/8 |
HC204-12 | 0.60 |
| HCF205 | 25 | 95 | 70 |
16 | 14 | 27 | 12 |
42.9 | 44.4 | 17.5 | M10 |
HC205 | F205 | 0.79 |
| 205-13 | 13/16 | 3-3/4 | 2-3/4 |
5/8 | 35/64 | 1-1/16 | 15/32 |
1-11/16 | 1.748 | 0.689 | 3/8 |
HC205-13 | 0.84 |
| 205-14 | 7/8 | HC205-14 | 0.83 |
| 205-15 | 15/16 | HC205-15 | 0.81 |
| 205-16 | 1 | HC205-16 | 0.79 |
| HCF206 | 30 | 108 | 83 |
18 | 14 | 31 | 12 |
48.1 | 48.4 | 18.3 | M10 |
HC206 | F206 | 1.10 |
| 206-17 | 1-1/16 | 4-1/4 | 3-17/64 |
45/64 | 35/64 | 1-7/32 | 15/32 |
1-57/64 | 1.906 | 0.720 | 3/8 |
HC206-17 | 1.15 |
| 206-18 | 1-1/8 | HC206-18 | 1.12 |
| 206-19 | 1-3/16 | HC206-19 | 1.10 |
| 206-20 | 1-1/4 | HC206-20 | 1.07 |
| HCF207 | 35 | 117 | 92 |
19 | 16 | 34 | 14 |
51.3 | 51.1 | 18.8 | M12 |
HC207 | F207 | 1.47 |
| 207-20 | 1-1/4 | 4-39/64 | 3-5/8 |
3/4 | 5/8 | 1-11/32 | 35/64 |
2-1/64 | 2.012 | 0.740 | 7/16 |
HC207-20 | 1.54 |
| 207-21 | 1-5/16 | HC207-21 | 1.50 |
| 207-22 | 1-3/8 | HC207-22 | 1.47 |
| 207-23 | 1-7/16 | HC207-23 | 1.45 |
| HCF208 | 40 | 130 | 102 |
21 | 16 | 36 | 16 |
55.9 | 56.3 | 21.4 | M14 |
HC208 | F208 | 1.80 |
| 208-24 | 1-1/2 | 5-1/8 | 4-1/64 |
53/64 | 5/8 | 1-27/32 | 5/8 |
2-13/64 | 2.217 | 0.843 | 1/2 |
HC208-24 | 1.85 |
| 208-25 | 1-9/16 | HC208-25 | 1.81 |
| HCF209 | 45 | 137 | 105 |
22 | 18 | 38 | 16 |
56.9 | 56.3 | 21.4 | M14 |
HC209 | F209 | 2.13 |
| 209-26 | 1-5/8 | 5-13/32 | 49/64 |
55/64 | 23/32 | 1-1/2 | 5/8 |
2-15/64 | 2.217 | 0.843 | 1/2 |
HC209-26 | 2.24 |
| 209-27 | 1-11/16 | HC209-27 | 2.19 |
| 209-28 | 1-3/4 | HC209-28 | 2.15 |
| HCF210 | 50 | 143 | 111 |
22 | 18 | 40 | 16 |
60.1 | 62.7 | 24,6 | M14 |
HC210 | F210 | 2.51 |
| 210-29 | 1-13/16 | 5-5/8 | 4-3/8 |
55/64 | 23/32 | 1-9/16 | 5/8 |
2-3/8 | 2.469 | 0.969 | 1/2 |
HC210-29 | 2.66 |
| 210-30 | 1-7/8 | HC210-30 | 2.60 |
| 210-31 | 1-15/16 | HC210-31 | 2.54 |
| 210-32 | 2 | HC210-32 | 2.48 |
| HCF211 | 55 | 162 | 130 |
25 | 20 | 43 | 19 |
68.6 | 71.4 | 27.8 | M16 |
HC211 | F211 | 3.39 |
| 211-32 | 2 | 6-3/8 | 5-1/8 |
63/64 | 25/32 | 1-11/16 | 3/4 |
2-45/64 | 2.811 | 1.094 | 5/8 |
HC211-32 | 3.69 |
| 211-33 | 2-1/16 | HC211-33 | 3.51 |
| 211-34 | 2-1/8 | HC211-34 | 3.44 |
| 211-35 | 2-3/16 | HC211-35 | 3.36 |
| HCF212 | 60 | 175 | 143 |
29 | 20 | 48 | 19 |
75.8 | 77.8 | 31.0 | M16 |
HC212 | F212 | 4.27 |
| 212-36 | 2-1/4 | 6-57/64 | 5-5/8 |
1-9/64 | 25/32 | 1-57/64 | 3/4 |
2-63/64 | 3.063 | 1.22 | 5/8 |
HC212-36 | 4.28 |
| 212-37 | 2-5/16 | HC212-37 | 4.34 |
| 212-38 | 2-3/8 | HC212-38 | 4.27 |
| 212-39 | 2-7/16 | HC212-39 | 4.26 |
| HCF213 | 65 | 187 | 149 |
30 | 22 | 50 | 19 |
81.6 | 85.7 | 34.1 | M16 |
HC213 | F213 | 5.35 |
| 213-40 | 2-1/2 | 7-23/64 | 5-55/64 |
1-3/16 | 55/64 | 1-31/32 | 3/4 |
3-7/32 | 3.374 | 1.343 | 5/8 |
HC213-40 | 5.45 |
| 213-41 | 2-9/16 | HC213-41 | 5.34 |
| HCF214 | 70 | 193 | 152 |
31 | 22 | 54 | 19 |
82.6 | 85.7 | 34.1 | M16 |
HC214 | F214 | 5.84 |
| 214-42 | 2-5/8 | 7-19/32 | 5-63/64 |
1-7/32 | 55/64 | 2-1/8 | 3/4 |
3-1/4 | 3.374 | 1.343 | 5/8 |
HC214-42 | 5.78 |
| 214-43 | 2-11/16 | HC214-43 | 5.97 |
| 214-44 | 2-3/4 | HC214-44 | 5.85 |
| HCF215 | 75 | 200 | 159 |
34 | 22 | 56 | 19 |
88.8 | 92.1 | 37.3 | M16 |
HC215 | F215 | 6.43 |
| 215-45 | 2-13/16 | 7-7/8 | 6-17/64 |
1-11/32 | 55/64 | 2-7/32 | 3/4 |
3-1/2 | 3.626 | 1.426 | 5/8 |
HC215-45 | 6.73 |
| 215-46 | 2-7/8 | HC215-46 | 6.60 |
| 215-47 | 2-15/16 | HC215-47 | 6.47 |
| 215-48 | 3 | HC215-48 | 6.33 |
| HCF216 | 80 | 208 | 165 |
34 | 22 | 58 | 23 |
91.9 | 95.2 | 37.3 | M20 |
HC216 | F216 | 7.59 |
| 216-49 | 3-1/16 | 8-3/16 | 6-1/2 |
1-11/32 | 55/64 | 2-9/32 | 29/32 |
3-5/8 | 3.748 | 1.469 | 3/4 |
HC216-49 | 7.79 |
| 216-50 | 3-1/8 | HC216-50 | 7.65 |
| 216-51 | 3-3/16 | HC216-51 | 7.50 |
| HCF217 | 85 | 220 | 175 |
36 | 24 | 63 | 23 |
86.4 | 73.8 | 23.4 | M20 |
HC217 | F217 | 8.52 |
| 217-52 | 3-1/4 | 8-21/23 | 6-57/64 |
1-27/64 | 15/16 | 2-15/32 | 29/32 |
3-13/32 | 2.906 | 0.921 | 3/4 |
HC217-52 | 8.71 |
| 217-53 | 3-5/16 | HC217-53 | 8.59 |
| 217-55 | 3-7/16 | HC217-55 | 8.34 |
| HCF218 | 90 | 235 | 187 |
40 | 24 | 68 | 23 |
88.1 | 72.6 | 24.5 | M20 |
HC218 | F218 | 9.95 |
| 218-56 | 3-1/2 | 9-1/4 | 7-23/64 |
1-37/64 | 15/16 | 2-11/16 | 29/32 |
3-15/32 | 3.7795 | 1.563 | 3/4 |
HC218-56 | 10.04 |
