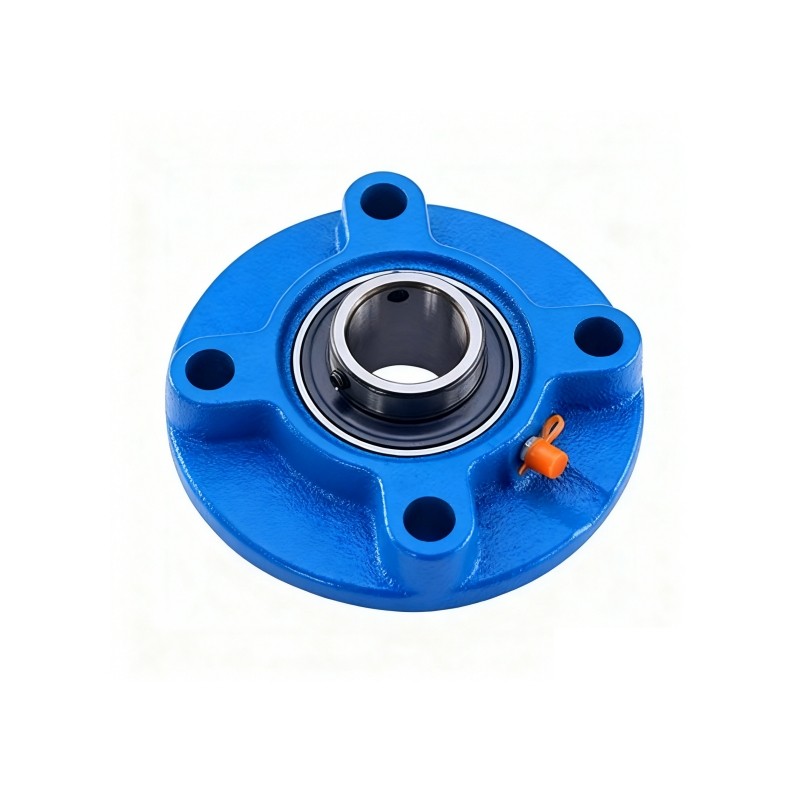

UCFC200 Flanged Cartridge Bearing Units

UCFC200 Flanged Cartridge Bearing Units

group nameFlange Cartridge Units
Min Order1 piece
brand nameCTS-ChinaTransmissionS
modelUCFC 200
payment methodT/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update timeFri, 05 Dec 2025 18:47:40 GMT

contact supplier

Paramtents

Bearing Insert UC2 Series
Housing Type 4 bolts round flange housing FC200
Material Cast Iron

Packging & Delivery

Min Order1 piece

Briefing

UCFC200 Flanged Cartridge Units offer rigid mounting, secure shaft locking, and reliable sealing in industrial machinery.

Detailed

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UCFC200 Flange Cartridge Units Dimensions

UCFC200 Flange Cartridge Units Dimensions

UCFC200 Flange Cartridge Units Dimensions

UCFC200 Flange Cartridge Units Dimensions

Unit NO.	d	Dimensions(mm/in.)												n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	P	(e)	i	S	j	k	g	f	z	t	B	n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UCFC201	12	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC201	FC201	0.70
2018	1/2	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	932	13/16	24409	1-1/8	1-9/32	1.2205	0.500	3/8	UC201-8	FC201	0.69
UCFC202	15	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC202	FC202	0.69
202-9	9/16	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9732	13/16	2.4409	1-1/8	1-9/32	1.2205	0.500	3/8	UC202-9		0.69
202-10	5/8	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9732	13/16	2.4409	1-1/8	1-9/32	1.2205	0.500	3/8	UC202-10		0.69
UCFC203	17	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC203	FC203	0.68
203-11	11/16	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	932	13/16	2.4409	1-1/8	1-9732	1.2205	0.500	3/B	UC203-11	FC203	0.67
UCFC204	20	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC204	FC204	0.66
204-12	3/4	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9/32	13/16	2.4409	1-1/8	1-9732	1.2205	0.500	3/B	UC204-12	FC204	0.66
UCFC205	25	115	90	63.6	10	12	6	7	21	70	29.8	34.0	34.1	14.3	M10	UC205	FC205	0.89
205-13	13/16	4-17/32	3-35/64	2-1/2	25/64	15/32	15/64	9/32	53/64	2.7559	1-11/64	1-11/32	1.3425	0.563	3/8	UC205-13		0.92
205-14	7/8															UC205-14		0.91
205-15	15/16															UC205-15		0.89
205-16	1															UC205-16		0.88
UCFC206	30	125	100	70.7	10	12	8	8	23	80	32.2	36.5	38.1	15.9	M10	UC206	FC206	1.18
206-17	1-1/16	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-17/64	1-7/16	1.5000	0.626	3/8	UC206-17		1.19
206-18	1-1/8															UC206-18		1.20
206-19	1-3/16															UC206-19		1.18
206-20	1-1/4															UC206-20		1.17
UCFC207	35	135	110	77.8	11	14	8	9	26	90	36.4	41.0	42.9	17.5	M12	UC207	FC207	1.53
207-20	1-1/4	5-5/16	4-21/64	3-1/16	7/16	35/64	5/16	2364	1-1/32	3.5433	1-7/16	1-5/8	1.6890	0.689	7/16	UC207-20		1.59
207-21	1-5/16															UC207-21		1.56
207-22	1-3/8															UC207-22		1.53
207-23	1-7/16															UC207-23		1.50
UCFC208	40	145	120	84.8	11	14	10	9	26	100	41.2	45.5	49.2	19.0	M12	UC208	FC208	1.85
208-24	1-1/2	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-5/8	1-51/64	1.9370	0.748	7/16	UC20B-24		1.89
208-25	1-9/16	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-5/8	1-51/64	1.9370	0.748	7/16	UC208-25		1.86
UCFC209	45	160	132	93.3	10	16	12	14	26	105	40.2	44.5	49.2	19.0	M14	UC209	FC209	2.53
209-26	1-518	6-19/64	5-13/64	3-43/64	25/64	5/8	15/32	35/64	1-1/32	4.1339	1-37/64	1-3/4	1.9370	0.748	1/2	UC209-26		2.63
209-27	1-11/16															UC209-27		2.59
209-28	1-3/4															UC209-28		2.55
UCFC210	50	165	138	97.6	10	16	12	14	28	110	42.6	47.5	51.6	19.0	M14	UC210	FC210	2.78
210-29	1-13/16	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-11/16	1-7/8	2.0315	0.748	1/2	UC210-29		2,90
210-30	1-7/8															UC210-30		2.85
210-31	1-15/16															UC210-31		2.80
210-32	2															UC210-32		2.76
UCFC211	55	185	150	106.1	13	19	12	15	31	125	46.4	51.0	55.6	22.2	M16	UC211	FC211	3.86
211-32	2	7-9/32	5-29/52	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	1-53/64	2-1/64	2.1890	0.874	5/8	UC211-32		4.01
211-33	2-/16															UC211-33		3.95
211-34	2-1/8															UC211-34		3.91
211-35	2-3/16															UC211-35		3.84
UCFC212	60	195	160	113.1	17	19	12	15	36	135	56.7	61.5	65.1	25.4	M16	UC212	FC212	4.69
212-36	2-1/4	7-11/16	6-19/64	4-29/64	43/64	3/4	15/32	19/32	1-27/64	5.3150	2-15/64	2-27/64	2.5630	1.000	5/8	UC212-36		4.82
212-37	2-5/16															UC212-37		4.74
212-3B	2-318															UC212-38		4.67
212-39	2-7/16															UC212-39		4.60
UCFC213	65	205	170	120.2	16	19	14	15	36	145	55.7	60.5	65.1	25.4	M16	UC213	FC213	5.30
213-40	2-1/2	8-51/64	6-11/16	4.47/64	518	3/4	3564	19/32	1-27/64	5.5118	2-3/16	2-25/64	2.5630	1.000	5/8	UC213-40		5.39
213-41	2-9/16	8-51/64	6-11/16	4.47/64	518	3/4	3564	19/32	1-27/64	5.5118	2-3/16	2-25/64	2.5630	1.000	5/8	UC213-41		5.30
UCFC214	70	215	177	125.1	17	19	14	18	40	150	61.4	67.5	74.6	30.2	M16	UC214	FC214	6.46
214-42	2-5/8	8-15/32	6-31/32	4-59/64	43/64	3/4	35/64	23/32	1-37/64	5.9055	2-13/32	2-21/32	2.9370	1.189	5/8	UC214-42		6.67
214-43	2-11/L6															UC214-43		6.57
214-44	2-3/4															UC214-44		6.47
UCFC215	75	220	184	130.1	18	19	16	18	40	160	62.5	67.5	77.8	33.3	M16	UC215	FC215	6.86
215-45	2-13/16	8-21/32	7-1/4	5-1/8	23/32	34	518	23/32	1-3764	6.2992	2-15/32	2-21/32	3.0630	1.311	5/8	UC215-45		6.86
215-46	2-78															UC215-46		7.11
215-47	2-15/16															UC215-47		7.00
215-48	3															UC215-48		6.80
UCFC216	80	240	200	141.4	18	23	16	18	42	170	67.3	72.5	82.6	33.3	M20	UC216	FC216	8.47
216-49	3-1/16	9-29/64	7-78	5-9/16	23/32	29/32	518	23/32	1-21/32	6.6929	2-21/32	2-5564	3.2520	1.311	3/4	UC216-49		8.65
216-50	3-1/8															UC216-50		8.52
216-51	3-3/16															UC216-51		8.39
UCFC217	85	250	208	147.1	18	23	18	20	45	180	69.6	74.6	85.7	34.1	M20	UC217	FC217	10.18
217-52	3-1/4	9-27/32	8-3/16	5-51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-3/4	2-15/16	3.3740	1.343	3/4	UC217-52		10.30
217-53	3-5/16															UC217-53		10.26
217-55	3-7/16															UC217-55		9.97
UCFC218	90	265	220	155.5	22	23	18	20	50	190	78.3	83.5	96.0	39.7	M20	UC218	FC218	12,24
218-56	3-1/2	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	3-3/32	3-9/32	3.7795	1.5630	3/4	UC218-56	FC218	12.35
