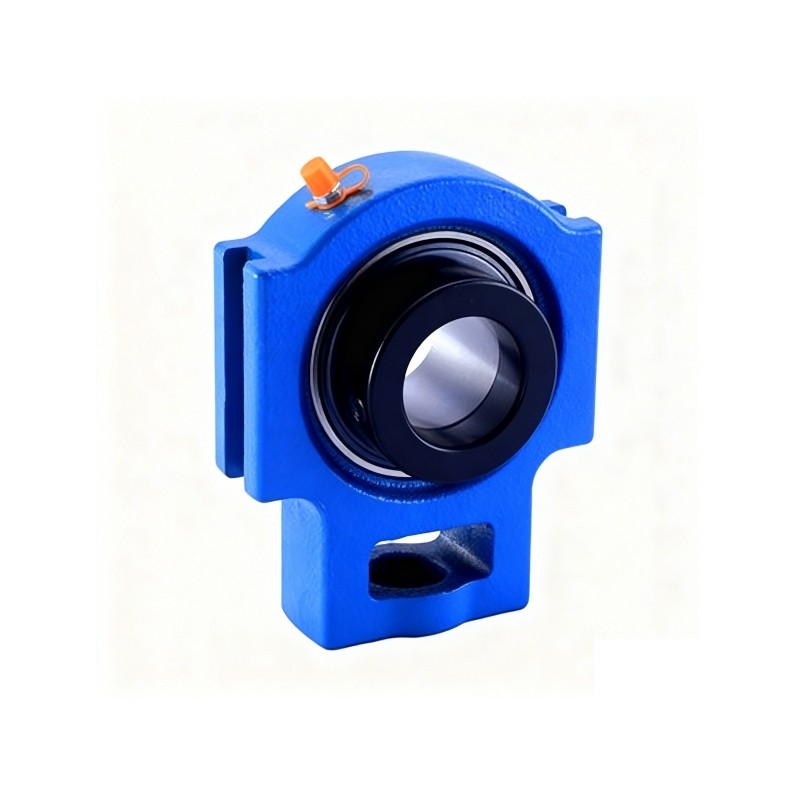

HCT200 Take-up Bearing Units

HCT200 Take-up Bearing Units

group nameTake-up Bearing Units
Min Order1 piece
brand nameCTS-ChinaTransmissionS
modelHCT 200
payment methodT/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash
update timeFri, 05 Dec 2025 19:29:24 GMT

contact supplier

Paramtents

Bearing Insert HC2 Series
Housing Type Take-up housing T200
Material Cast Iron

Packging & Delivery

Min Order1 piece

Briefing

HCT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications.

Detailed

Take-Up Bearing Units are adjustable bearing assemblies designed to maintain shaft or belt/chain tension and accommodate misalignment in conveyor systems and other material-handling equipment. The housing is typically made from high-strength cast iron or ductile iron and is engineered with a slot or guide-rail mechanism to enable smooth sliding.t dust, moisture, and contaminants—ensuring long service life and minimal maintenance.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

HCT200 Take-up Bearing Units Dimensions

HCT200 Take-up Bearing Units Dimensions

HCT200 Take-up Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)																Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	0	9	P	q	S	b	k	e	a	W	j	I	h	B1	n	Bearing No.	Housing No.	Weight (kg)
HCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	43.7	17.1	HC204	T204	0.78
204-12	3/4	5/8	25/64	1-1/16	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	13/16	2-13/32	1.720	0.673	HC204-12	T204	0.78
HCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	44.4	17.5	HC205	T205	0.86
205-13	13/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1.748	0.689	HC205-13		0.91
205-14	7/8																HC205-14		0.90
205-15	15/16																HC205-15		0.8
205-16	1																HC205-16		0.86
HCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	48	18.3	HC206	T206	1.29
206-17	1-1/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	4-29/64	1-3/32	2-3/4	1.906	0.720	HC206-17		1.34
206-18	1-1/8																HC206-18		1.31
206-19	1-3/16																HC206-19		1.29
206-20	1-1/4																HC206-20		1.26
HCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	HC207	T207	1.70
207-20	1-1/4	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	20.12	0.740	HC207-20		1.77
207-21	1-5/16																HC207-21		1.73
207-22	1-3/8																HC207-22		1.70
207-23	1-7/16																HC207-23		1.68
HCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	89	56.3	21.4	HC208	T208	2.45
208-24	1-1/2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-15/16	3-1/2	2.217	0.843	HC208-24		2.50
208-25	1-9/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-15/16	3-1/2	2.217	0.843	HC208-25		2.46
HCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	56.3	21.4	HC209	T209	2.47
209-26	1-5/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2.217	0.843	HC209-26		2.58
209-27	1-11/16																HC209-27		2.53
209-28	1-3/4																HC209-28		2.49
HCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	62.7	24.6	HC210	T210	2.66
210-29	1-13/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-25/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-15/32	3-35/64	2.469	0.969	HC210-29		2.81
210-30	1-7/8																HC210-30		2.75
210-31	1-15/16																HC210-31		2.69
210-32	2																HC210-32		2.63
HCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	71.4	27.8	HC211	T211	4.01
211-32	2	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	2.811	1.094	HC211-32		4.31
211-33	2-1/16																HC211-33		4.13
211-34	2-1/8																HC211-34		4.06
211-35	2-3/16																HC211-35		3.98
HCT212	60	32	19	102	64	35	102	22	130	146	194	64	42	119	77.8	31	HC212	T212	4.90
212-36	2-1/4	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3.063	1.220	HC212-36		4.92
212-37	2-5/16																HC212-37		4.97
212-38	2-3/8																HC212-38		4.90
212-39	2-7/16																HC212-39		4.89
HCT213	65	32	21	111	70	41	121	26	151	167	224	70	44	137	85.7	34.1	HC213	T213	7.14
213-40	2-1/2	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-47/64	5-25/64	3.374	1.343	HC213-40		7.24
213-41	2-9/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-47/64	5-25/64	3.374	1.343	HC213-41		7.13
HCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	85.7	34.1	HC214	T214	7.15
214-42	2-5/8	1-17/64	53/64	4-3/8	2-314	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-13/16	5-25/64	3.374	1.343	HC214-42		7.09
214-43	2-11/16																HC214-43		7.28
21444	2002-3-4																HC21444		7.16
HCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	92.1	37.3	HC215	T215	7.67
215-45	2-13/16	1-17/64	53/64	4-3/8	2-314	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3.626	1.469	HC215-45		7.97
215-46	2-7/8																HC215-46		7.84
215-47	2-15/16																HC215-47		7.71
215-48	3																HC215-48		7.57
HCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	95.2	37.3	HC216	T216	8.76
216-49	3-1/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	3.748	1.469	HC216-49		8.96
216-50	3-1/8																HC216-50		8.82
216-51	3-3/16																HC216-51		8.67
HCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	73.8	23.4	HC217	T217	10.91
217-52	3-1/4	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-318	2.906	0.921	HC217-52		11.10
217-53	3-5/16																HC217-53		10.98
217-55	3-7/16																HC217-55		10.73
HCT218	90	40	30	130	80	48	140	30	190	215	275	80	55	170	72.6	24.5	HC218	T218	12.01
218-56	3-1/2	1-3764	1-3/16	5-1/8	3-5/32	1-57/64	5-35/64	1-3/16	7-31/64	8-15/32	10-53/64	3-5/32	2-11/64	6-11/16	2.858	0.965	HC218-56	T218	12.10
