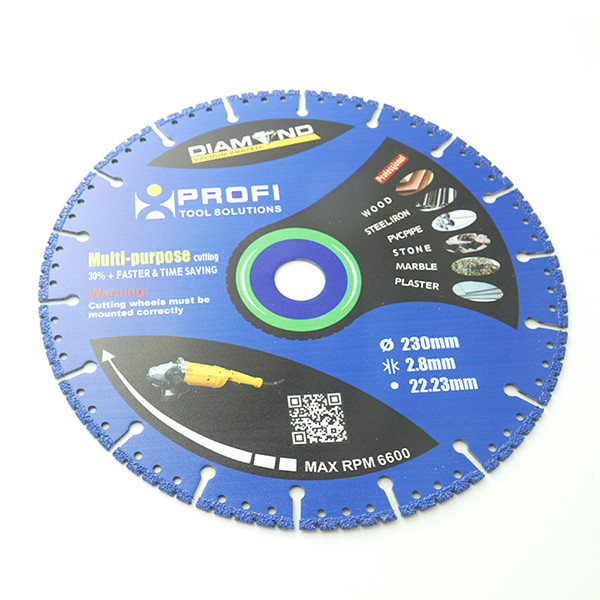

Moretop vacuum brazed diamond blade 230mm multipurpose cutting
group nameDIAMOND BLADE
-
Min Order1000 piece
brand nameMoretop
model10124005
payment methodL/C
-
update timeMon, 13 May 2024 06:41:21 GMT
Paramtents
Brand profi
Diameter 230mm
Diamond Grit 35#
Bore 22.23mm
Segment Thickness 2.8mm
Plate Thickness 1.8mm
Max.RPM 6600
For machine DeWalt,Makita,Bosch,etc.
Packging & Delivery
Min Order1000 piece
Briefing
vacuum brazed diamond blade, Vacuum brazing technology could attach large pieces of diamond grit to the cutting edge.
Detailed
It is the most popular saw blade we offer
MORETOP Vacuum Brazed Diamond Blade is suitable for cutting on wood,metal,stone, marble and other materials.
It's produced by high-temperature vacuum brazing technology for firmly attached diamond particles, fast cutting and long service life.
It's not easy to deform at high temperature with good stability painted by UV processing technology and packed in customized package.
for cutting Everything
FEATURES:
PROFI Universal Diamond Blade uses a process of vacuum brazing to attach large pieces of diamond grit to be held constantly in contact with different materials being cut in efficient way.
APPLICATIONS:
Concrete, Reinforced Concrete, Paving, Indian Sandstone, Quarry Stabs, Granite, Plastic, Ducting, Glass, Rubber and Fibreglass.
BENEFITS OVER CONVENTIONAL ABRASIVE WHEELS
Cost Efficiency: long tool life and less down time
Environmental and Operator Friendly: reduced sparks and no odour
Safety: wheel breakage eliminated
Wheel Wear: reduction in tool size or sharpe
Saving Time: one blade for cutting everything.
Description | Item No. | Dia.(mm) | Diamond Grit | Bore(mm) | Plate Thickness | Segment Thickness | RPM |
Cuting for everything | 10124001 | 105 | 35# | 22.23 | 1.2 | 2.2 | 14500 |
10124002 | 115 | 35# | 22.23 | 1.2 | 2.2 | 13300 | |
10124003 | 125 | 35# | 22.23 | 1.2 | 2.2 | 12200 | |
10124004 | 180 | 35# | 22.23 | 1.8 | 2.8 | 8600 | |
10124005 | 230 | 35# |
22.23
|
1.8
|
2.8
|
6600
|
|
10124006 | 300 | 35# |
25.4
|
2.2
|
3.2
|
6300
|
