group nameWelded Steel Chain
Min Order100 meter
brand nameZMIE Chain Manufacturer
payment methodL/C, Western Union, T/T, Paypal
update timeSun, 05 May 2024 08:04:15 GMT
Material: 40Cr/5140/41Cr4
Heat Treatment: Through hardening
Color: Natural
Shipping: Support Sea freight.Express.Land freight.
Application Cement/Sugar/Water/Wood
Chain No.: WH78/82/106/111/124/132/157/159
Chain Pitch: 66.27/78.10/152.40/120.90/101.60/153.67mm
Min Order100 meter
ZMIE
Chain NO. |
Pitch | Bush Diameter | Sprockets Face | Pin Diameter | Pin Length | Plate Depth | Plate Thickness | Ultimate Tensile Strength | Weight Per Meter |
P | d1 max | b1 min | d2 max | L max | h2 max | T max |
Q min | q |
|
mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
WH78 | 66.27 | 22.90 | 28.40 | 12.78 | 79.30 | 28.40 | 6.40 | 106.80 | 6.20 |
WH82 | 78.10 | 31.50 | 31.80 | 14.35 | 86.00 | 31.80 | 6.40 | 131.20 | 7.98 |
WH106 | 152.40 | 37.10 | 41.20 | 19.13 | 111.00 | 38.10 | 9.70 | 224.00 | 10.56 |
WH111 | 120.90 | 37.10 | 57.20 | 19.13 | 124.50 | 38.10 | 9.70 | 224.60 | 12.72 |
WH124 | 101.60 | 37.10 | 41.20 | 19.13 | 110.00 | 38.10 | 9.70 | 224.60 | 12.38 |
WH132 | 153.67 | 44.70 | 76.20 | 25.48 | 162.20 | 50.80 | 12.70 | 378.10 | 20.00 |
WH157 | 153.67 | 44.45 | 76.20 | 28.75 | 176.00 | 63.50 | 15.90 | 520.00 | 29.00 |
WH159 | 155.57 | 50.80 | 73.00 | 31.75 | 173.00 | 76.20 | -15.88 | 908.00 | 38.40 |
H1 Attachment
|
|||||
ZMIE Chain No.
|
h3 | A | B |
C
|
T
|
mm | mm | mm |
mm
|
mm
|
|
WH78
|
12.70 | 22.40 | 50.80 |
93.50
|
6.40
|
WH82
|
16.00 | 28.40 | 57.20 |
93.50
|
6.40
|
H2 Attachment
|
||||
ZMIE
Chain No. |
h3 | A |
C
|
T
|
mm | mm |
mm
|
mm
|
|
WH78
|
7.90 | 20.80 |
93.50
|
6.40
|
WH82
|
7.90 | 26.40 |
96.80
|
6.40
|
S1 Attachment
|
|||
ZMIE
Chain No. |
X |
C
|
T
|
mm |
mm
|
mm
|
|
WH124
|
101.60 |
82.50
|
12.70
|
WH132
|
152.40 |
127.00
|
12.70
|

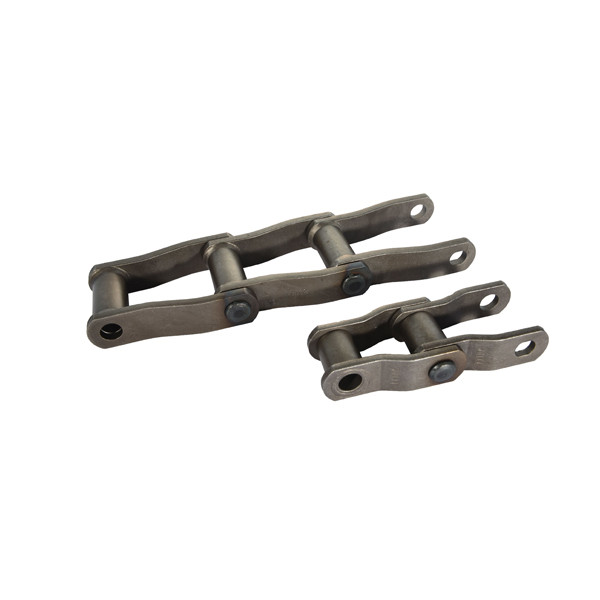

ZMIE Chain has rich experience in the welding chain project . Welded chain provide an economical and superior method for conveying most materials. They are most common in the lumber, pulp and paper, plywood, OSB and other board mills, bucket elevator and bulk material handling. Welded link Chain operates in some of the most demanding applications. The inherent design provides high tensile and fatigue strength. This brute of a chain must withstand high shock loading, provide resistance to abrasive material and operate in extreme temperatures and climates. Building upon the basic design.
Welded steel chain specifications:
WR = chains have only through hardened rivets
WH = chains have all parts through hardened
WHX = chains have through hardened parts and induction hardened rivets as standard
All welded steel chain sizes are available, contact us now!
