TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine

  • group nameAuto insert shell crimp

  • Min Order1 piece

  • brand nameTuring

  • modelTR-HT03

  • payment methodWestern Union, MoneyGram, T/T

  • update timeThu, 27 Aug 2026 18:44:24 GMT

Paramtents

  • Power AC220V/50HZ,

  • Application Double end Terminal Machine

  • Feature Stable Performance

  • Warranty 1year

  • Control Servo and Step motor

  • Contact Lily 0086-13715588365

Packging & Delivery

  • Weight1200kg / piece

  • Min Order1 piece

Briefing

Fully automatic high-speed double-head insert plastic shell tin dipping machine
Lily +8613715588365

Detailed

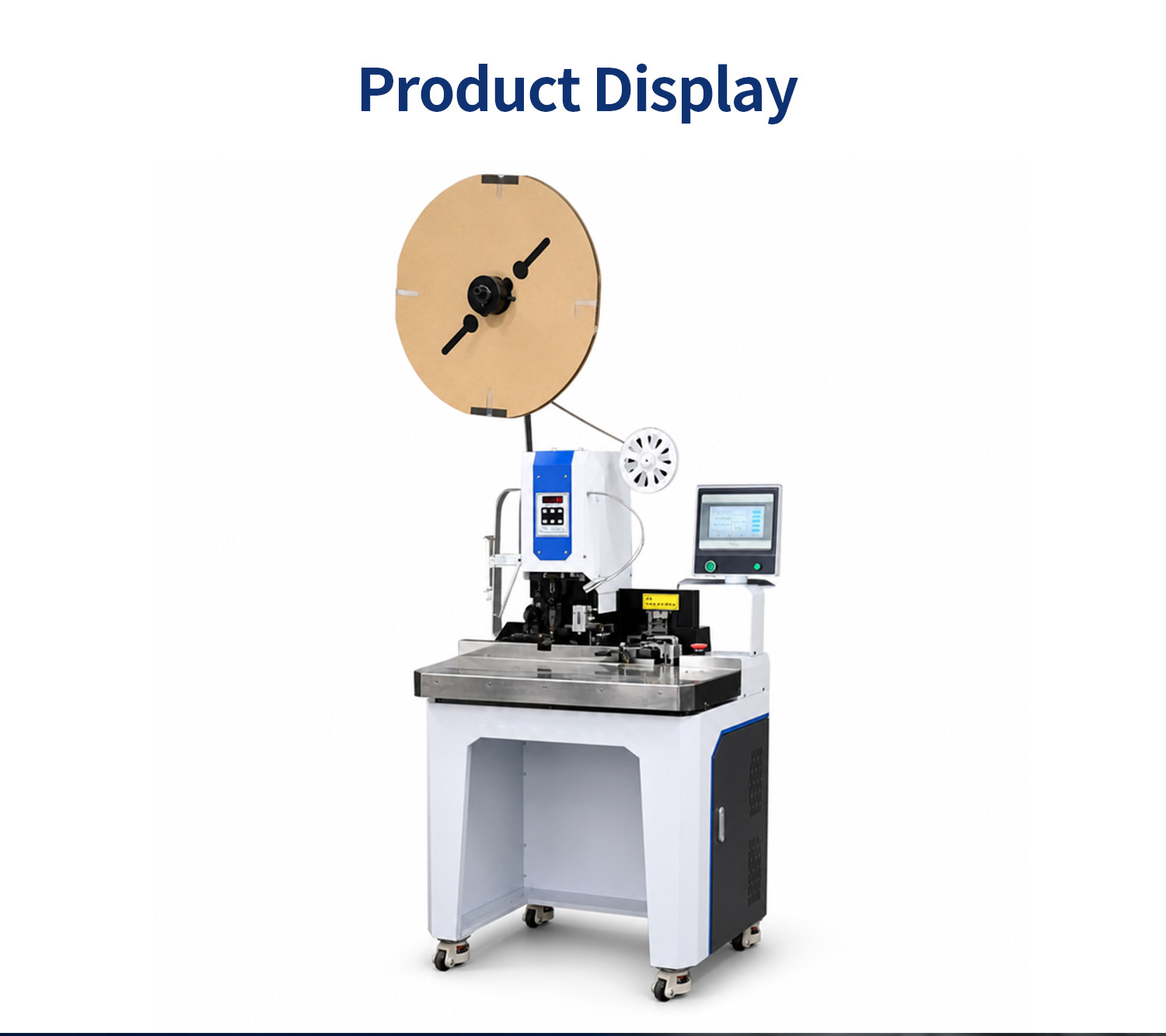

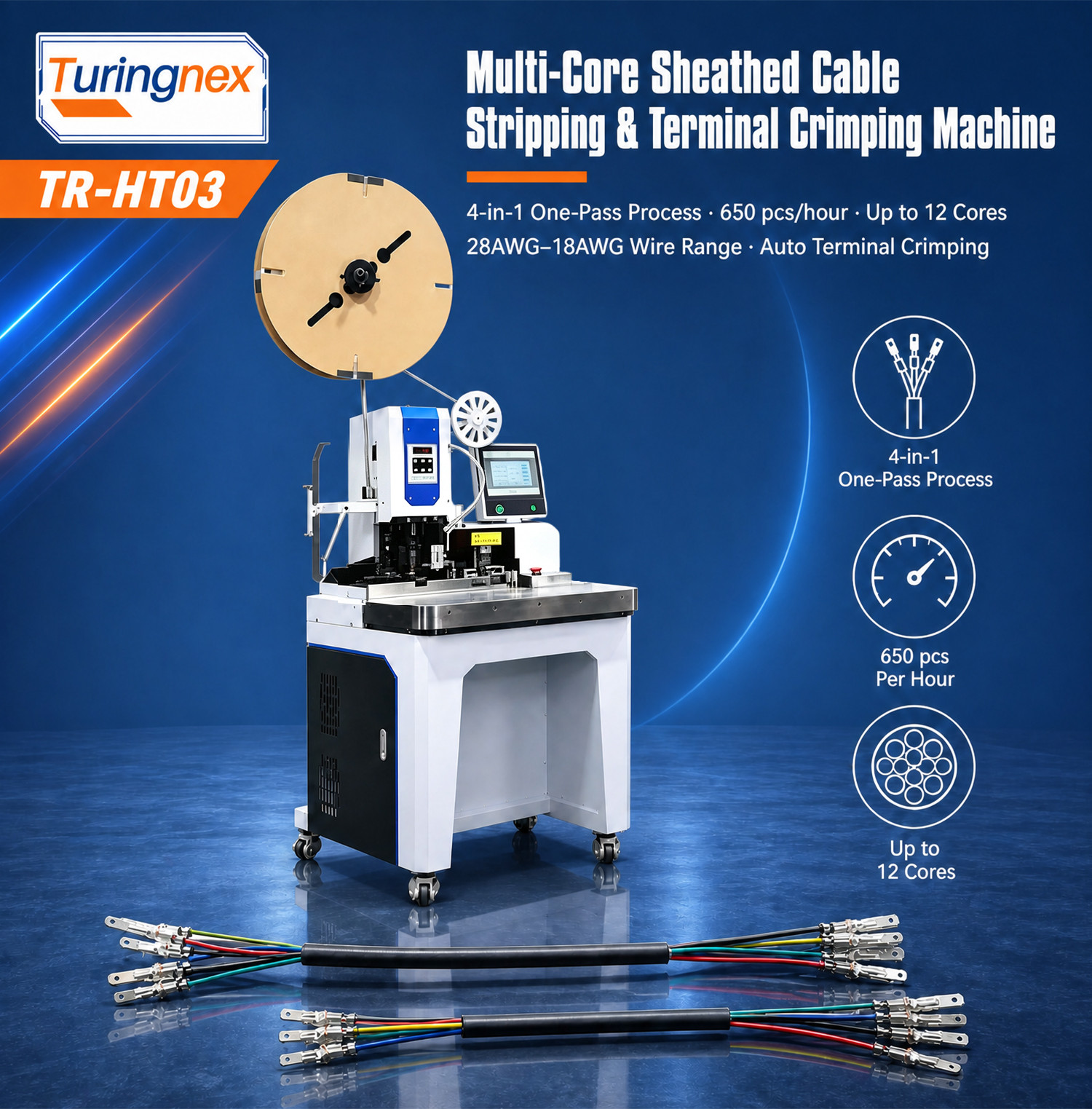

TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine

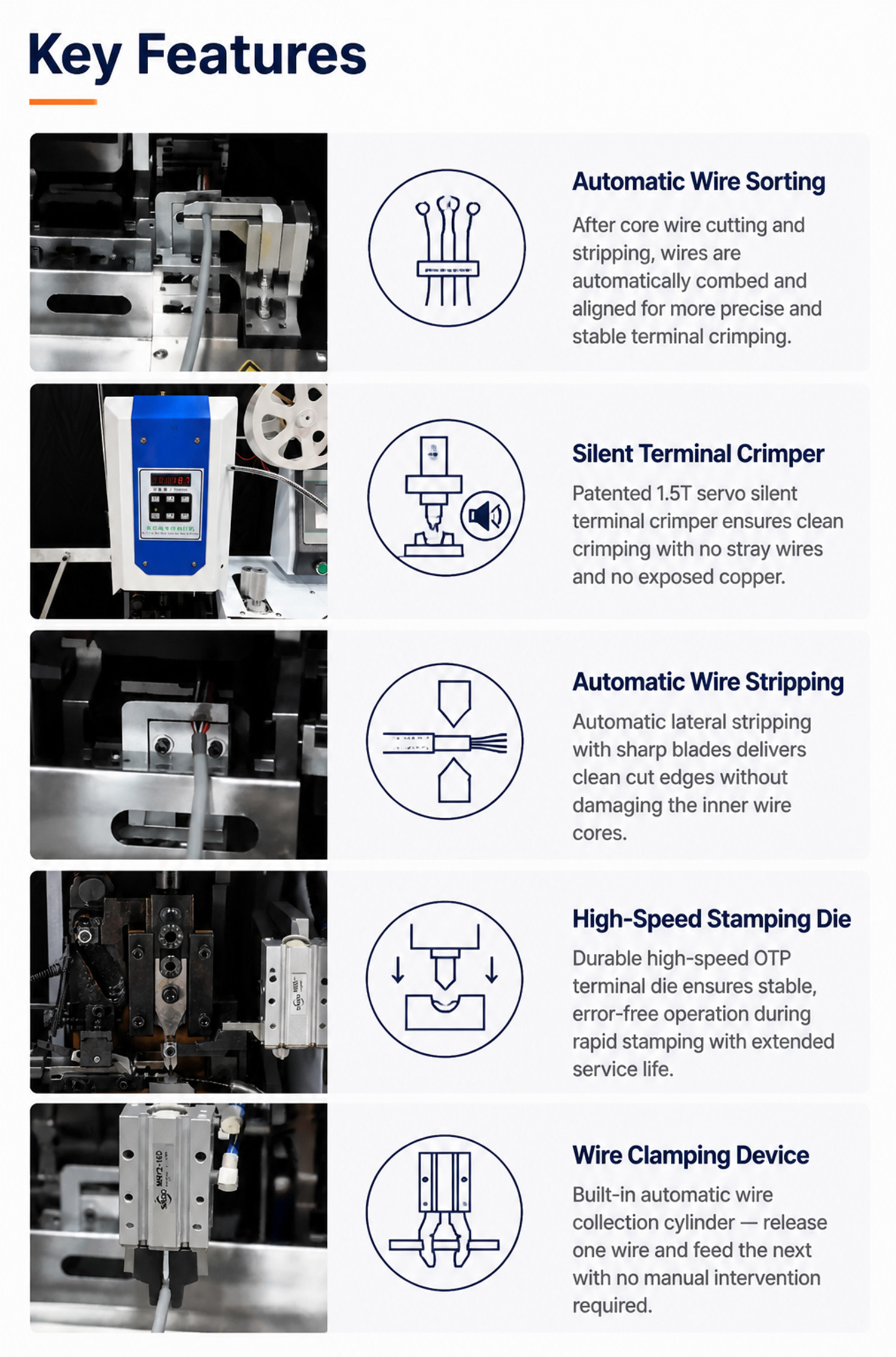

Product Highlights
1.Integrated multi‑function design

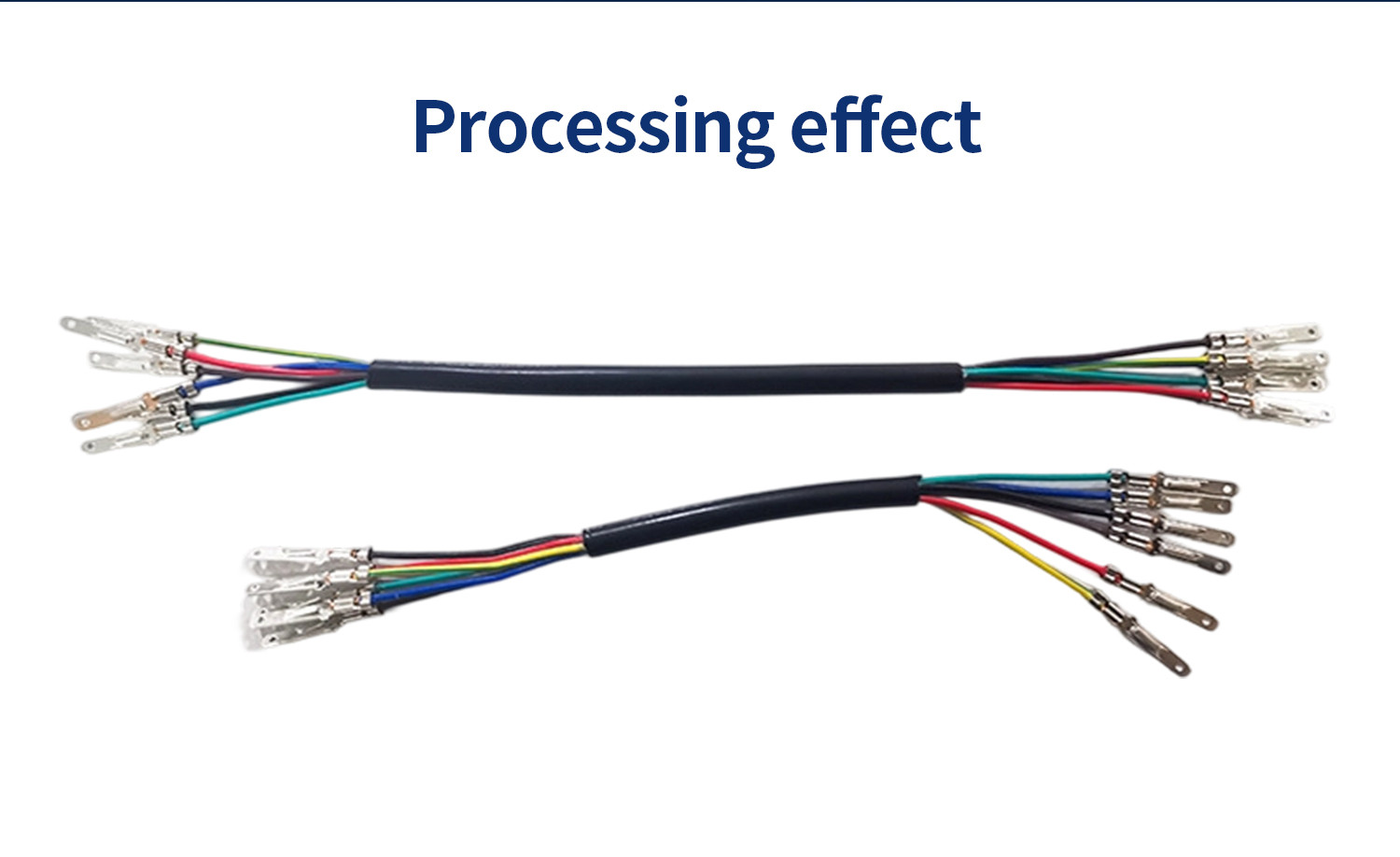

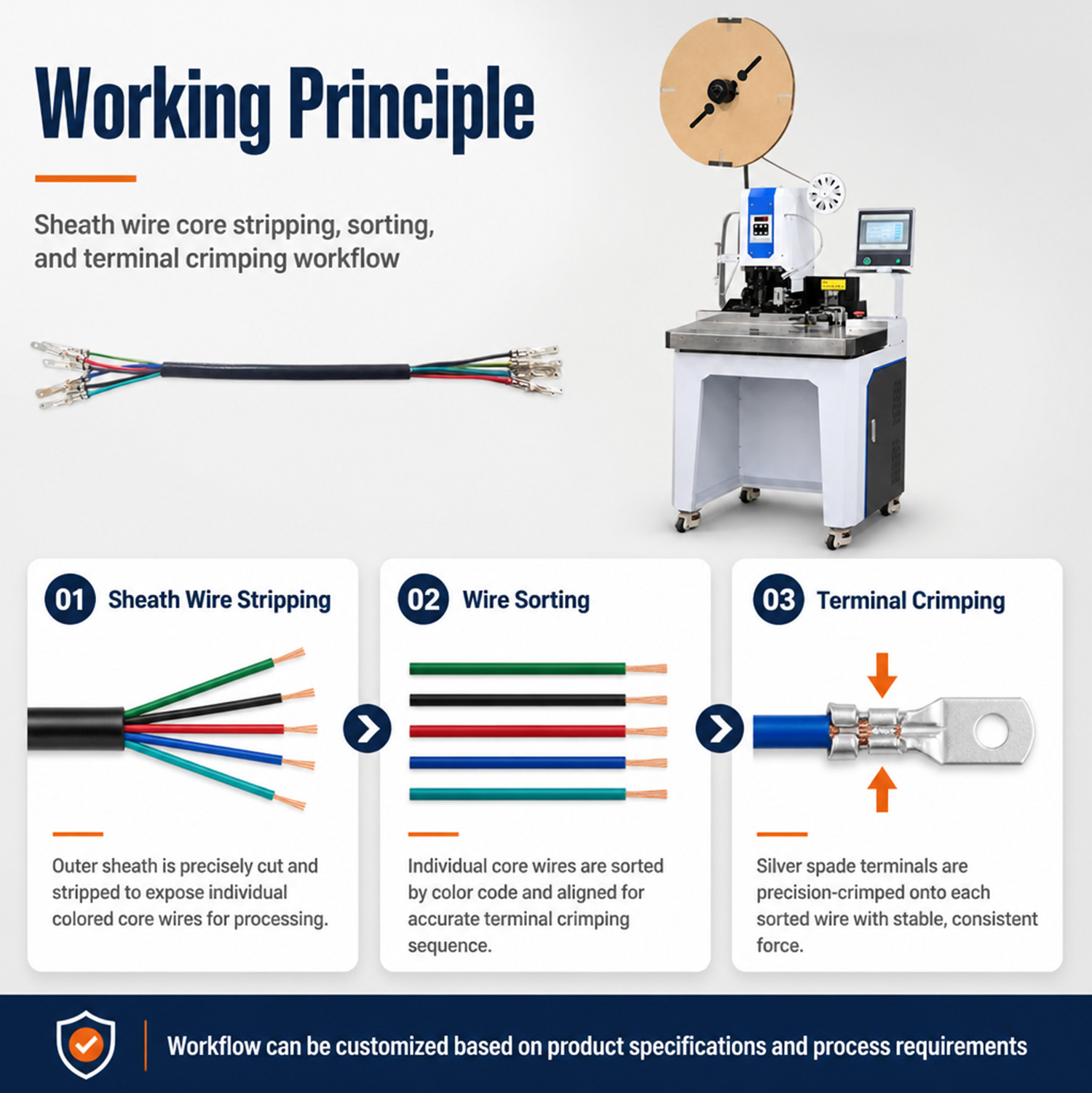

Specially designed for multi‑core sheathed wires, it integrates wire trimming, stripping and terminal crimping. Wire stripping and terminal crimping can be finished in one single operation.

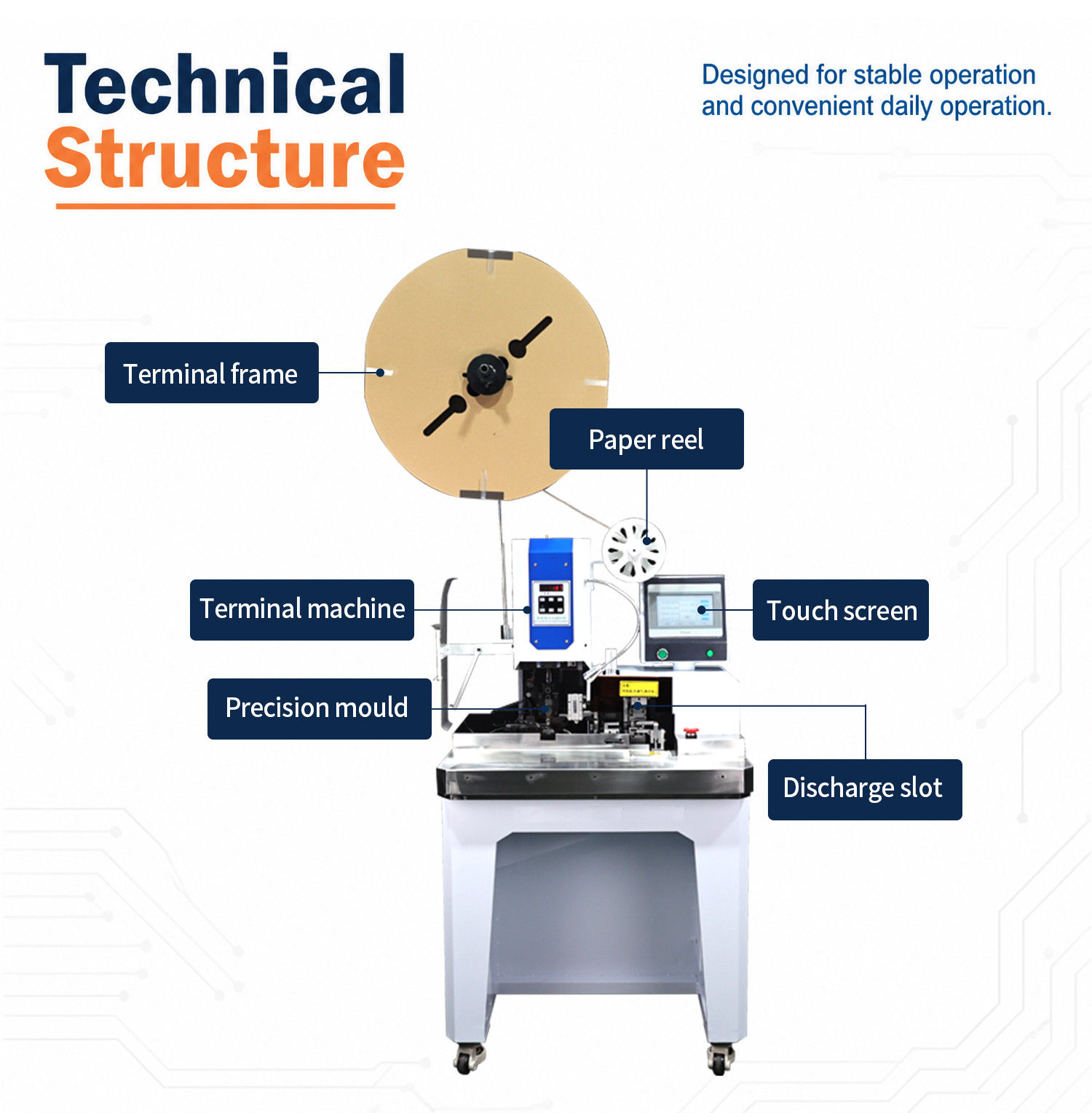

2.Easy‑to‑replace mold
The cassette mold and stripping unit are independent of each other, making cassette mold replacement quick and convenient.

3.Strong production adaptability
Adjustable stripping depth to satisfy diverse processing requirements; capable of processing wires with up to 12 cores.

4.Silent terminal crimping unit
Equipped with self‑developed 1.5T steel‑plate silent terminal machine for low‑noise operation, with 1.5T crimping capacity.

5.User‑friendly operation
Wecon bilingual Chinese‑English touch‑screen for fool‑proof operation, low learning threshold for operators.

6.High‑quality core components
Adopts well‑known brand accessories including HIWIN linear guides & lead screws, Airtac solenoid valves and Xingchen cylinders for high equipment stability.
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
 Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine

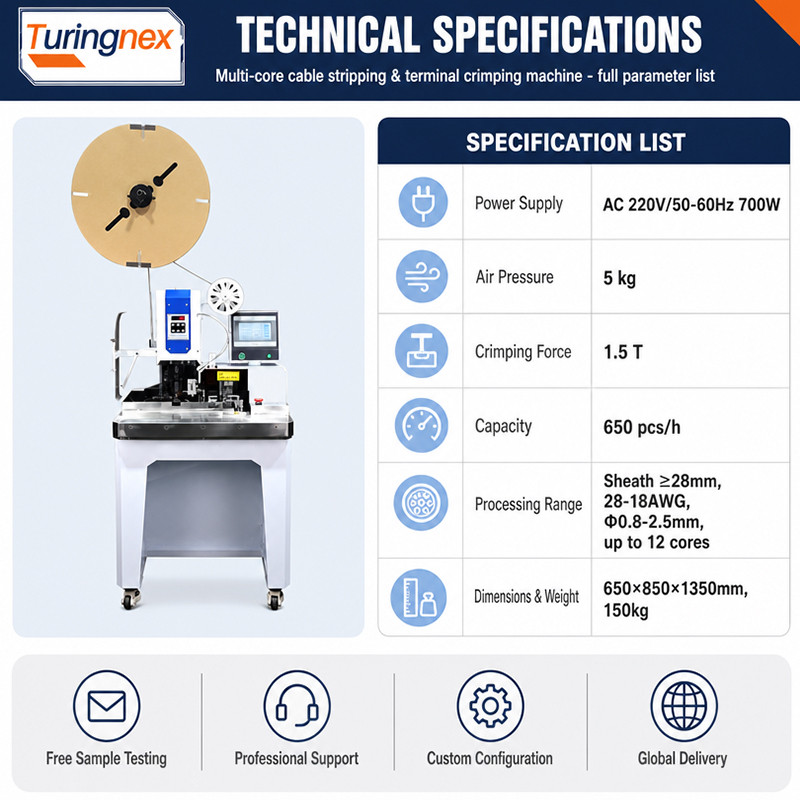

Equipment Name
TR-HT03 Multi-core Wire Automatic Wire Stripping Terminal Crimping Machine
Power Supply
AC220V 50/60Hz single phase,700W
Operation mode
Manual, single cycle, fully automatic
Size & Weight
650x850x1350mm,150kg
Working efficiency
650 pcs/H
Wire specification
Min. outer sheath stripping length: 28mm,
Wire gauge: 28AWG‑18AWG,
Wire diameter: Φ0.8‑2.5mm, Max. 12 cores.
Air pressure
5kg
Pressure
Conventional 1.5T stamping machine
Detection device
With or without wire, wire knots, abnormal stripping. Poor stamping die, terminal with or without, terminal overload, abnormal air pressure
Tool material
Tungsten steel / high speed steel
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
TR-HT03 Multi-core Wire Automatic Stripping And Terminal Crimping Machine
Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical. We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
