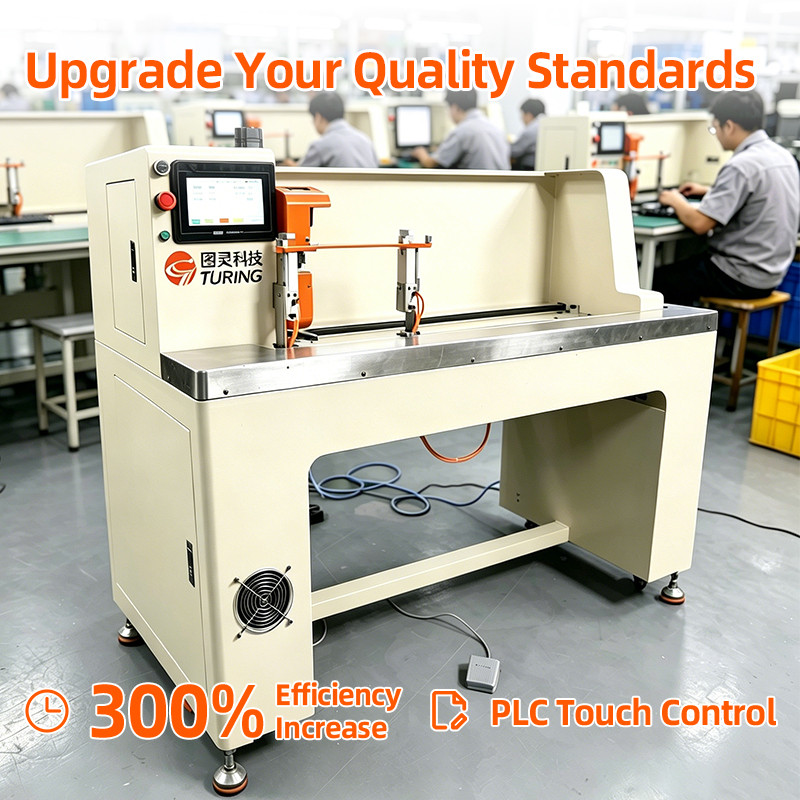

TR-308 new energy continuous tape wrapping machine
group nameCopper Strip Tape Wrapping Machine
-
Min Order1 piece
brand nameTuring
modelTR-308
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 19 Aug 2026 17:27:28 GMT
Paramtents
Power AC220V/50HZ, 300W
Application Tape Wrapping Machine
Feature Stable Performance
Function Automatic Tape Winding Machine
Warranty 1year
Packging & Delivery
Min Order1 piece
Briefing
TR-308 new energy continuous tape wrapping machine
Detailed
TR-308 new energy continuous tape wrapping machine
Product Highlights
1.Multi‑mode Winding Process
Supports full‑wrap, point‑wrap and segment‑wrap to meet diverse processing requirements.
2.High‑efficiency Production
Output up to 360 pcs per hour, greatly replacing manual work and boosting productivity.
3.±0.1mm High‑precision Positioning
Servo synchronous moving system ensures wrinkle‑free taping with overlapping tolerance ≤0.5mm.
4.Dual‑clamping Fixture
Firmly locks workpieces on both ends to prevent shifting and avoid scratches on busbar surface.
5.User‑friendly PLC Touch Control
Built‑in self‑diagnosis function for faults; operators can get proficient within 15‑minute training.
6.Wide Compatibility
Processes square & round workpieces, fits 5‑30mm tape width; unlimited max processing length.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

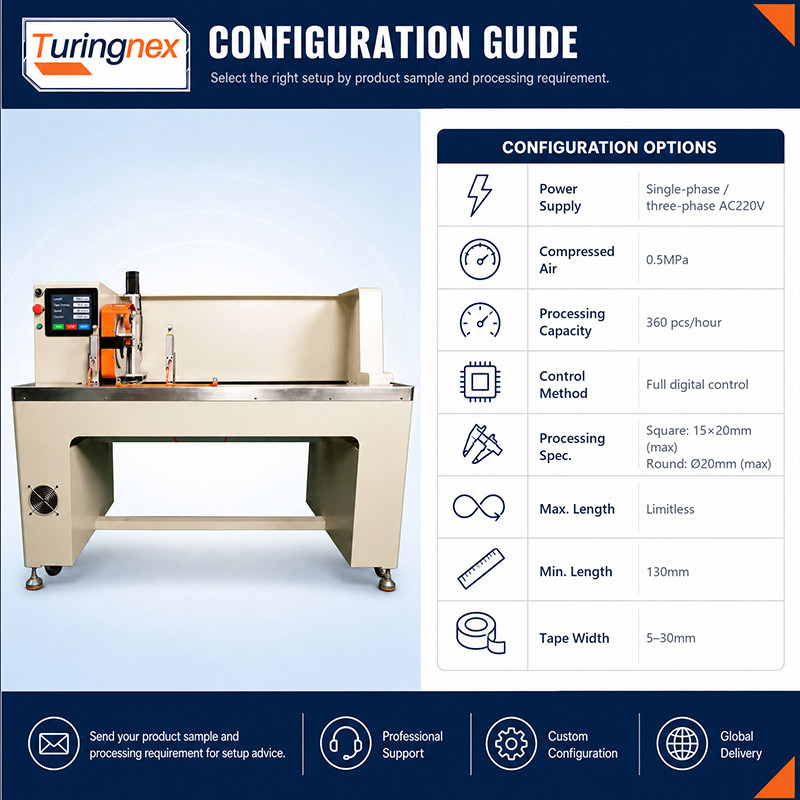

Equipment Name | TR-308 New Energy Tape Wrapping Machine | |
Power | Single-phase/three-phase AC220V | |
compressed air | 0.5MPa | |
Production Capacity | 360 pcs/hour | |
control method | Full digital control | |
Processing specifications | Square: 15*20mm (max) Round: 20mm diameter (max) | |
Max. processing length | limitless | |
Min. processing length | 130mm | |
Main Configuration | 5-30mm | |
Adhesive tape overlap accuracy | Deviation ±0.5mm | |
Operating Temperature Range | 5-40°C ambient temperature | |
Operating humidity range | 30%-80%RH No condensation | |
Function | Automatic shifting tape wrapping:
1. The number of points/distance is manually adjustable;
2. The number of wrapping turns is adjustable. | |
Dongguan Turing Automation Technology Co., Ltd. was founded in 2008 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
