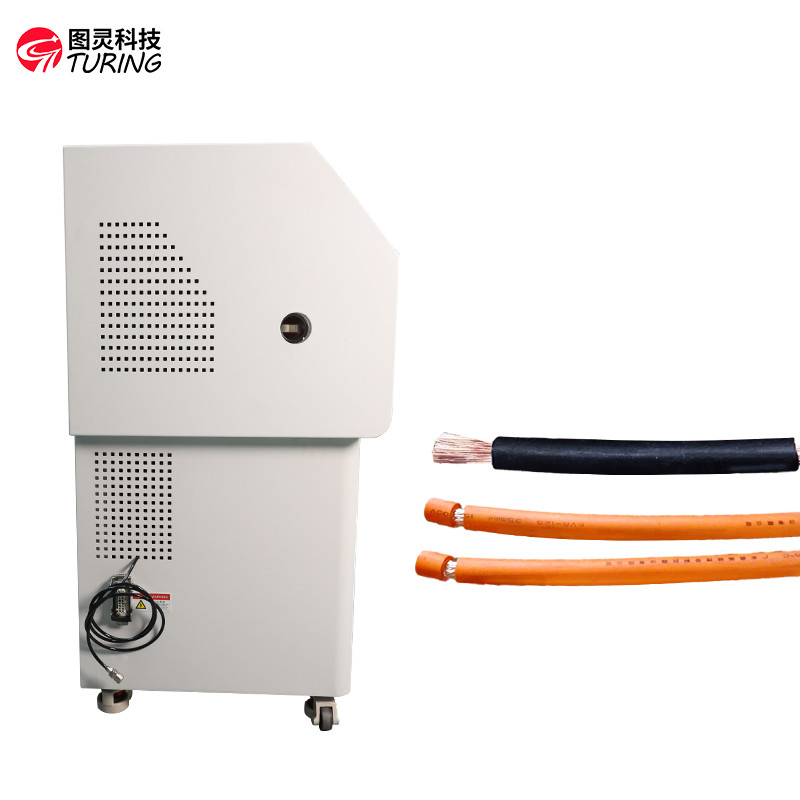

TR-8400X fully automatic 400 square mm rotary knife wire stripping machine
group nameFully Automatic Coaxial Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-8400X
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 07:23:16 GMT
Paramtents
Power AC220V/50HZ,
Name Semi-automatic Coaxial Wire Stripping Machine
Contact Lily 008613715588365
Packging & Delivery
Min Order1 piece
Briefing
TR-8400X fully automatic 400 square mm rotary knife wire stripping machine
Detailed
TR-8400X fully automatic 400 square mm rotary knife wire stripping machine
Power supply：AC220V 50HZ，12kW
Catheter Diameter：Φ15-50mm
Stripping range：30-400mm²
Function：Automatic cutting and stripping of wires and cables
Wire Type：Cable wire, sheathed wire, new energy wire, etc.
Cutting length：10-99999.99mm
Cutting tool materials：High quality imported high speed steel
Cutting tolerances：Within 0.002L (L=cutting length)
Strip length：Front stripping: 10-1000mm (wire head)
Back stripping: 10-300mm (wire tail)
Display mode：10 inch true colour touch screen
production efficiency：500-1000pcs/h (according to the length and size of the wire)
Drive method：Wire feed: each group independent servo drive
Tool holder: double servo plus double silk rod
Production efficiency: 500-1000pcs/h (depending on the wire)
Single- or multi-layer processing of wires such as cable wiressheathing wires, new energy wires, etc.
Strip length:Front stripping:10-1000mm(wire head)Back stripping:10-300mm(wire tail)
Display mode:10 inch true colour touch screen
production efficiency:500-1000pcs/h(according to the length and size of the wire)
drive method:Wire feed: each group independent servo drive Tool holder: double servo plus double silk rod
Mobile tool holder
Made of alloy material, theblade is sharp and the cut is smooth and beautiful; two sets of blades are responsi-ble for cutting and peeling respectively,which guaran-tees the service life of the blades.
Belt feed
Adopt belt type feeding systemprevent wire from slipping, noindentation, stable feeding andaccurate length.
rotary knife
Utilising centrifugal force princi-ple, screw control, no harm to thewire core,ensure processing ac-curacy.
