TR-612H Large square computerized wire stripping machine
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-612H
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 03:41:22 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 2.5-120mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-612H Large square computerized wire stripping machine
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR-612H Large square computerized wire stripping machine
Dimensions & Weight: 1020x590x1140mm, 260kg
Display: 7-inch HMI
Functions:
① Fully automatic length-cutting and stripping for single-core wires, multi-core cables, and shielded cables;
② Simultaneous outer sheath stripping, inner core stripping, and cutting for multi-core sheathed cables.
Wire Types: Single-core wires, multi-core cables, shielded cables, electrical wires, PVC, etc.
Processing Range: 2.5–120 mm²
Cutting Length: 1 mm–999,999.99 mm
Cutting Tolerance: Within 0.002*L (L=cutting length)
Stripping Length:
Front Stripping: Full outer sheath removal 20-250mm, inner core 1-50mm
Rear Stripping: Full outer sheath removal 20-200mm, inner core 1-50mm
Stripping Speed: 2000 PCS/hour (1000 pcs/H for jacketed cables), subject to wire length and size

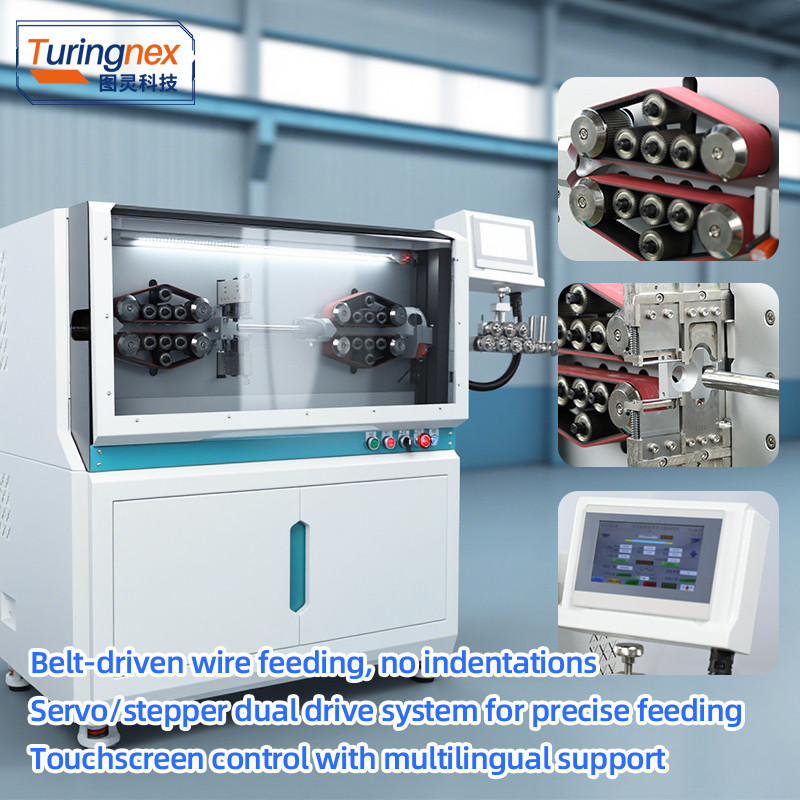

Wire Feeding Method: Belt feeding, ensuring no imprints or scratches on cables. (With stripping and pressing function)
Drive method: 24-wheel drive (stepper motor for feeding, servo motor for blade holder/rotary blade); full servo optional
Lifting operation: Digital adjustment of pressure roller height
Maximum allowable diameter: ￠27
Air source: 0.5 MPa clean air supply
Lifting method: Stepper motor lifting
Guide tube swing: Pneumatic cylinder swing
Translated with DeepL.com (free version)
