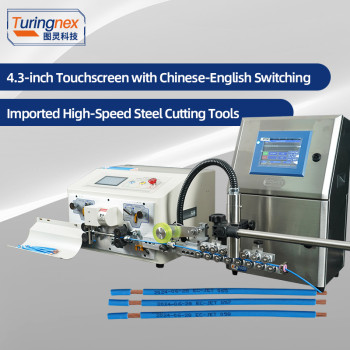

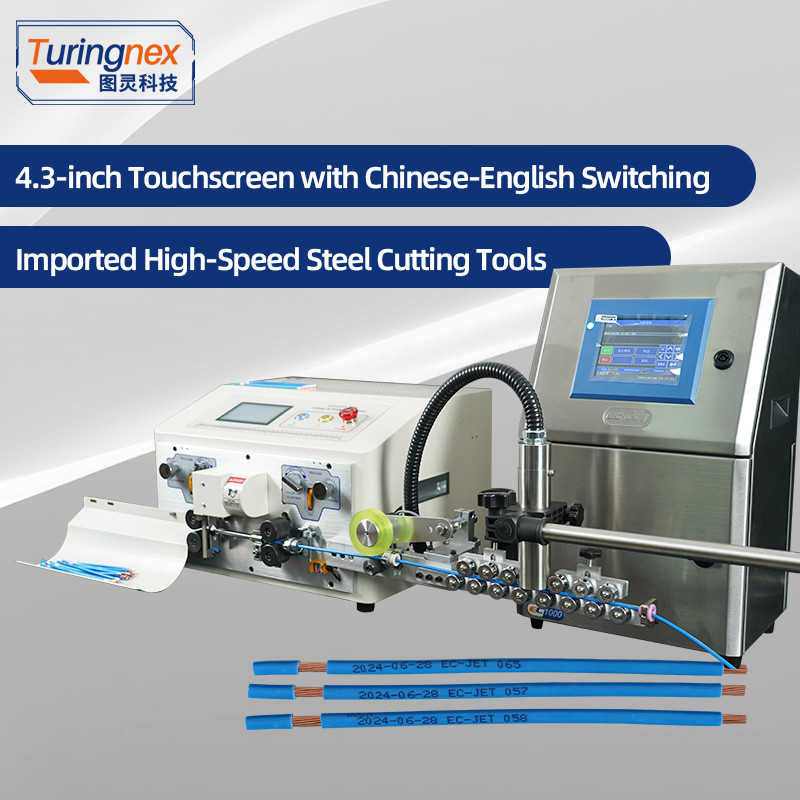

TR608-MAX1-4S Touch Screen 4-Wheel 25mm² Wire Stripping Machine
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR608-MAX1-4S
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 25 Mar 2026 00:24:56 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-10000mm
Scope of processing 0.2-25mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR608-MAX1-4S Touch Screen 4-Wheel 25mm² Wire Stripping Machine
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR608-MAX1-4S Touch Screen 4-Wheel 25mm² Wire Stripping Machine
Dimensions: 460×470×325mm
Display Method: 4.3-inch Touchscreen with Chinese/English Switching
Cutting Length: 1~10000mm
Cutting Tolerance: ±(0.002×L) mm (Note: The original character "土" is a typo, and the correct symbol is "±", representing plus-minus tolerance)
Applicable Wire Types for Stripping: PVC wires, Teflon (PTFE) wires, fiberglass wires
Wire Stripping Speed: 3000-4000 pieces/hour (when wire length L=100mm)
Power Supply: AC 220/110V 50/60Hz, Rated Power 450W
Stripping Length: 0-30mm (wire head), 0-20mm (wire tail)
Maximum Conduit Diameter: ￠11mm (Note: The original specification lacks a unit; "mm" is the common unit for such equipment)
Cutting Wire Core Cross-Section: 0.2~25mm²; single-strand BV wire (PVC-insulated copper wire) can be cut up to 6mm²
Middle Stripping: Supports 16 stripping positions
Drive Method: Four-wheel Drive (equipped with a silent hybrid stepper motor, advancing 0.1mm per step)
