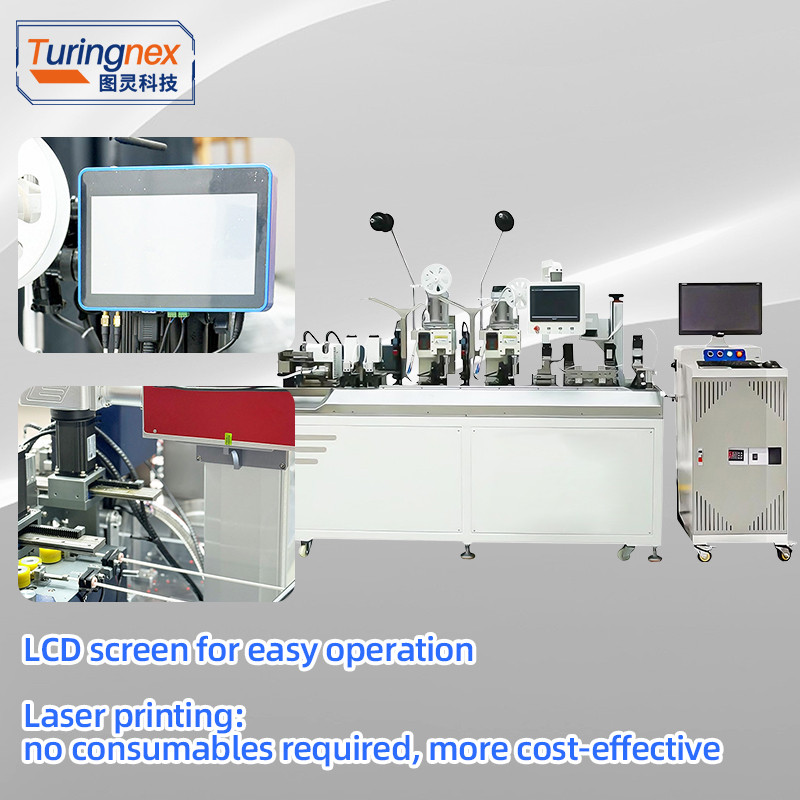

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

  • group nameInserting Tube Terminal Crimping Machine

  • Min Order1 piece

  • brand nameTuring

  • modelTR-CG03

  • payment methodWestern Union, MoneyGram, T/T

  • update timeSat, 06 Dec 2025 15:17:49 GMT

Paramtents

  • Power AC220V 50/60Hz 20A

  • Application wire cutting, stripping, terminal crimping

  • Stripping Length 1mm~15mm

  • Working Air Pressure: ≥0.5MPa

  • Contact Coco : +86 18666170785

Packging & Delivery

  • Min Order1 piece

Briefing

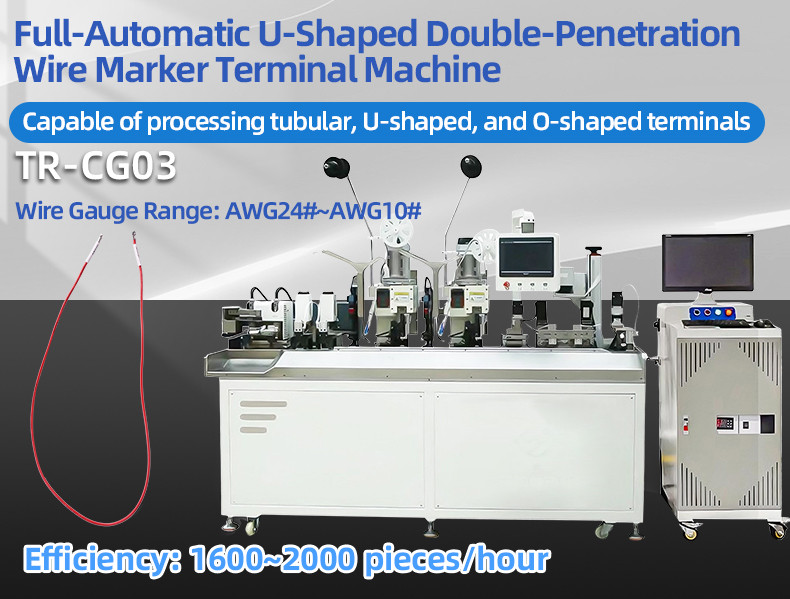

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

Detailed

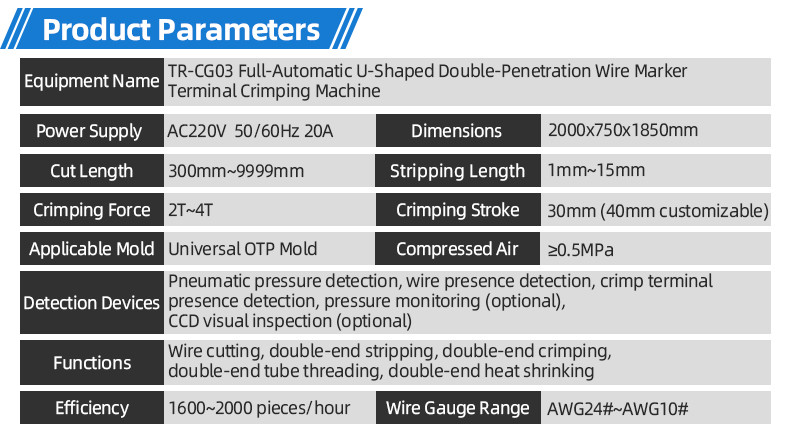

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine
Power Supply Voltage: AC220V 50/60Hz 20A
Dimensions: 2000x750x1850mm
Cut Length: 300mm~9999mm
Stripping Length: 1mm~15mm
Crimping Force: 2T~4T
Crimping Stroke: 30mm (40mm customizable)
Applicable Mold: Universal OTP Mold
Compressed Air: ≥0.5MPa
Detection Devices: Pneumatic pressure detection, wire presence detection, crimp terminal presence detection, pressure monitoring (optional), CCD visual inspection (optional)

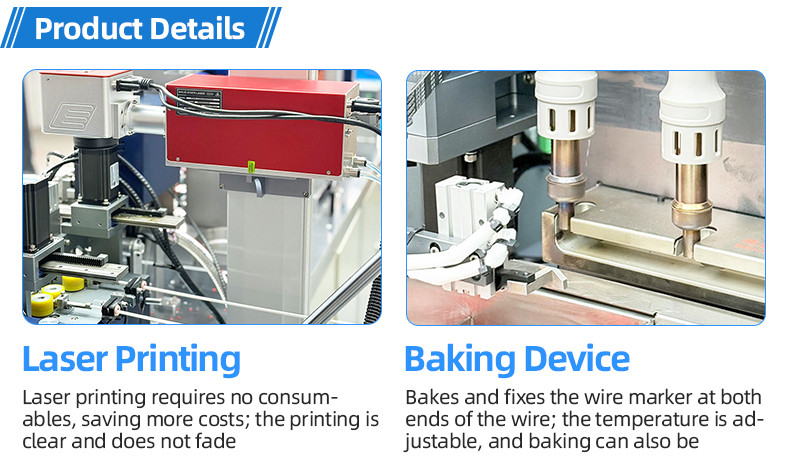

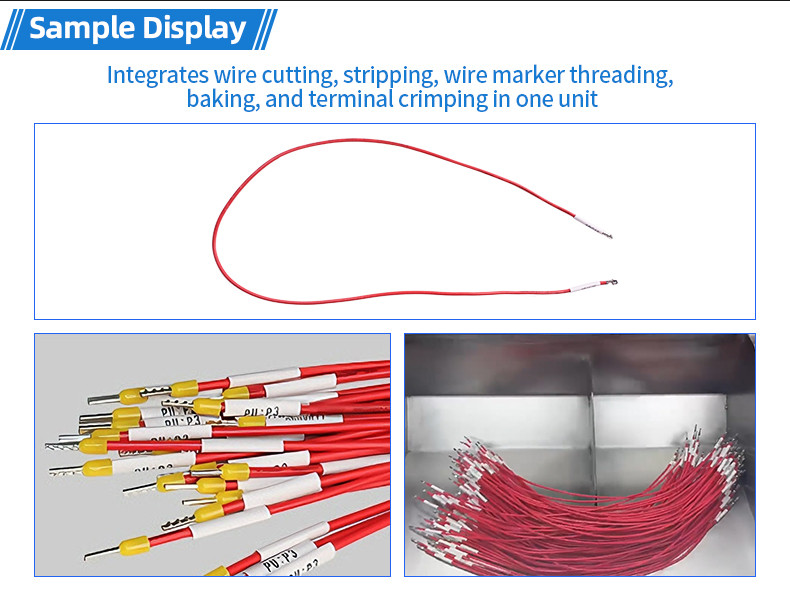

Functions: Wire cutting, double-end stripping, double-end crimping, double-end tube threading, double-end heat shrinking
Efficiency: 1600~2000 pieces/hour
Wire Gauge Range: AWG24#~AWG10#
