TR-CS02 Ultrasonic Wire Harness Welding Machine
group nameWelding Machine
-
Min Order1 piece
brand nameTuring
modelTR-CS02
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 17 Apr 2026 14:39:51 GMT
Paramtents
Power AC220V 50/60Hz
Application Wire Harness Welding Machine
Ultrasonic Power 2kW~6kW
Ultrasonic Frequency 20kHz
Packging & Delivery
Min Order1 piece
Briefing

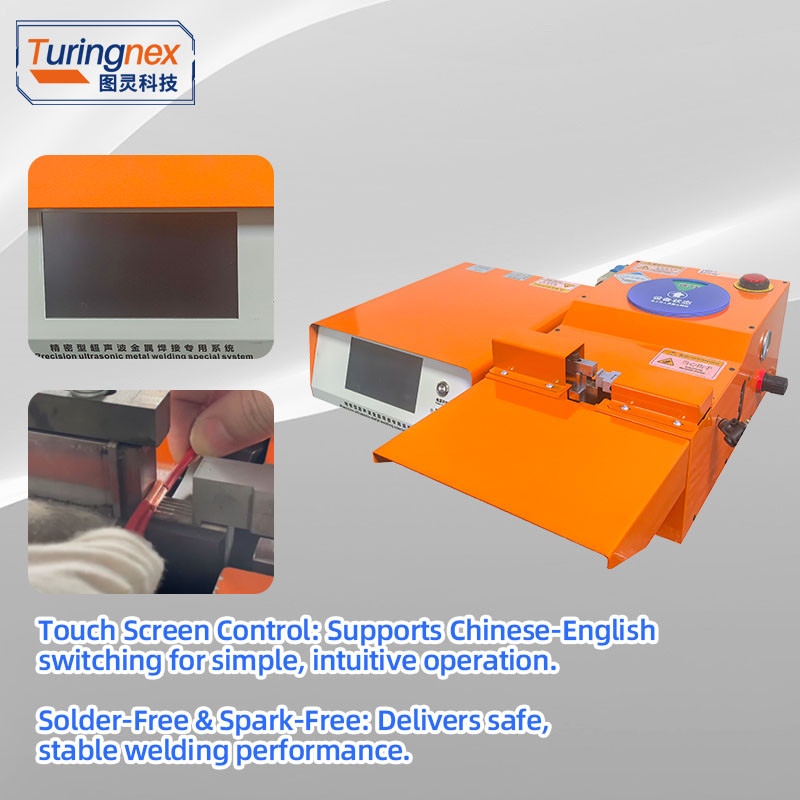

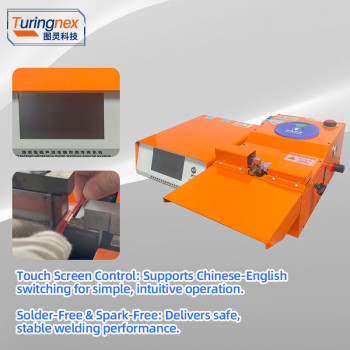

TR-CS02 Ultrasonic Wire Harness Welding Machine
Detailed
TR-CS02 Ultrasonic Wire Harness Welding Machine
Equipment Name：TR-CS02 Ultrasonic Wire Harness Welding Machine
Power Supply Voltage：AC220V 50/60Hz
Power：2kW~6kW
Operating Frequency：20kHz
Control Method：7-inch High-Definition Touch Screen
Bracket Dimensions：490x370x200mm / 490x420x240mm
System Dimensions：380x340x150mm
Machine Weight：Approx. 50kg
Welding Range：
2kW: Standard wire 0.5mm²~8mm²;
3kW: Standard wire 1.0mm²~12mm²;
4kW: Standard wire 2.0mm²~22mm²;
5kW: Standard wire 2.0mm²~30mm²;
6kW: Standard wire 2.0mm²~50mm²。
Functional Features
1.Digital circuit control, supporting time mode and amplitude modulation mode, with adjustable pressure holding time and amplitude.
2.Equipped with automatic frequency tracking and intelligent protection functions, can realize vibration shedding of welded workpieces, and supports welding record query.
3.Automatic frequency tracking technology, truly fully automatic frequency tracking, no frequency adjustment required when replacing welding heads or during welding process.
4.Dynamic indication of welding current.
5.Manual adjustment of frequency offset and overcurrent protection available.
6.Precision linear guide rails ensure smooth operation of the equipment and optimal welding accuracy.
7.Stable amplitude output of power cord during voltage fluctuations.
8.Short welding time and high efficiency.
9.High electrical conductivity and strength after welding, with zero resistance.
10.No soldering materials required, spark-free, safe welding, and stable welding process.
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
