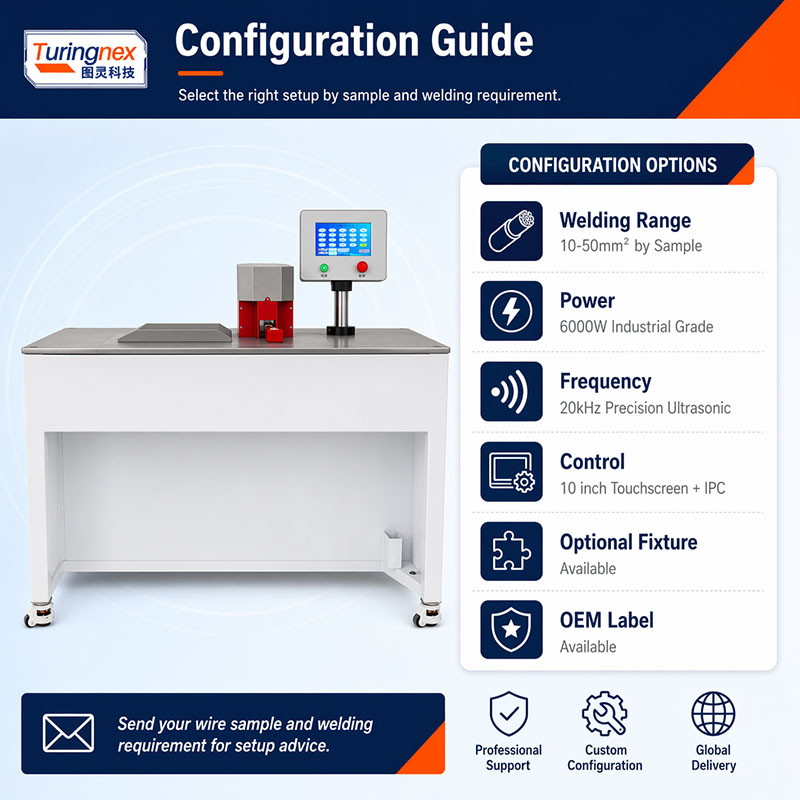

TR-206Z Desktop Ultrasonic Wire Harness Welding Machine
TR-206Z Desktop Ultrasonic Wire Harness Welding MachineTR-206Z Desktop Ultrasonic Wire Harness Welding MachineTR-206Z Desktop Ultrasonic Wire Harness Welding MachineTR-206Z Desktop Ultrasonic Wire Harness Welding MachineTR-206Z Desktop Ultrasonic Wire Harness Welding Machine

TR-206Z Desktop Ultrasonic Wire Harness Welding Machine

  • group nameWelding Machine

  • Min Order1 piece

  • brand nameTuring

  • modelTR-206Z

  • payment methodWestern Union, MoneyGram, T/T

  • update timeFri, 28 Aug 2026 07:04:34 GMT

contact supplier

Paramtents

  • Power 6000W

  • Welding Range 10-50mm²

  • Dimensions & Weight 1000*600*1080mm，128kg

  • Ultrasonic Transducer 20kHz/6KW Transducer

Packging & Delivery

  • Min Order1 piece

Briefing

TR-206Z Desktop Ultrasonic Wire Harness Welding Machine

Detailed

TR-206Z Desktop Ultrasonic Wire Harness Welding Machine
Product Highlights
1. High power with wide application range: Equipped with 6000W high power, it can weld various wire harnesses including copper wires, copper-aluminum wires, enameled wires ranging from 10 to 50mm², delivering firm and reliable welding results.
2. Intelligent and stable welding performance: Adopts automatic frequency tracking and constant amplitude technology with adjustable amplitude from 10% to 100%. It supports secondary ultrasonic welding and segmented amplitude control to avoid cold solder joints, wrong welding and empty welding. 3. Efficient and user-friendly operation: Controlled by a 10-inch touch screen industrial PLC, it enables one-click parameter calling without extra debugging. The high-precision automatic motion system ensures fast welding speed.
4. Durable and easy maintenance: Key wearing parts have a service life of over 80,000 to 100,000 times and support factory repair. The machine frame is made of high-strength anti-high-frequency materials with a service life of more than 15 years.
5. Complete equipment functions: Built-in compressed air cooling system and real-time welding data monitoring. The desktop structure saves space and ensures safe operation.
6. Fast after-sales response: In-stock new machines can be delivered within 3 days, and equipment repairs are completed within 2 days. VIP customers receive exclusive monthly after-sales follow-up visits for guaranteed service quality.
 Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
Equipment Name
TR-206Z Desktop Ultrasonic Wire Harness Welding Machine
Power
6000W
Size & Weight
1000*600*1080mm，128kg
Welding Range
10-50mm²
Ultrasonic Generator
220V/20Hz/6KW
Ultrasonic Transducer
20kHz/6KW Transducer
Welding Horn
Frequency: 19.85-20.15kHz; Horn width customizable per product requirements
PLC Control Screen
10-inch Touch Screen + Industrial Controller
Electrical Accessories
Circuit breaker, start button, emergency stop switch
Pneumatic Components
Solenoid proportional valve, air cylinder, throttle valve
Mechanical Parts
Linear guide, linear bearing
Software
Independently Developed
High-Frequency Cable
Standard Configuration
Machine Frame Structure
Independently Developed
