TR-2080 Ultrasonic Metal Welding Machine
group nameWelding Machine
-
Min Order1 piece
brand nameTuring
modelTR-2080
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 03 Apr 2026 16:30:36 GMT
Paramtents
Power 3-phase AC380V, 50/60Hz
Application Metal Welding Machine
Ultrasonic Power 8000W
Ultrasonic Frequency 20kHz
Packging & Delivery
Min Order1 piece
Briefing
TR-2080 Ultrasonic Metal Welding Machine
Detailed

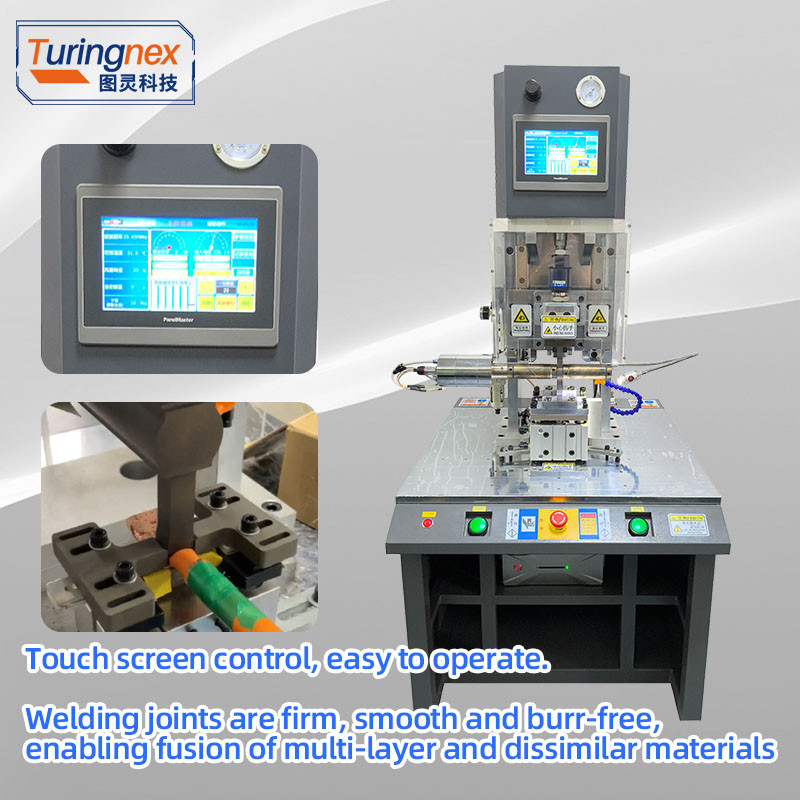

TR-2080 Ultrasonic Metal Welding Machine
Device Name：TR-2080 Ultrasonic Metal Welding Machine
Max Output Power：8000W
Power Voltage：3-phase AC380V, 50/60Hz
Control Mode：Touch Screen
Operating Frequency：20kHz
Language Selection：Chinese/English
Welding Time：0.5s~9.99s
Ambient Humidity：20%~70% Non-condensing
Operating Air Pressure：0.2~0.8MPa
Electrical Box Dimensions：400×280×230cm
Stand Dimensions：900x750x1650cm
Machine Weight：Approx. 110kg
Welding Range：Copper/Aluminum plate thickness: 0.1~2.5mm;
Wire to Copper/Aluminum welding wire: approx. 5~75mm²
Functional Features
1.Digital circuit control, supporting time mode & mold adjustment mode, with adjustable holding time & amplitude.
2.Equipped with automatic frequency tracking & intelligent protection functions, enabling workpiece vibration and welding record inquiry.
3.Data can be saved by inserting a USB flash drive into the USB interface; screen supports Chinese/English switching.
4.Automatic frequency tracking technology enables true fully automatic frequency tracking, eliminating frequency adjustment during welding head replacement and welding process.
5.Welding current status indicator.
6.Manual adjustment of frequency deviation and overcurrent protection available.
7.Precision linear guide rails ensure smooth equipment operation and optimal welding accuracy.
8.Power cord maintains stable amplitude output even under voltage fluctuations.
Application Fields
The ultrasonic metal welding machine is applicable to various metal welding fields, such as the automotive industry, lithium batteries, power batteries, automotive wire harnesses and other auto parts.
Welding Materials: Negative electrode sheets, nickel strips & copper foils, aluminum foils & aluminum strips, aluminum cover plates & nickel-aluminum composite strips, aluminum transfer nickel strips, etc. Welding of soft-pack batteries, multi-layer copper foils & copper-plated nickel strips, copper foils & nickel-plated strips, with firm welding.
Welding Method: Welding heads can be customized with two welding surfaces and four welding surfaces, with one welding point per welding surface.
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
