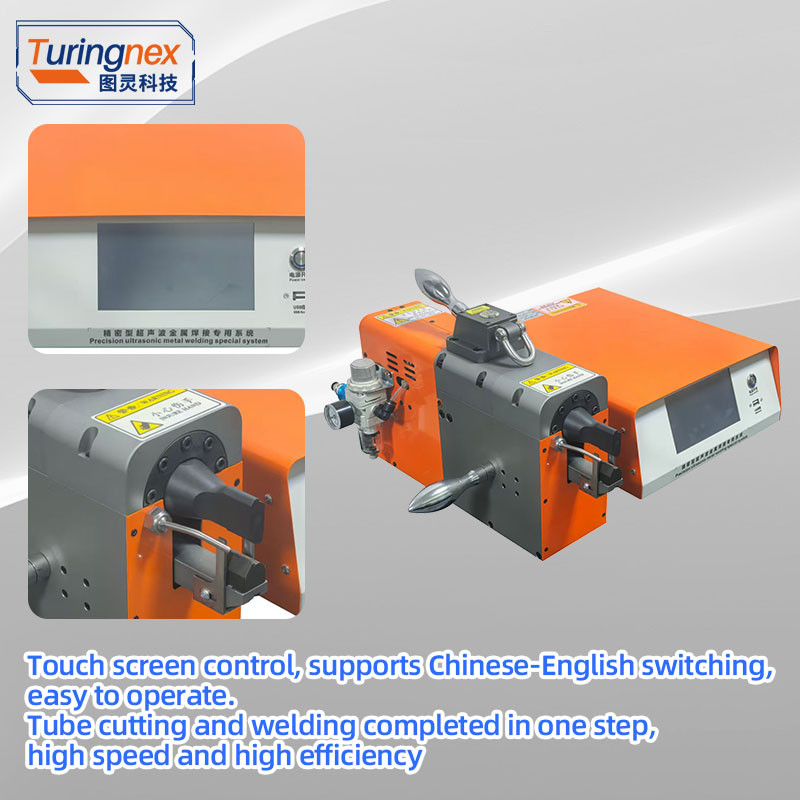

TR-FG01 Ultrasonic Tube Sealing & Welding Machine
group nameWelding Machine
-
Min Order1 piece
brand nameTuring
modelTR-FG01
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 01 Apr 2026 15:58:01 GMT
Paramtents
Power 200V, 50/60Hz
Application Metal Welding Machine
Ultrasonic Power 6000W
Ultrasonic Frequency 20kHz
Packging & Delivery
Min Order1 piece
Briefing
TR-FG01 Ultrasonic Tube Sealing & Welding Machine
Detailed
TR-FG01 Ultrasonic Tube Sealing & Welding Machine
Equipment Name：TR-FG01 Ultrasonic Tube Sealing & Welding Machine
Power Supply Voltage：AC220V 50/60Hz
Power：4kW, 5kW, 6kW
Working Frequency：20kHz
Control Mode：7-inch HD Touch Screen
Stand Size：450(L)×120(W)×300(H)mm
System Size：380(L)×340(W)×150(H)mm
Machine Weight：Approx. 15kg
Welding Range：
4kW: Outer diameter 0~8mm; Inner wall 0.1~0.7mm
5kW: Outer diameter 0~10mm; Inner wall 0.1~1.0mm
6kW: Outer diameter 0~12mm; Inner wall 0.1~1.2mm
Functional Features
1.Digital circuit control, supporting time mode and mode tuning mode; dwell time and amplitude are adjustable.
2.Equipped with automatic frequency tracking and intelligent protection functions; it can realize workpiece shaking off and supports welding record query.
3.Data can be saved via USB flash drive inserted into the USB port; the screen supports Chinese-English switching.
4.Automatic frequency tracking technology for truly fully automatic frequency tracking; no frequency adjustment required when replacing the welding head or during welding.
5.Dynamic indication of welding current.
6.Manual adjustment of frequency offset and overcurrent protection is available.
7.Precision linear guide rails ensure smooth operation and optimal welding accuracy.
8.Stable amplitude output maintained even under voltage fluctuations.
Application Fields
Ultrasonic tube sealing & welding machine can be applied to various metal welding fields, such as air conditioners, refrigerators, ice makers and other industries.
