TR-GY01 NTC Resistance Typesetting & Welding Machine
group nameFully Automatic Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-GY01
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 29 Apr 2026 03:36:34 GMT
Paramtents
Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping,Tin Dipping, Typesetting
Compressed Air 0.5-0.7 MPa
Contact Coco : +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-GY01 NTC Resistance Typesetting & Welding Machine
Detailed

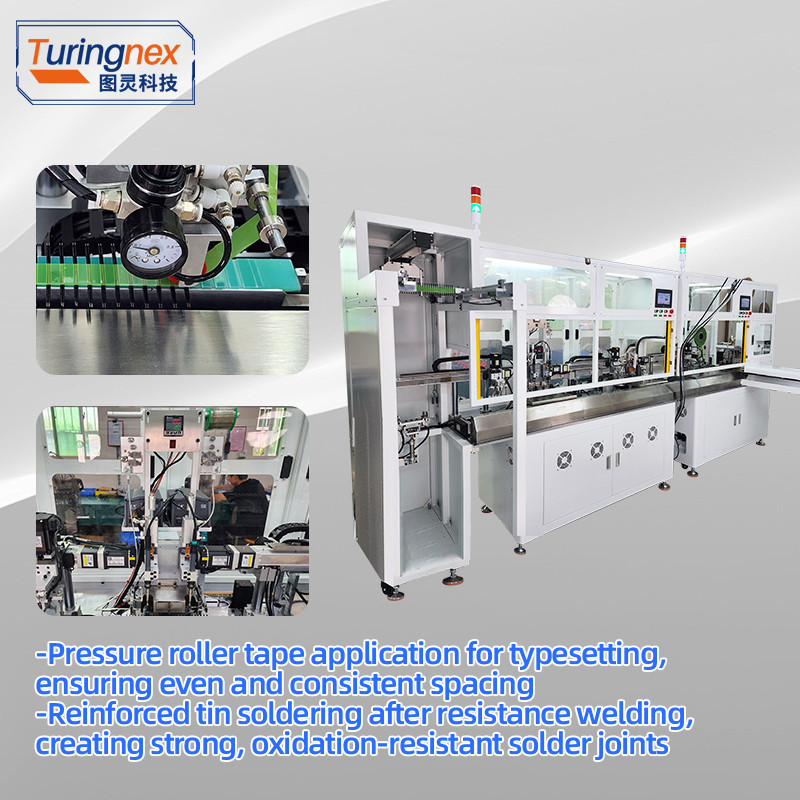

TR-GY01 NTC Resistance Typesetting & Welding Machine
Equipment Name：TR-GY01 NTC Resistance Typesetting & Welding Machine
Dimensions & Weight：395x302x191cm, 1000kg
Working Environment：0-40℃
Applicable Wire：24#, 26# stranded wire
Cutting Length：100~2000mm
Operating Voltage：AC220V / AC380V
Operating Air Pressure：0.5-0.7 MPa
Stripping Length：2.5~4mm (±0.5mm); front-end wire splitting 1-2mm, twisting function (optional)
Typesetting Size：The wire tip extension beyond the edge of the arrangement plate is adjustable from 15 to 30mm (via parameter settings).
Wire Feeding Mode：3 feeding rollers, simultaneous cutting & stripping, 3 wires per cycle (customizable)
Production Efficiency：1500-1800PCS/H (at 500mm wire length)
Equipment Overview
This equipment is a dedicated mechanical device for the production and processing of wire harnesses, widely used in modern industrial production, especially in the electronics industry. Its main functions include wire harness cutting, stripping, terminal crimping, CCD inspection, flux/tin dipping, typesetting, tape application, and black head welding. It greatly improves production efficiency and quality while reducing labor costs.
Equipment Features
1.Dual Welding Process: Combines resistance welding and tin soldering, ensuring strong welds with anti-oxidation performance.
2.Customized Design: Tailored to meet specific production process requirements.
3.High Efficiency: Advanced automation technology completes wire harness processing tasks quickly, significantly boosting productivity.
4.High Precision: Equipped with high-precision measurement and positioning systems, ensuring extreme accuracy in cutting length, stripping depth, and crimping position.
5.Flexibility: Multiple functional modes can be adjusted to adapt to various specifications and types of wire harness processing tasks.
6.Reliability: Rigorous quality control and durability testing ensure stable performance during long-term operation.
7.Modular Structure: Facilitates easy maintenance, upgrades, and expansion.
8.Safety: Equipped with multiple safety protection mechanisms, complying with industry safety standards.
Process Flow
Pre-stripping → Flux & Tin Dipping → Post-stripping → Flux & Tin Dipping → Typesetting → Tape Application → Black Head Resistance Welding → Black Head Soldering → Finished Product Output & Arrangement
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
