TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function
TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking FunctionTR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking FunctionTR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking FunctionTR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking FunctionTR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

  • group nameFully‑automatic welding & housing‑inserting machine

  • Min Order1 piece

  • brand nameTuring

  • modelTR-8030YJP

  • payment methodWestern Union, MoneyGram, T/T

  • update timeSat, 22 Aug 2026 06:48:28 GMT

contact supplier

Paramtents

  • Stripping range 1-30 sq. ft.

  • Catheter Diameter Φ 16

  • Cutting length 1mm-99999.99mm

  • Production Capacity 500 pcs/hour

Packging & Delivery

  • Min Order1 piece

Briefing

TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function

Detailed

TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function
Product Highlights
1.All‑in‑one design with integrated marking function
Built‑in marking supports spot and continuous printing for numbers, letters and Chinese characters. Cable marking is finished during processing, eliminating separate post‑marking procedures.

2.Wide processing range
Compatible with wires & cables of 1‑30mm², maximum wire passing diameter Φ16. Processes wires, cables, PVC and other cables; custom service available for special cables.

3.High‑precision & flexible dimension setting
Cutting tolerance within 0.002*L; cutting length ranges from 1mm to 99999.99mm. Adjustable full‑strip and half‑strip lengths for both front and rear ends to meet diverse stripping requirements.

4.Belt‑driven wire feeding without cable damage
Belt‑type wire feeding leaves no indentations or scratches on cables and protects cable surface integrity.

5.High‑quality core components
Equipped with imported high‑speed steel cutters, together with well‑known brand parts including HIWIN linear guides, FESTO solenoid valves and DELTA switching power supplies for stable and durable operation.

6.Servo & stepper motor drive system
Adopts silent hybrid stepper motors and servo tool post, with a 7‑inch true‑color touch screen for easy operation. Productivity reaches up to 500PCS per hour.
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
 Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

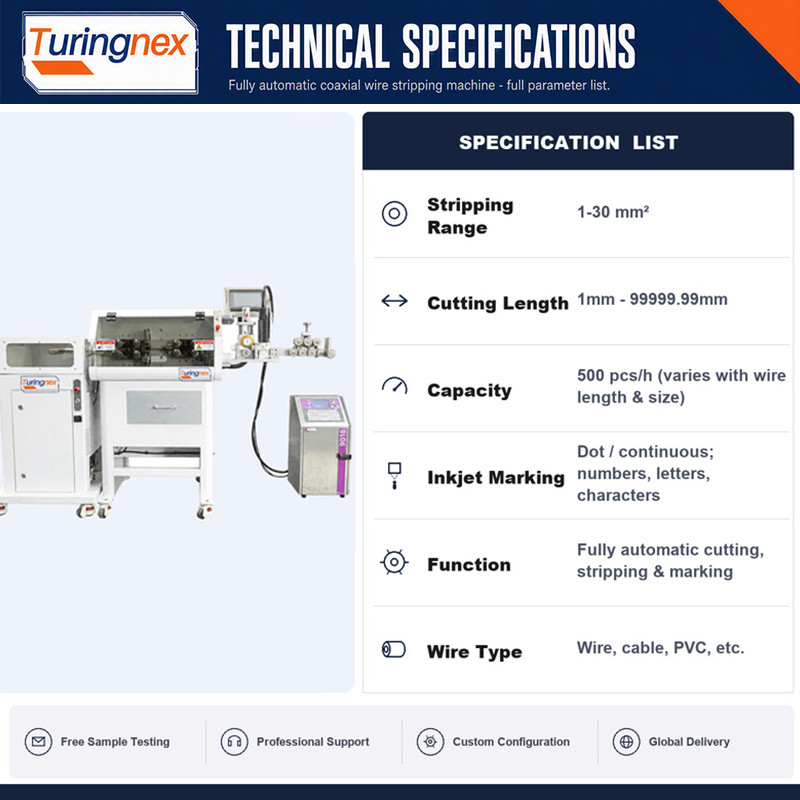

Equipment Name
TR-8030YJP 30mm² Computer‑Controlled Wire Stripping Machine with Marking Function
Applicable wires
New energy cable, automobile power distribution box large square cable, BV/BVR/PVC wire, etc.
Functionality
Wire, cable, fully automatic cutting and stripping with coding device
Strip length
Front end full strip 1-200mm, front end half strip 1-500mm
Rear end full strip 1-80mm, Rear end half strip 1-200mm
Catheter Diameter
Φ 16
Cutting length
1mm-99999.99mm
Stripping range
1-30 sq. ft.
Production capacity
500 pcs/hour depending on the length and size of the wire.
Cutting Tolerance
Support spot spraying, continuous spraying, can spray numbers, English, Chinese characters, etc.
Cutting tool materials
High quality imported high speed steel
Driving method
silent hybrid stepper motor, servo tool holder
Wire feeding method
Belt feeding, no embossed marks and scratches on the cable
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical. We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
