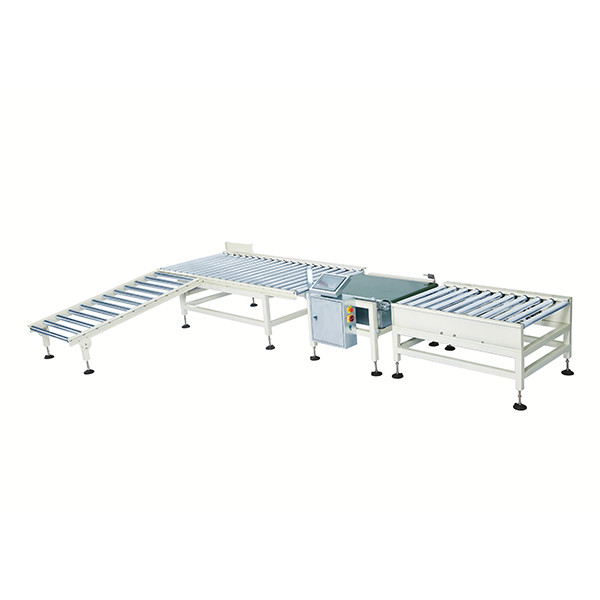

Hight quality checkweigher machine for automation
group nameLarge range(Weight rang:10g-100KG)
-
Min Order1 set
brand nameDADI
modelDCL
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash
-
update timeTue, 30 Nov 2021 15:45:12 GMT
Paramtents
Weight checking range 0.1-10KG
Weight checking accuracy about1g
Resolution 0.5g or 1 g
Packging & Delivery
Size100cm x 50cm x 80cm
Weight60.00kg / set
Min Order1 set
Briefing
The checkweigher can eliminate unqualified products to ensure that the weight of the products delivered meets the requirements.
Detailed
Parameter
DCM series checkweigher machine
|
Product model |
DCL6040L10 |
DCM8040L15 |
DCM10040L20 |
|
Resolution |
1g |
1g |
1g |
|
Weight checking range |
0.05-10kg |
0.05-15kg |
0.05-20kg |
|
Weight checking ac curacy |
±3-5g |
±5-10g |
±8-15g |
Belt speed | 5-80m/min | ||
Standardtechnical
parameters | Power supply: standard single-phase AC200-240V, 50/60HZ, 0.4KW, optional three-phase AC380V, 50/60HZ,
0.4KW
Air Source: Dry 0.5-0.8 MPa (5-8 bar)
Temperature: Use temperature: 0 40 Storage temperature: - 20 60.
Humidity: 10-90% RH, no condensation
Protection Level: IP30, IP54, IP65 are optional
Noise: <75db
Machine weight: 60kg Working Height: 700± 50mm (confirmed when ordering other heights) | ||
This is a title
In addition to providing the weight signal of the product, the feedback control automatic checkweigher can also output a feedback signal to the packaging filling equipment according to the difference between the average weight and the nominal weight, and automatically adjust the average weight to make the sum set. The weight is consistent, thereby reducing production costs.
