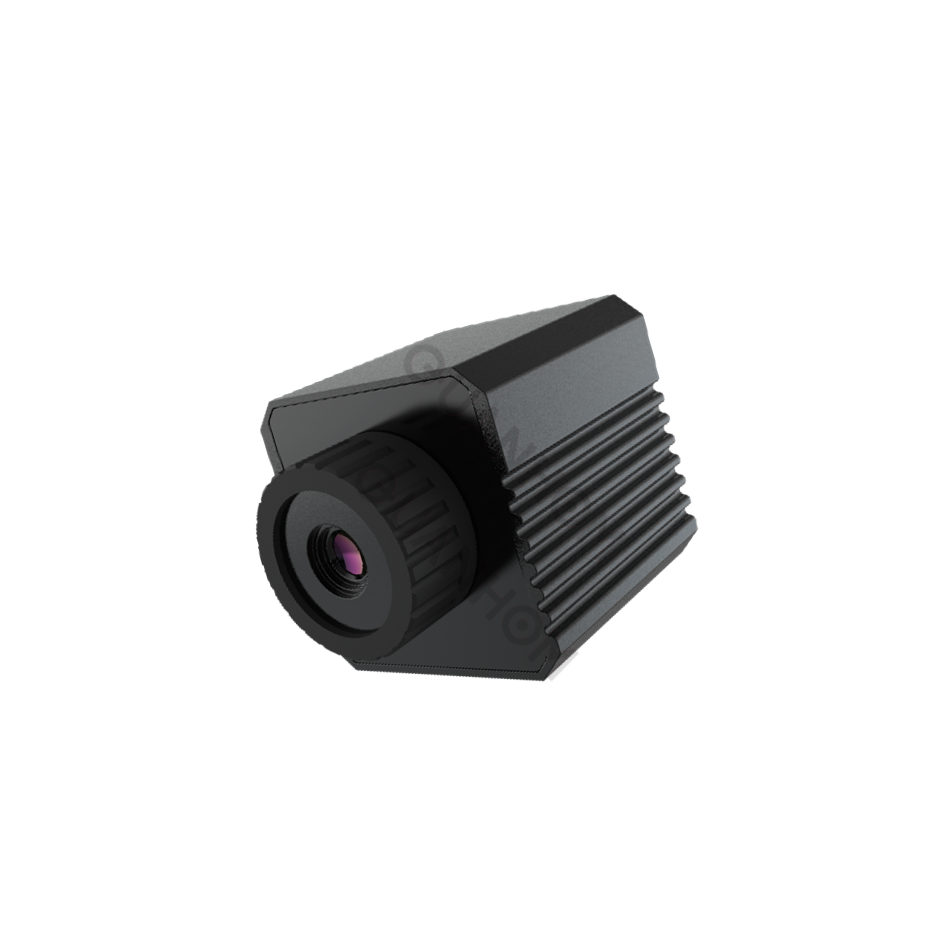

Infrared Thermal Temperature Camera 384x288

  • group nameInfrared Thermal Camera

  • Min Order1 piece

  • brand nameQuanhom Optronics

  • modelTTC738

  • payment methodT/T, D/P D/A, PayPal, Westem Union

  • update timeWed, 15 May 2024 17:12:47 GMT

Paramtents

  • Infrared Lens Focal Length 7.6mm

  • Resolution 384*288

  • Temperature measurement range 28-45℃

Packging & Delivery

  • Min Order1 piece

Briefing

Infrared Thermal Temperature Camera 384x288 is designed for thermal imaging body temperature screening.

Detailed

  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications

Thermal Module Parameters

Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
384 × 288
Response Waveband
8 μm to 14 μm
NETD
<70 mK (@30°C), F# = 1.0
Lens (Focal Length)
7.6mm
Field of View
50.0° × 37.1°
F #
F/#1.0
Frame Rate
25 Hz
Temperature Measurement Range
28°C-45°C
Ethernet port
100Mbit/s, network cable length 1m, bending resistance 2 million times
Application Programming  Interface
Support 16/32bit 384*288 pixels temperature data output

System Parameters

Mounting
2-M3 Threaded interface 1/4” - 20 UNC Tripod mount
Power
DC10-30V
Power Consumption
2.3 W
Operating Temperature
From -10°C to +50°C; Humidity: < 95% RH
Ambient Temperature
20 to 35°C
Protection Level
IP66
Shell Material
Aluminum Alloy
Weight
320g
Dimensions
84.9mm x54mm x 54mm
Download document
file name
type
download
PDF
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.

VIDEO
APPLICATIONS
Thermal Imaging Body Temperature Screening
